Xerox 8830 Service Manual

REP 4.1.18 Idler Roll Assembly
Parts List on PL 5.1
WARNING
Switch off the Scanner and disconnect the Power
Cord.
Removal
An Idler Roll Assembly is installed under each rubber roil on the
Document Drive Rolls.
1. Remove the Left Side Panel (REP 4.1.1).
2. (Figure 1): Open the Top Cover and remove the Document Hold-
down Guide.
Lamp Socket
Document Hold-
down Guide
Top Cover
Drive Roll Pulley
(2)
Main Drive Belt

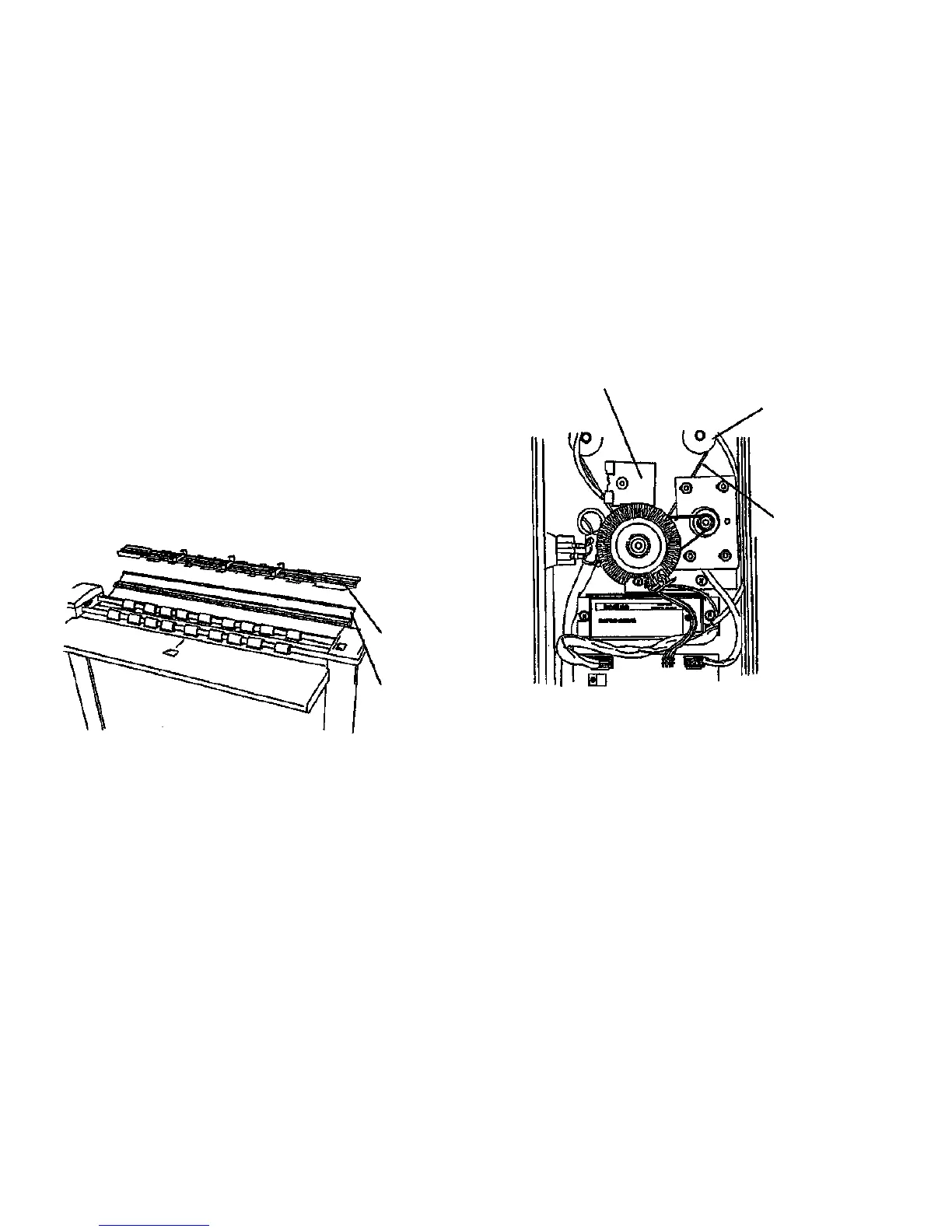

Figure 1. Removing the Document Hold-down Guide
3. (Figure 2): Loosen the 2 screws that hold the Motor Assembly.
4. Remove the Main Drive Belt from the 2 Drive Roil Pulleys.
5. Disconnect the Lamp Socket.
Figure 2. Main Drive Belt and Lamp Socket
7356 SCANNER
4/97
4-33
REP 4.1.17
