REP 9.6 Cartridge Drive Motor

Parts List on PL 9.10

WARNING

Switch off the Main Power Switch. Disconnect the

Power Cord.

NOTE: The art used for this procedure was

developed for previous products and may not match

the 8830 configuration exactly.

Removal

1. Remove the Developer Module (REP 9.5).

2. (Figure 1): Remove the Cartridge Drive Motor.

Remove screws (2) and

Ground wire

3. (Figure 2): Remove the Cartridge Drive Motor

from the Mounting Plate.

Remove the

screws (3)

Remove the

Cartridge Drive

Motor

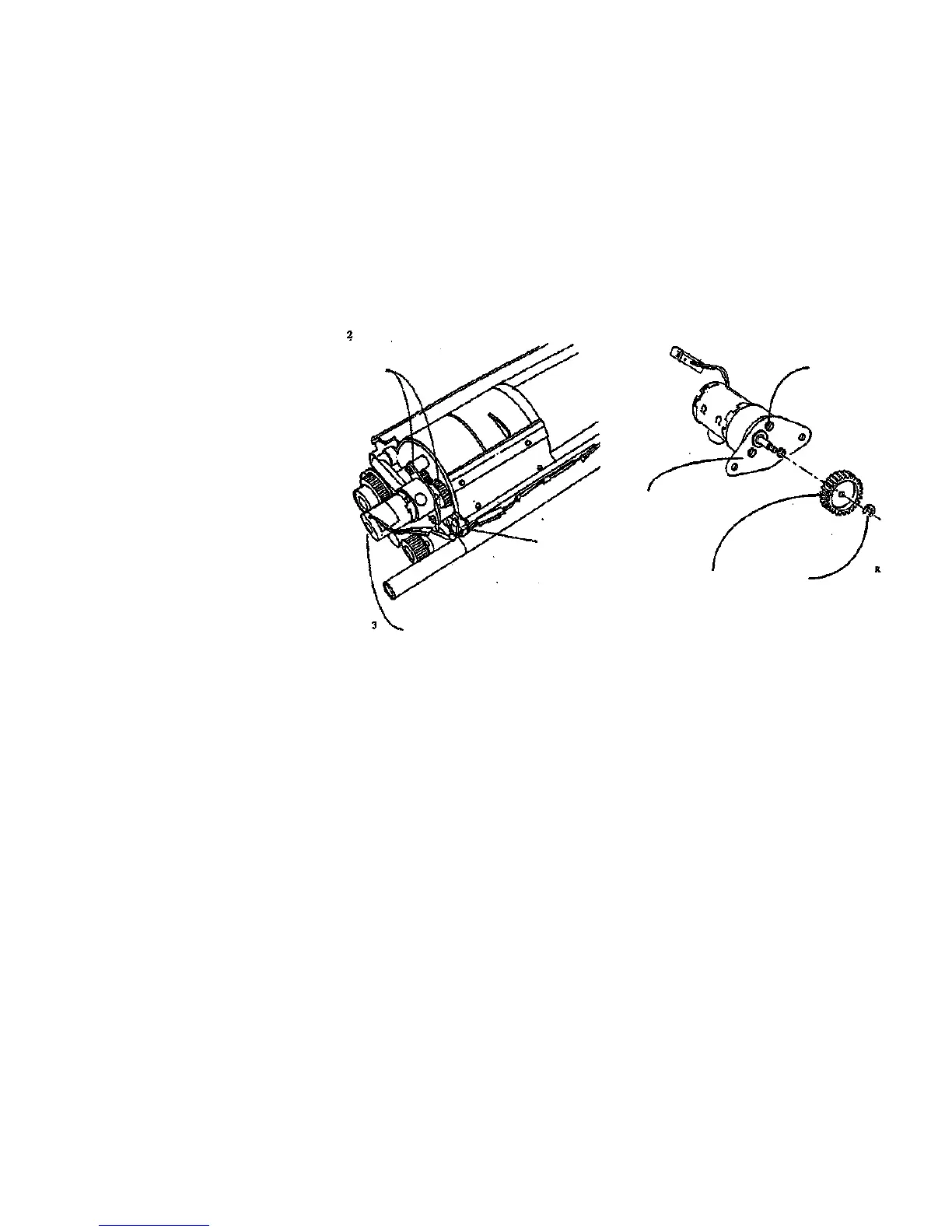

Figure 1. Removing the Cartridge Drive

Motor

Remove the

Mounting Plate

2 I

Remove the Remove the

gear e-Ring

Figure 2. Removing the Cartridge Drive

Motor from the Mounting Plate

1/98

4-57

REP 9.6

Xerox 8830 Service Manual
