REP 8.13 Media Feed Drive Belt

Parts List on PL 8.1

WARNING

Switch off the Main Power Switch. Disconnect the

Power Cord.

Removal

1. Latch the Xerographic Module at the Service

Position (REP 9.2).

2. Remove the Media Transport Assembly (REP

8.1).

3. Remove the Fabric Guide (REP 8.9).

4. Remove the Pressure Plates (REP 8.5).

5. Turn the Media Transport Assembly over.

6. (Figure 1): Remove the Media Feed Drive Belt.

Replacement

1. Ensure that the belt is over the Idler Pulley.

Remove the Media

Feed Drive Belt

Remove the Motor

Assembly

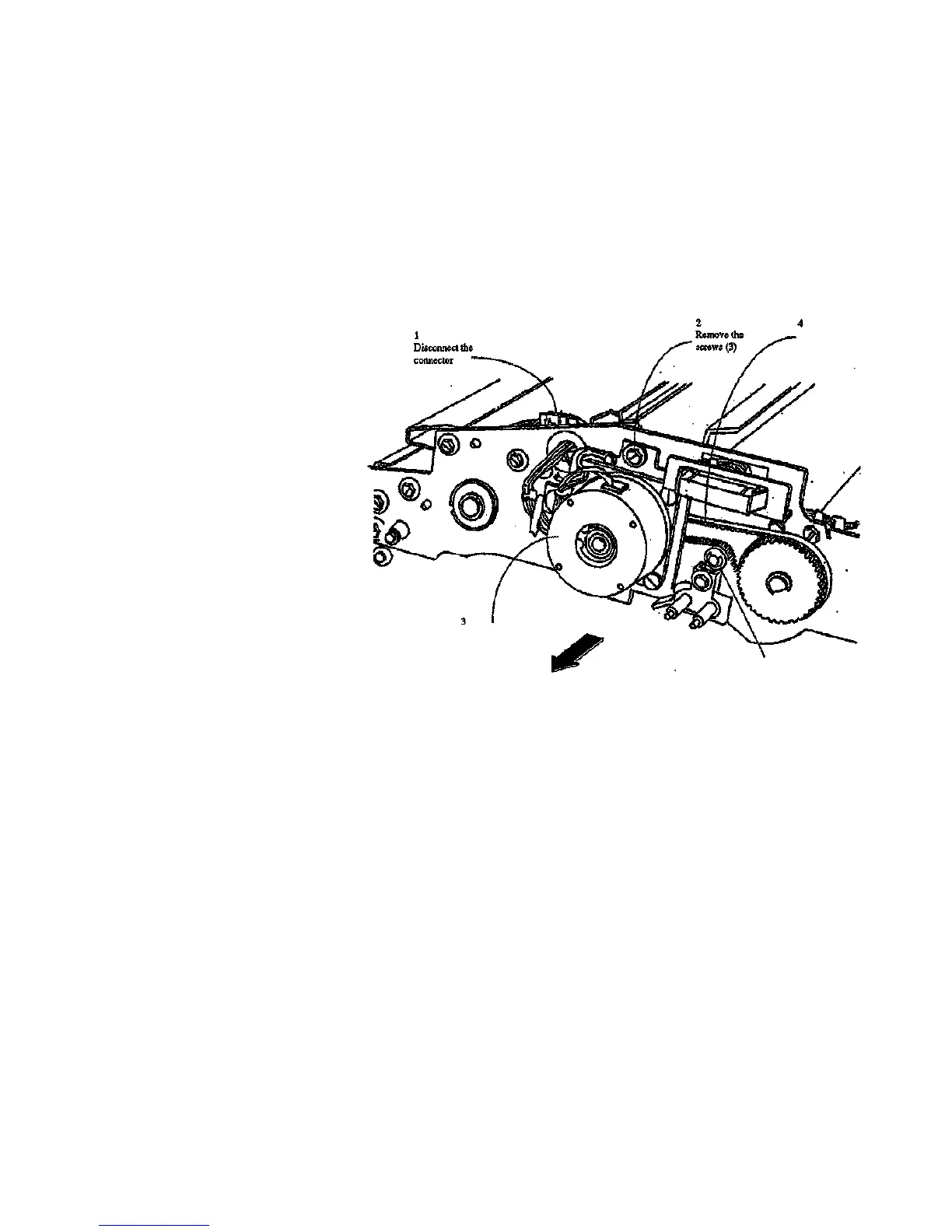

Figure 1. Removing the Media Feed Drive Belt

Idler Pulley

8830

1/98

4-37

REP 8.13

R2448
