3. (Figure 4): Reinstall the springs,
4. Complete the reassembly of the Printer and
perform the following;
a. Fuser Temperature (NVM) (ADJ 10.1)
b. Vertical Magnification (ADJ 8.1)
c. Lead Edge Registration (ADJ 8.2)
d. Cut Length (ADJ 8.3)
6
Reinstall the two springs
(one each end)
Rotate the screw until it
engages the slot
5
Reinstall the two screws
(one each end)
4
Reinstall the
screws (5)
Reinstall the Baffle
Rotate the
Assembly

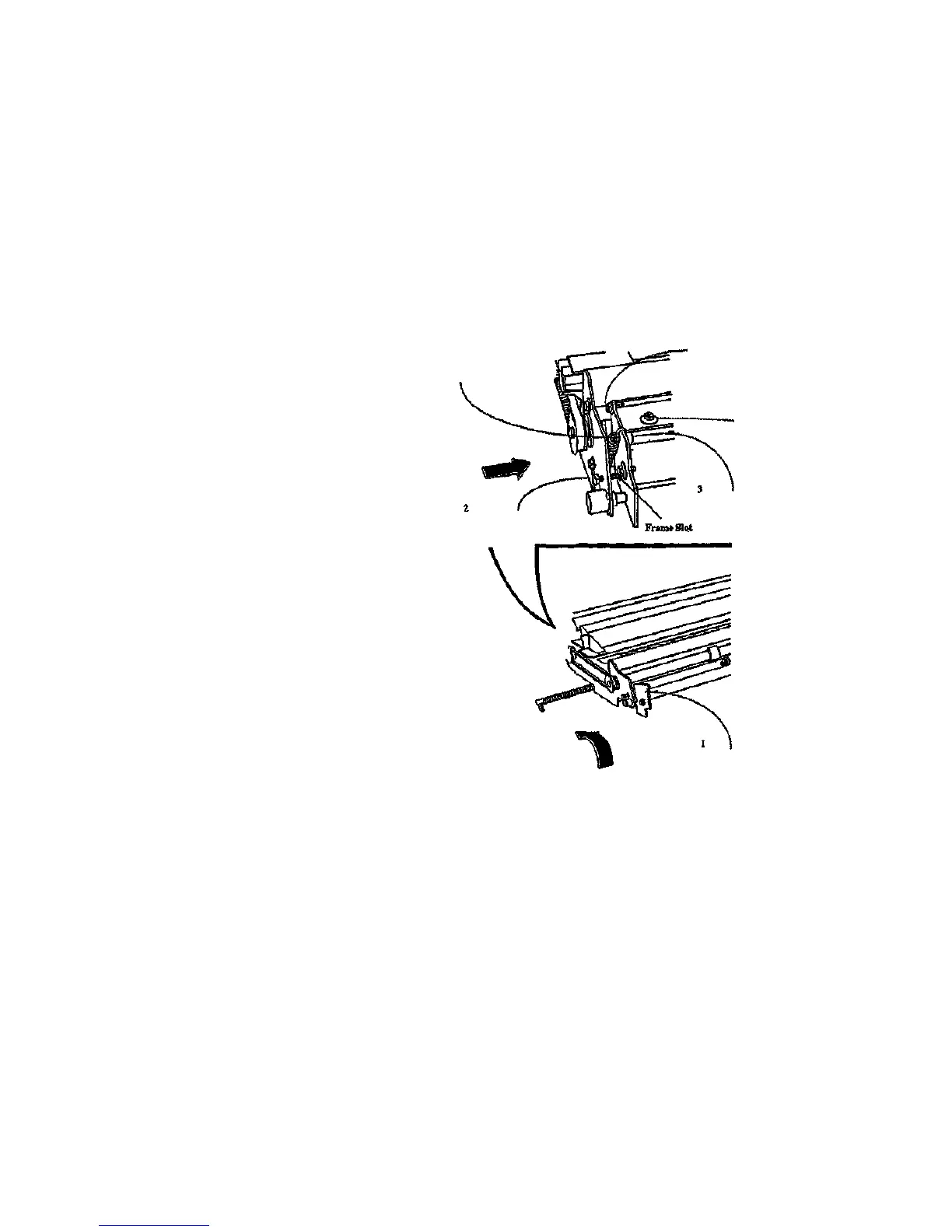

Figure 4. Reinstalling the Springs
REP 8.12
1/98
4-36
8830
R2528
