Xerox 8830 Service Manual

Replacement
1. Reinstall the rolls and retainers onto the shaft.
2. (Figure 3): Reinstall the Registration Pinch Roll
Assembly.
Slot
Reinstall the two E-rings (one
each end)
Bend the spring
and reinstall the
springs into the slots
on the frame (4)
Reinstall the two
bearings (one each
end)
Reinstall the Registration Pinch Roll
Assemblies
R2527

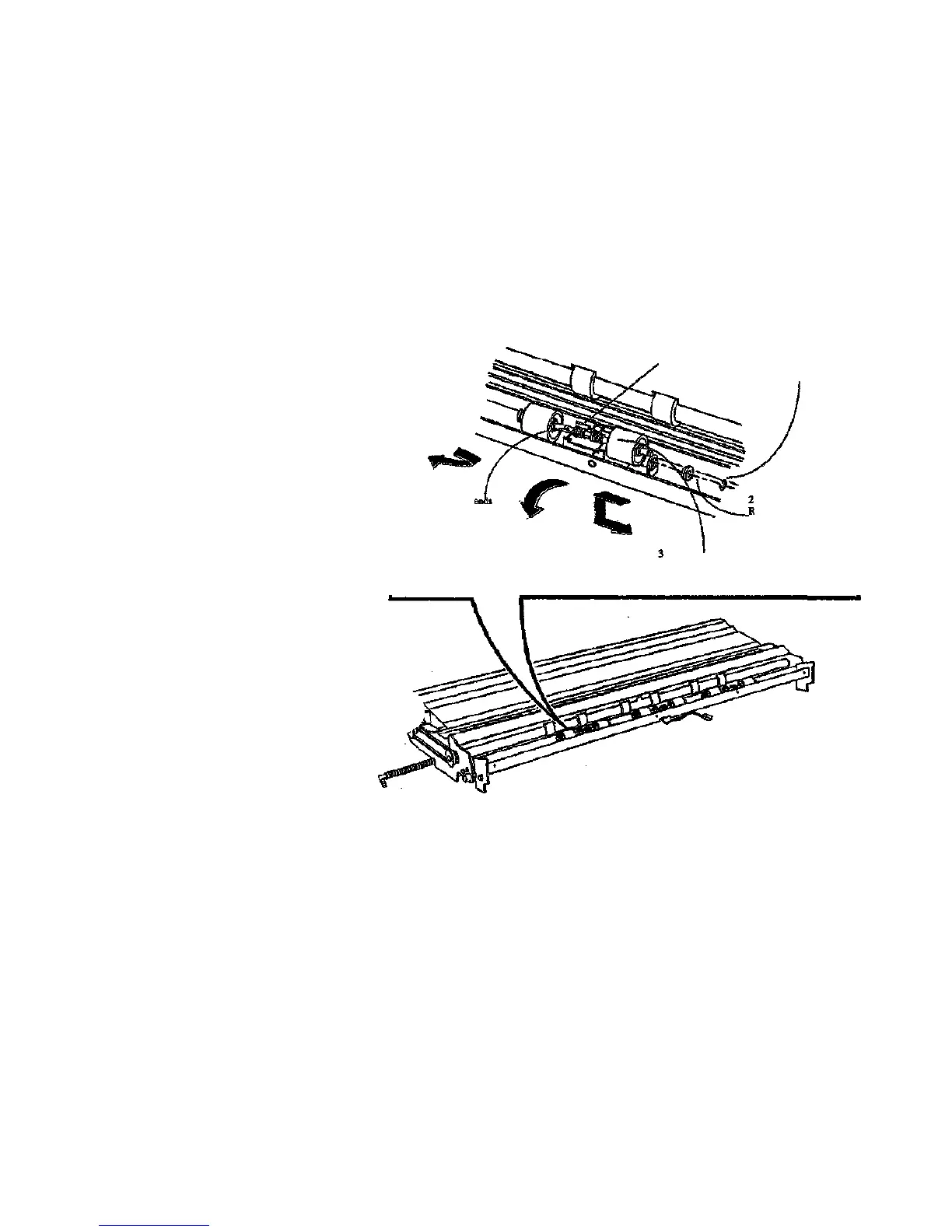

Figure 3. Reinstalling the Registration Pinch Roll Assembly
8830
1/98
4-35
REP 8.12
4
