REP 4.1.11 Forward/Reverse Switch
Parts List on PL 5.2
Removal
WARNING
Switch off the Scanner and disconnect the Power
Cord.
1. Remove the Right Top Cap (REP 4.1.9).

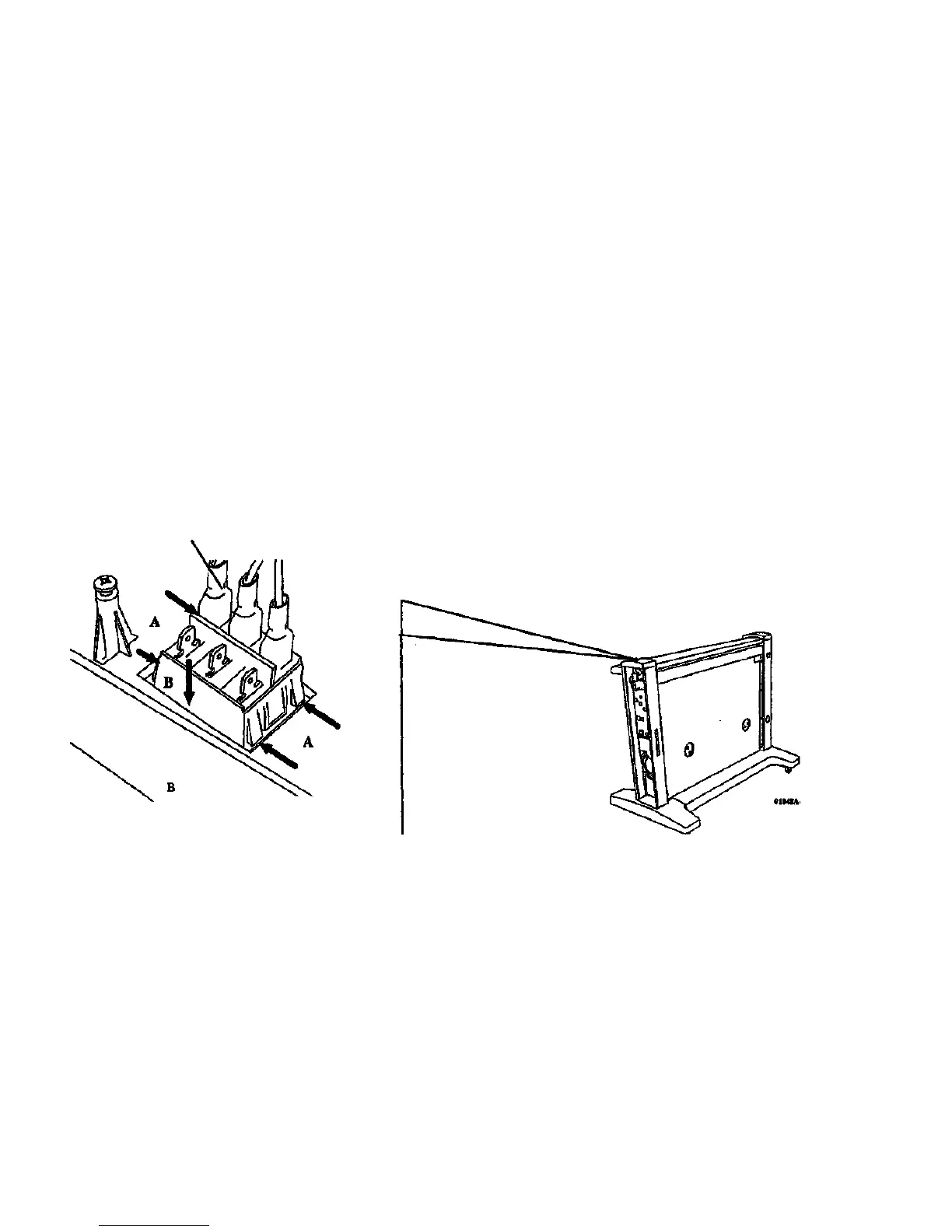

2. (Figure 1): Remove the Forward/Reverse Switch.
Connector
Lug lA
A
Press the
Attachment
tabs inward.
Press the switch
out of the
opening.
7356 SCANNER
4/97
4-17
REP 4.1.11
