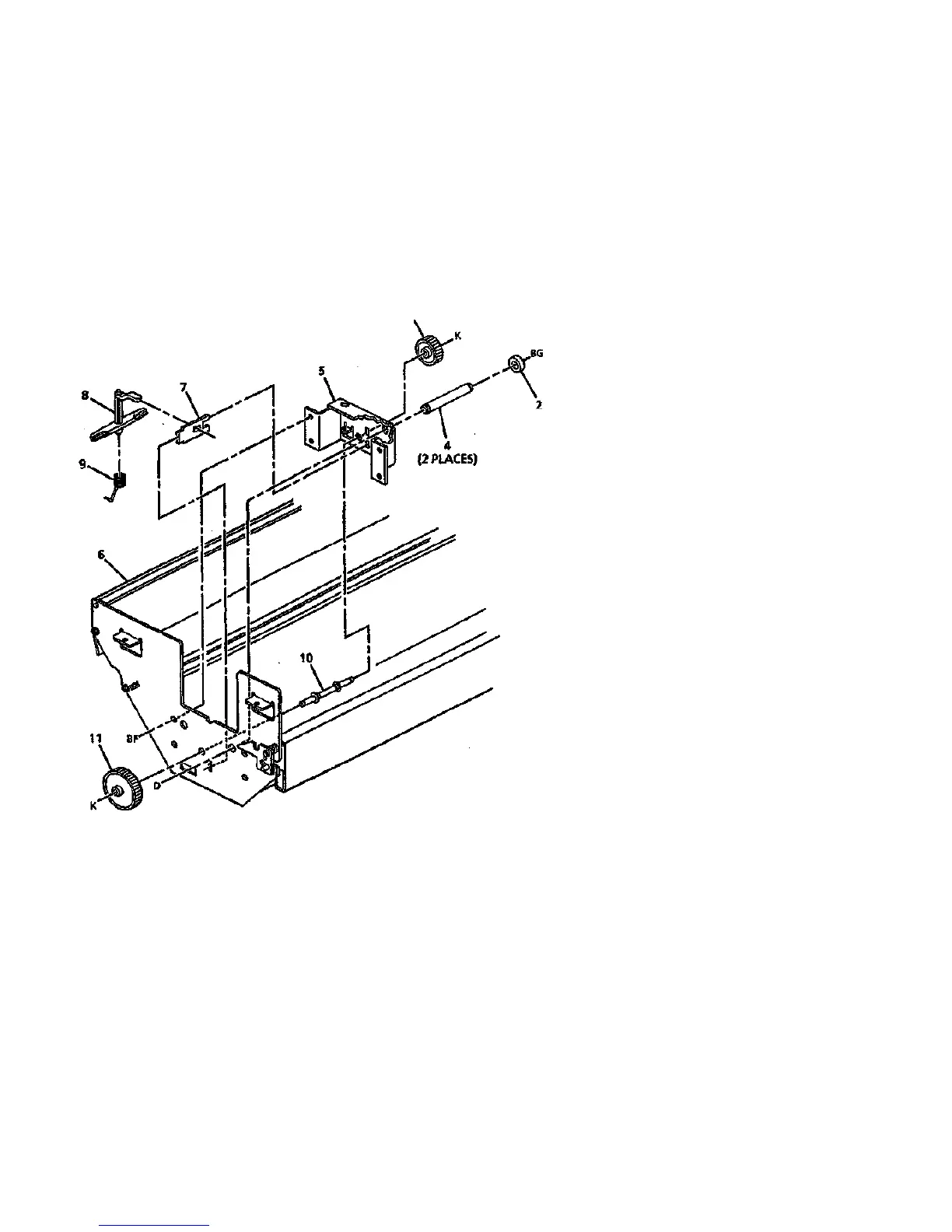

PL 7.3 ROLL SUPPLY DRAWER COMPONENTS (PART 1 OF 4)
3
1(2-11
(2 PLACES)
ITEM
1
2
3
4
5
6
7
8 .
9
10
11
PART
--
22E11540
7E14650
29E14760
—
..
3E17610
9E27340
7E14600
DESCRIPTION
PART OF ROLL SUPPLY
DRAWER ASSEMBLY
(REF: PL7.1 ITEM 3)
SUPPORT ROLLER
REWIND INTERNAL
GEAR (20T) (REP 7.2)
LH SUPPORT PIN
LH CRADLE BRACKET
(P/O ITEM 1)
DRAWER FRAME
(P/O ITEM 1)
LH ROLL LOCK
(P/O ITEM 1)
ROLL LOCK
ROLL LOCK SPRING
REWIND SHAFT
{P/0 ITEM 1)
REWIND GEAR (32T)
(REP 7.2)
0000009A-RNO
PARTS LIST SECTION
PL 7.3
2/97
5-10 8830
