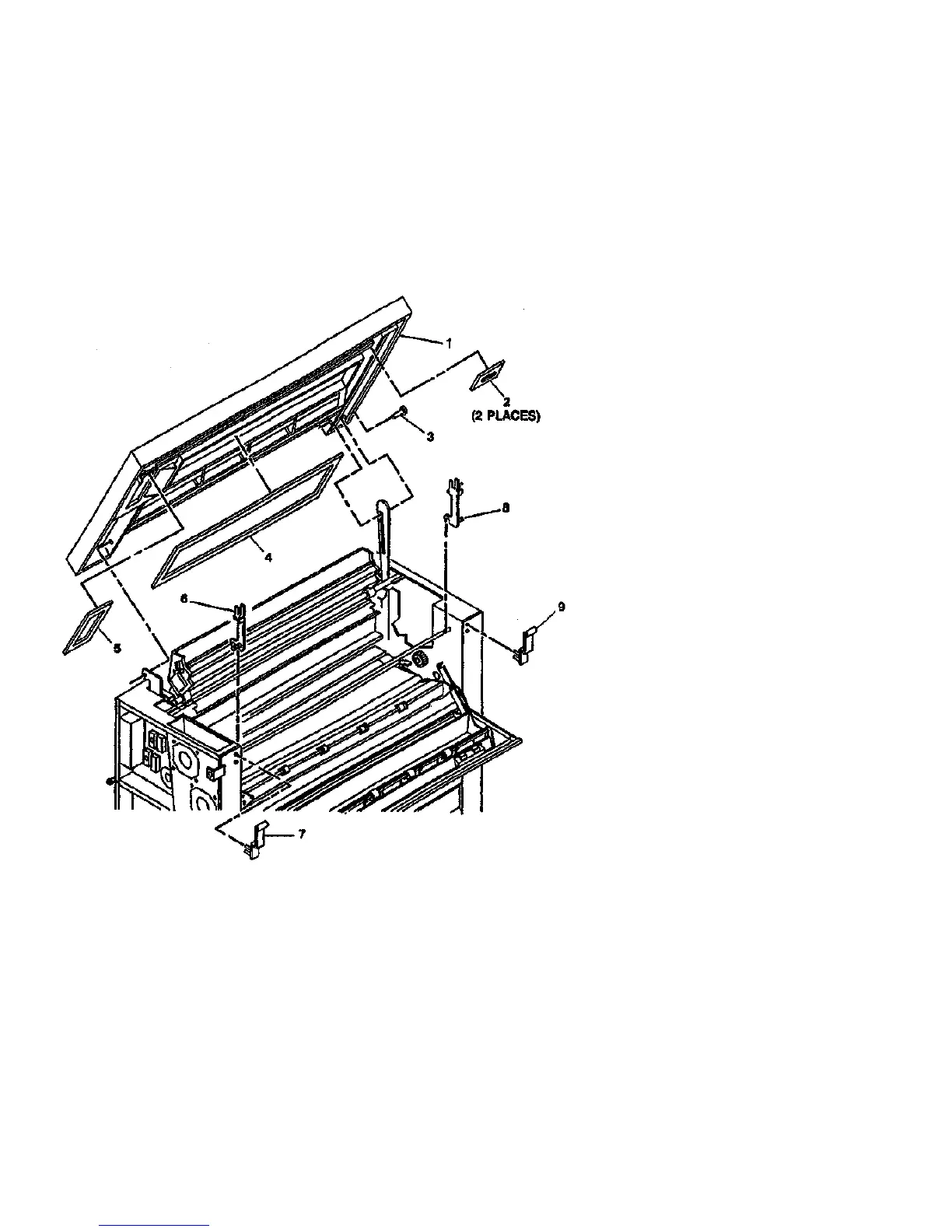

PL 14.4 TOP COVER AND CATCH TRAY BRACKETS
EM
1
2
3
4
5
6
7
a
9
PART
48K45052
55E38100
29E23670
35E37240
35E41150
30K57191
30K57830
30K57181
30K57900
DESCRIPTION
TOP COVER
SHIELDING PAO
PIN
GASKET
GASKET
RH SERVICE BRACKET
RH CATCH TRAY BRACKET
LH SERVICE BRACKET
LH CATCH TRAY BRACKET
0000037B RNO
8830
9/97
5-39
PARTS LIST SECTION
PL 14.4
