Xerox 8830 Service Manual

Connecting the Scanner to the ES8150 System
With Tag 9 or to the Xerox Productivity Centre
Do the following steps to connect the Scanner to the Xerox Productivity
System or the ES8150 SIM with Tag 9:
1. Upgrade the software for the SIM and the VME to the current
version, if not already installed. Refer to the installation instructions
supplied with the software.
Caution
Ensure that the existing system is operating correctly
before installing any software upgrade. Also, ensure that
there will be no interruptions of power to the SIM during
the software installation process. Unrecoverable errors
may otherwise occur, requiring the replacement of the
SCAN PWB in the VME.
2. Connect the Scanner Power Cord:
• to the Scanner Power Jack, if the main power is 110-140 VAC
(NACO)
• to an external main power outlet, if the main power is 220-240
VAC (EO).
3.
(Figure 6-25): Reconnect the Scanner directly to the control
computer.
SCSI Port
Control
Computer
Scanner
Power Jack
SCAN
PWB
VME
C
Connect the
Scanner SCSI
table to the
SCSI port on
the computer
B
Disconnect the
VME SCSI
Cable
Turbo
PWB
A
Remove the
Rear Cover of
the SIM.

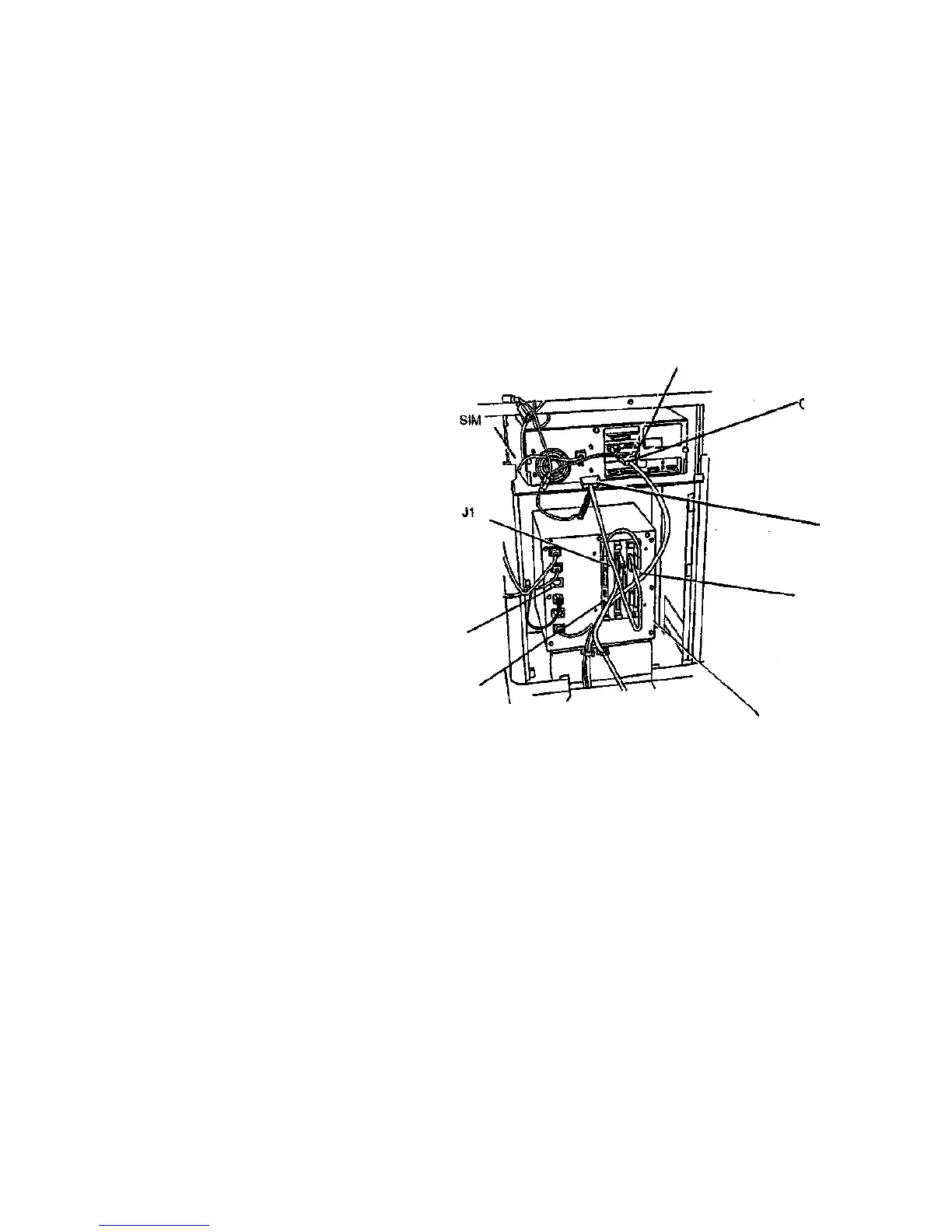

Figure 6-25. Connecting the Scanner to the SIM
Scanner Installation
4/97
6-24
