ADJ 8.1 Vertical Magnification
Purpose
The purpose is to calibrate the printer to produce
the correct length images for each media type.
Prerequisite
1. Check the Fuser Temperature (NVM) (ADJ
10.1).
Check
1. Enter diagnostics.
2. Enter code [0955] and make one 1200 mm
print of Test Pattern #7.
3. Allow the print to cool for five minutes.
4. (Figure 1): Check that 60 blocks in the paper
feed direction measure 975.4 ± 4.88 mm.

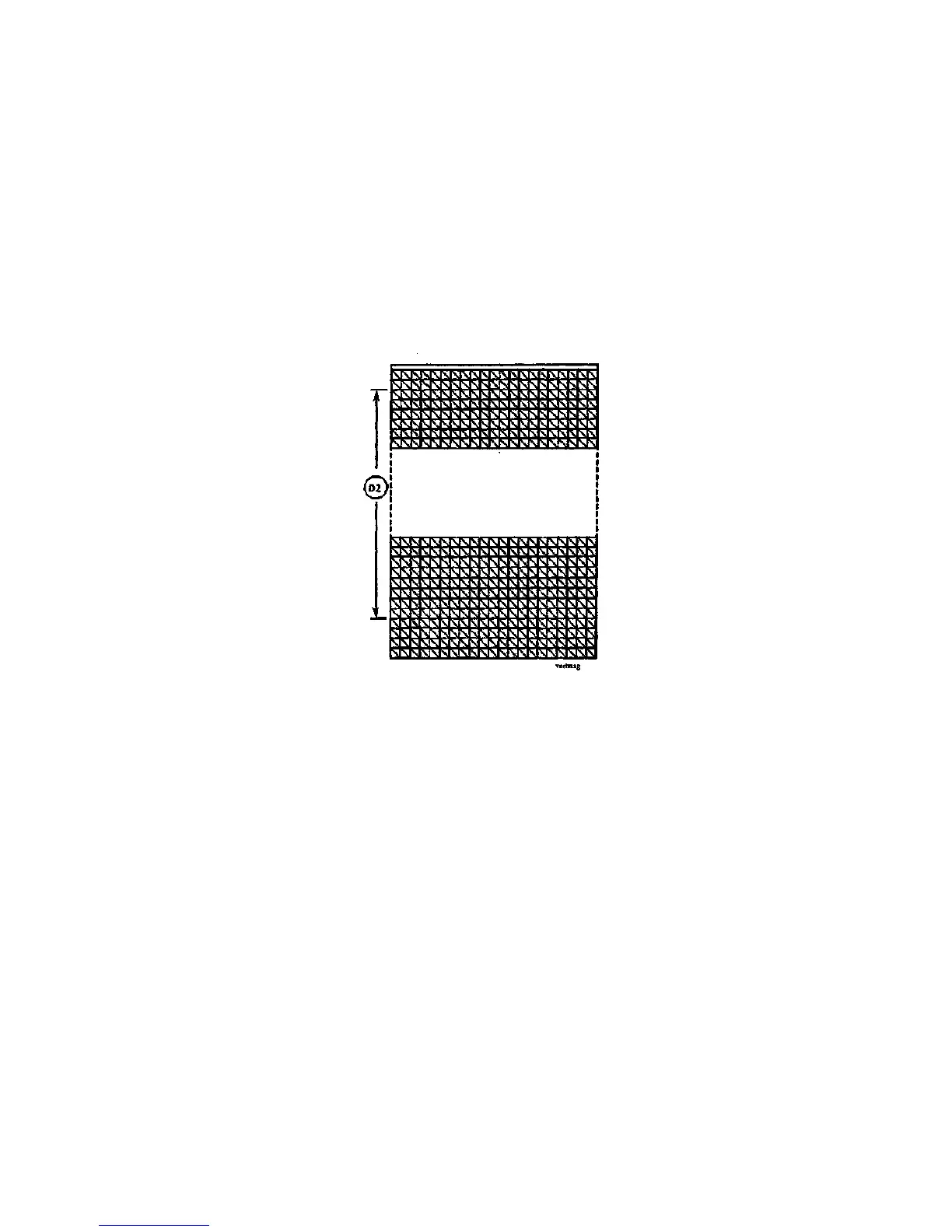

Figure 1. Checking the Vertical
Magnification
Adjustment
1. Enter code [0602] in order to adjust the
Vertical Magnification.
2. Select the type of media. The following
message is displayed. (In this example, bond
paper media has been selected.)
06 02 BOND SCALE ADJUST: XX
RANGE 0-40, NOW XX {ENTER] TO STORE
NOTE: The range of adjustment is 0 to 40. Each
step equals approximately 1 mm.
3. Adjust the Vertical Magnification using the
Previous / Next buttons.
a. Use the Previous button to decrease the
Set Point, which will decrease the Image
Length.
b. Use the Next button to increase the Set
Point, which will increase the Image
Length.
c. Press the Enter button in order to store
the value in NVM.
d. Press the Exit button two times.
4. Repeat the check for all the types of media
used by the customer.
ADJ 8.1
1/98
4-94
8830
