Xerox 8830 - REP 9.9 Transfer; Detack Corotron

REP 9.9 Transfer/Detack
Corotron
Parts List on PL 9.4
WARNING
Switch off the Main Power Switch. Disconnect the
•Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Loosen the screws and open the Rear Cover.
2. (Figure 1): Lower the Media Transport Cover
and remove the Transfer / Detack Corotron.
Replacement
1. Reinstall the Transfer / Detack Corotron against
the bottom of the channel, away from the Heat
Roll.
Remove the
Transfer/Detack
Corotron

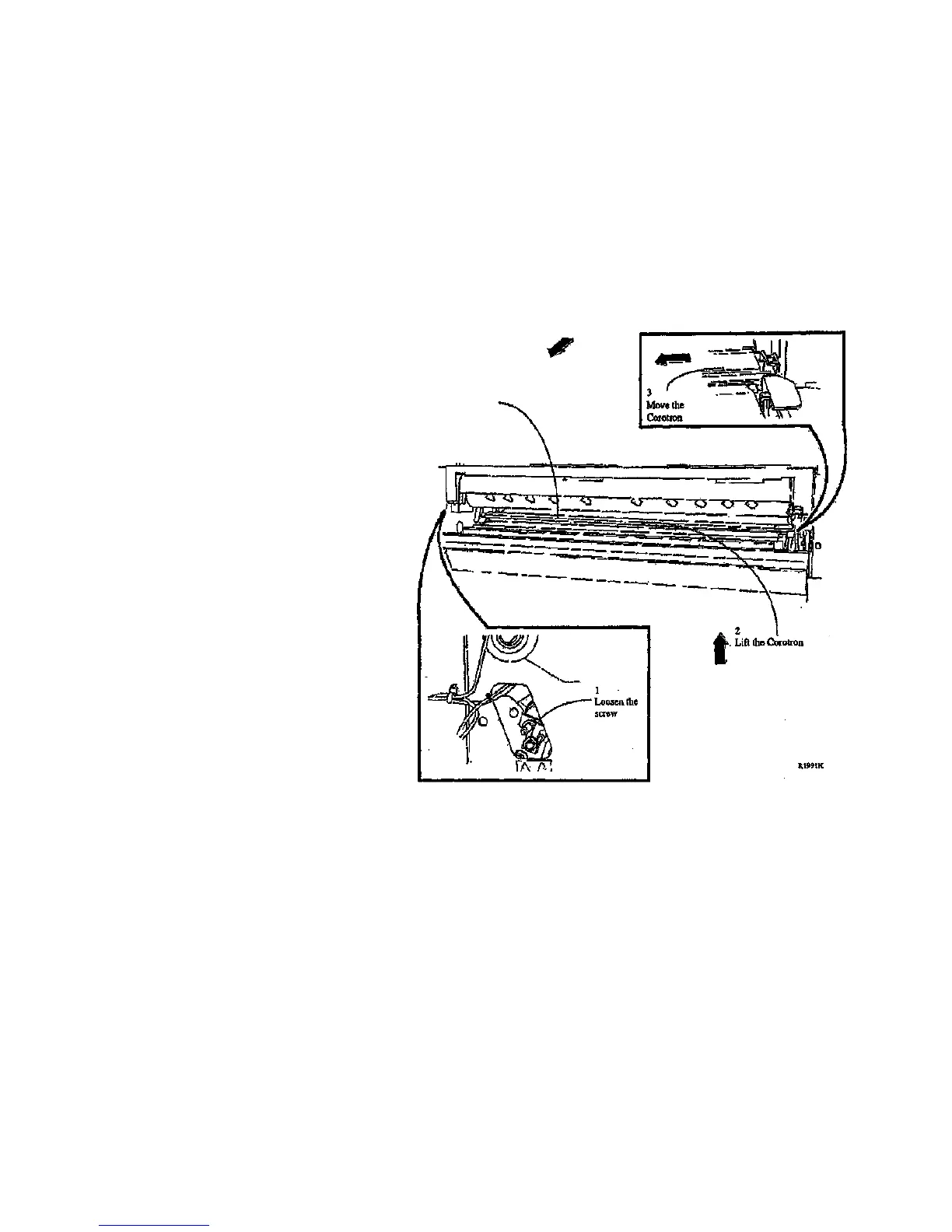

Figure 1. Removing the Transfer / Detack Corotron
REP 9.9
1/98
