Xerox 8830 Service Manual

REP 8.16 Exit Roll
Parts List on PL 8.4
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Latch the Xerographic Module at the Service
Position (REP 9.2).
2. Remove the Media Transport Assembly (REP
8.1).
3. Remove the Media Exit Switch (REP 8.2).

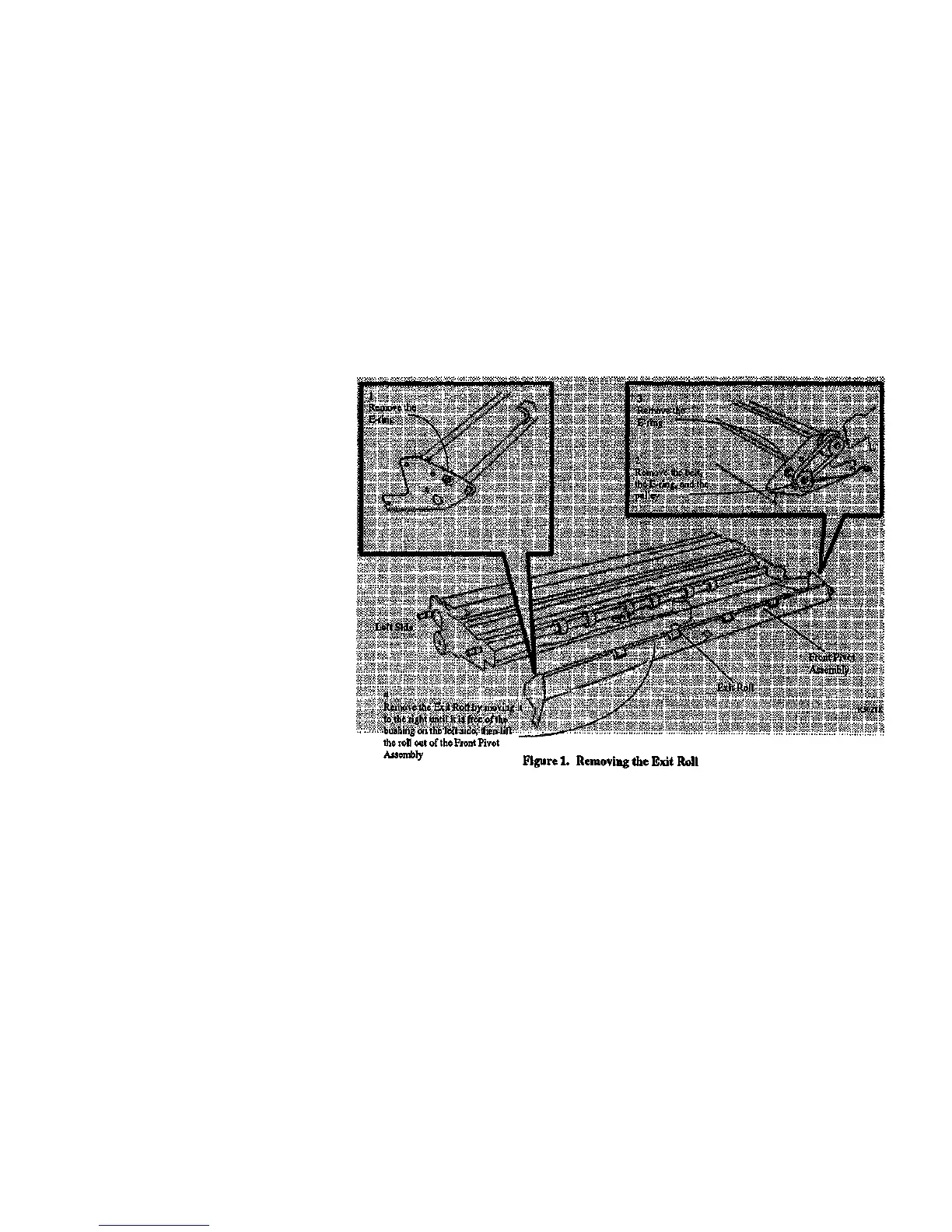

4. (Figure 1): Remove the Exit Roll from the Front
Pivot Assembly.
8830
1/98
4-39
REP 8.16
