Xerox 8830 Service Manual

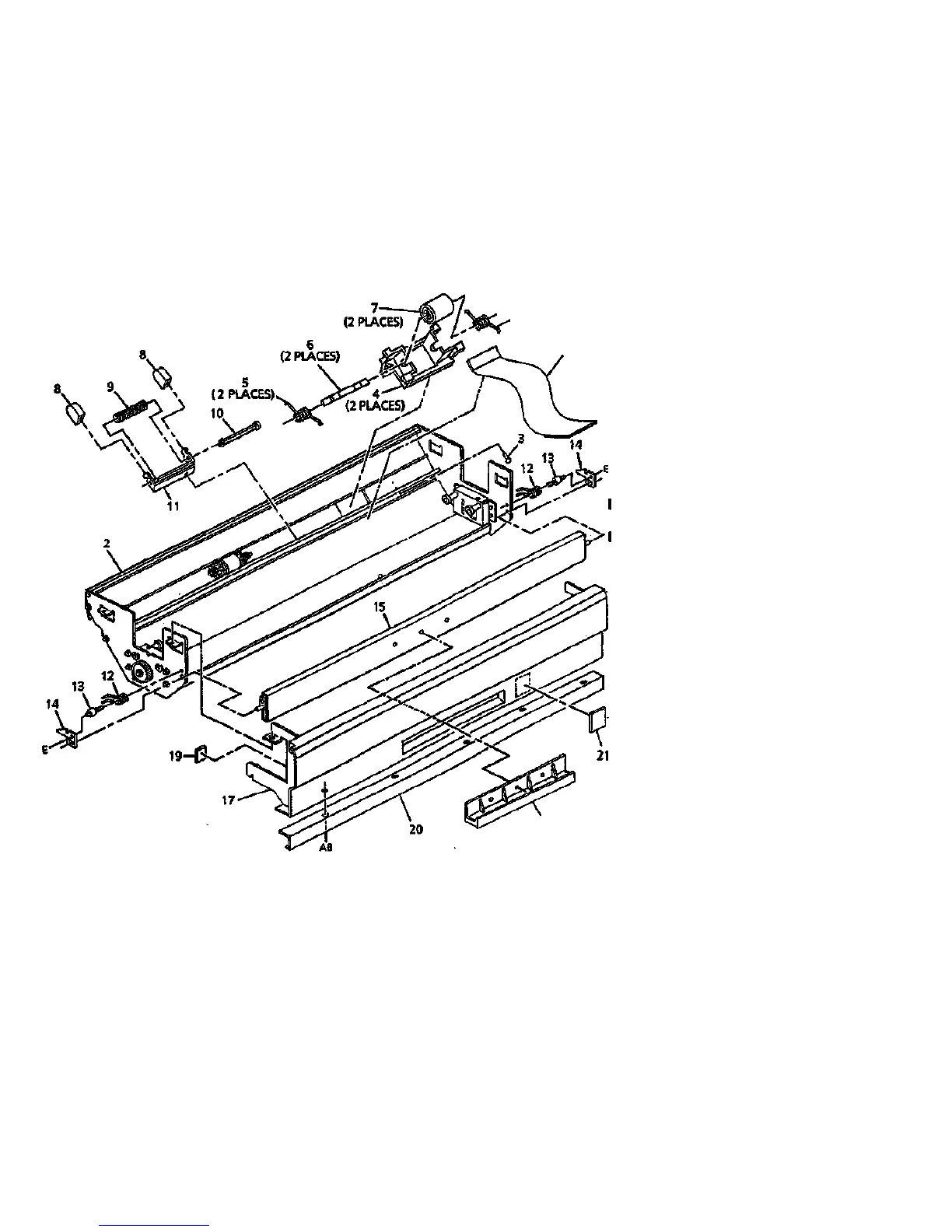

PL 7.5 ROLL SUPPLY DRAWER COMPONENTS (PART 3 OF 4)
1(2-16,18
ITEM PART
(2 PLACES)
18
(2 PLACES)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
17E42S0
68E17221
9E27351
22E10060
9E32790
29E14460
9E27330
29E13701
3K7581
3E39000
48K44880
38K9190
121E7680
48E39380
891E1960
DESCRIPTION
PART OF ROLL SUPPLY
DRAWER ASSEMBLY
(REF: PL7.1 ITEM 3)
DRAWER FRAME
(P/O ITEM 1)
BAFFLE STOP
BRACKET
PINCH ROLL SPRING
PINCH ROLL SHAFT
{P/O ITEM 1)
ROLL FEED PINCH ROLL
(REP 7.3)
LOCK RELEASE HANDLE
(P/O ITEM 1)
LOCK SPRING
RETAINER
LATCH (P/O ITEM 1)
DRAWER LATCH SPRING
LATCH PIN
SUPPLY DRAWER
LATCH (P/O ITEM 1)
HANDLE
DRAWER HANDLE
DRAWER COVER
PAPER GUIDE
MAGNET
KICKPLATE
DRAWER LABEL
16
0000011A-RNO
PARTS LIST SECTION
PL 7.5
9/07
5-12
8830
