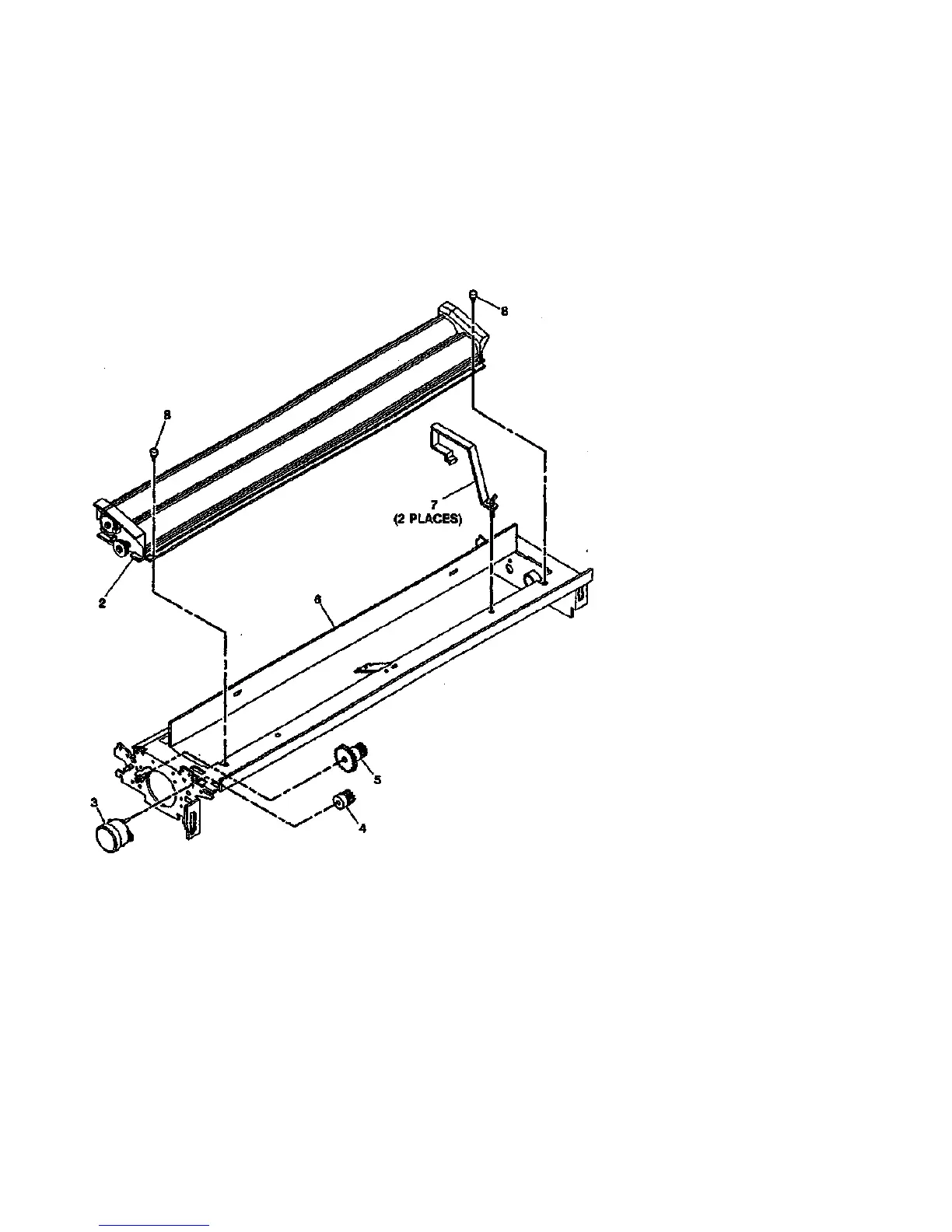

PL 9.6 WEB OILER ASSEMBLY
1{2-8
(EXPLODED ON
PL9.7, ITEM 1)
ITEM
1
2
3
4
5
6
7
a
PART
94K3301
127K21990
7K8920
7K8930
3E39010
3E44550
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL9.1 ITEM 4)
WEB OILER ASSEMBLY
(REP 10.7)
WEB OILER MOTOR
OILER DRIVE GEAR
IDLER GEAR (40T/18T)
XEROGRAPHIC FRAME
(P/O ITEM 1)
HANDLE
SCREW (M4)
0000019A RNO
8830
9/97
6-27
PARTS LIST SECTION
PL 9.6
