Xerox 8830 Service Manual

4. Install the Document Hold-down.
5. Close the Top Cover.

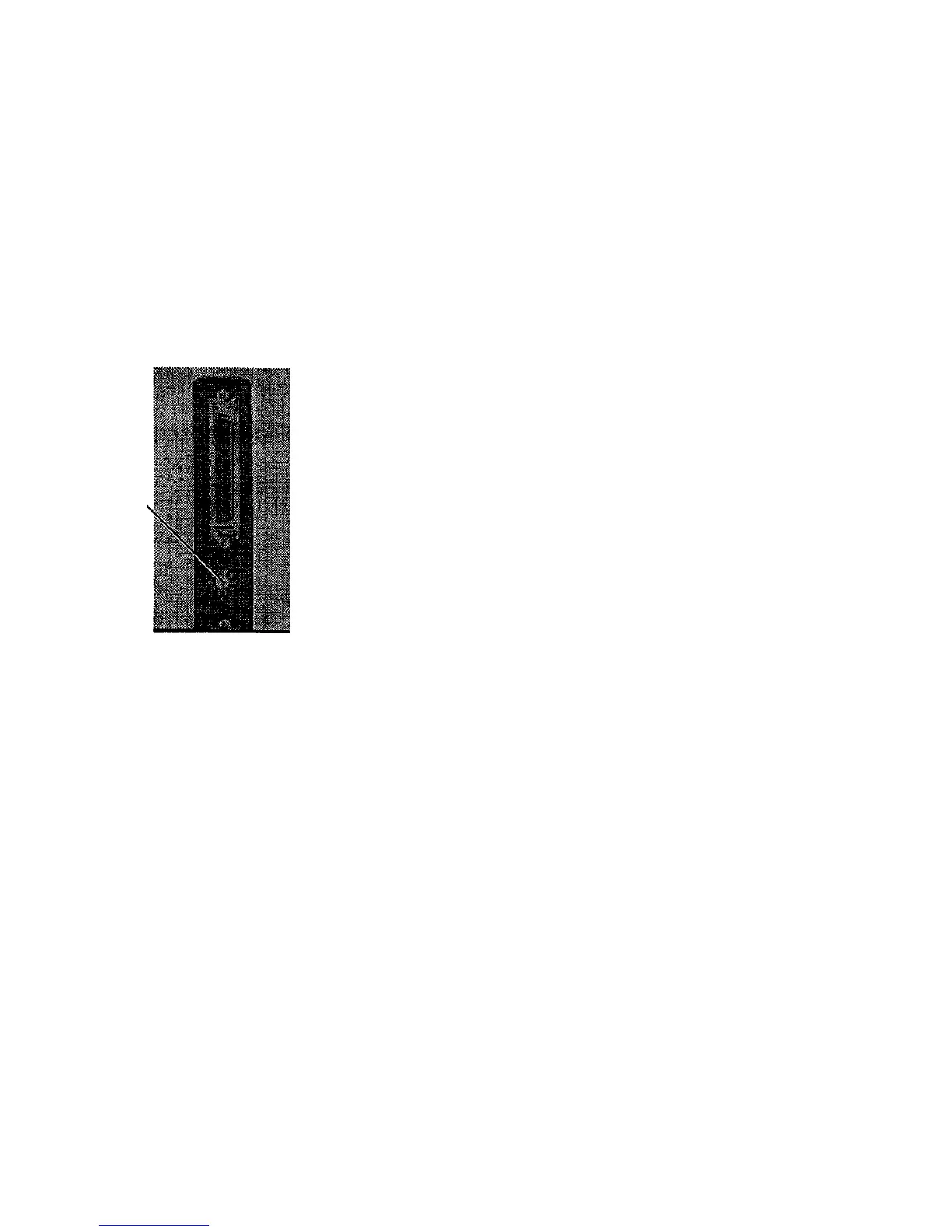

6. (Figure 6-23): Rotate the SCSI Address Switch to indicate 0.
SCSI
Address
Switch
Figure 6-23. SCSI Address Switch
7. Connect the Power Cord to the Scanner.
8. Connect the Scanner SCSI cable to one of the SCSI ports on the
rear of the Scanner.
9. Place the scanner where power and SCSI cables reach the
connections on the controlling device.
10. Lock the casters on the Scanner.
11. Install the controlling device for the Scanner.
Connecting the Scanner to the ES8150 System
W/O Tag 9
Do the following steps to connect the Scanner to the ES8150 System:
1. Upgrade the software for the SIM and the VME, if not already
installed.
Caution
Ensure that the existing system is operating correctly
before installing any software upgrade. Also, ensure that
there will be no interruptions of power to the SIM during
the software installation process. Unrecoverable errors
may otherwise occur, requiring the replacement of the
SCAN PWB in the VME.
Note: Refer to the installation instructions supplied with the software
Scanner Installation
12/97
6-22
7356 Scanner
