REP 8.17 Registration Drive
Roll
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Latch the Xerographic Module at the Service
Position (REP 9.2).
2. Remove the Media Transport Assembly (REP
8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Turn the Media Transport Assembly over.
6. (Figure 1): Remove the Media Feed Drive Belt.
7. Turn the Media Transport over and remove the
screws (2 each side) and the baffle that they
secure.
2
Remove the
screws (3)
4
Remove the Media
Feed Drive Belt

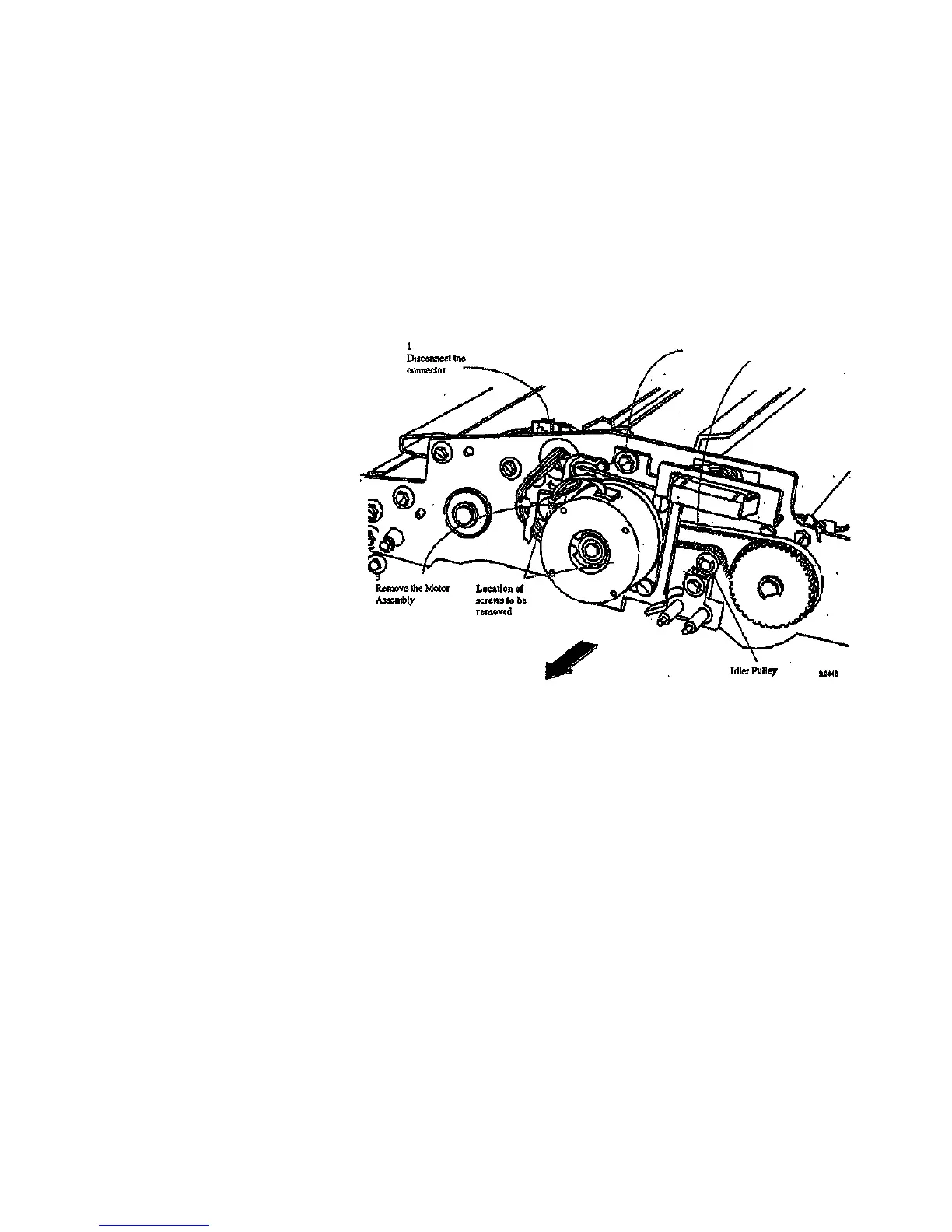

Figure 1. Removing the Media Feed Drive Belt
REP 8.17
1/98
4-40
8830
To Next Page
