Xerox 8830 Service Manual

8. (Figure 2): Remove the Baffle.
9. Remove the Registration Drive Roll by pushing
the beatings out of the frame and moving the roll
as required for removal.
2
Remove the two screws
(one each end)
Remove the two
springs (one each end)
Rotate the screw until it
is free of the slot
Remove (he Baffle
6
Rotate the
Assembly

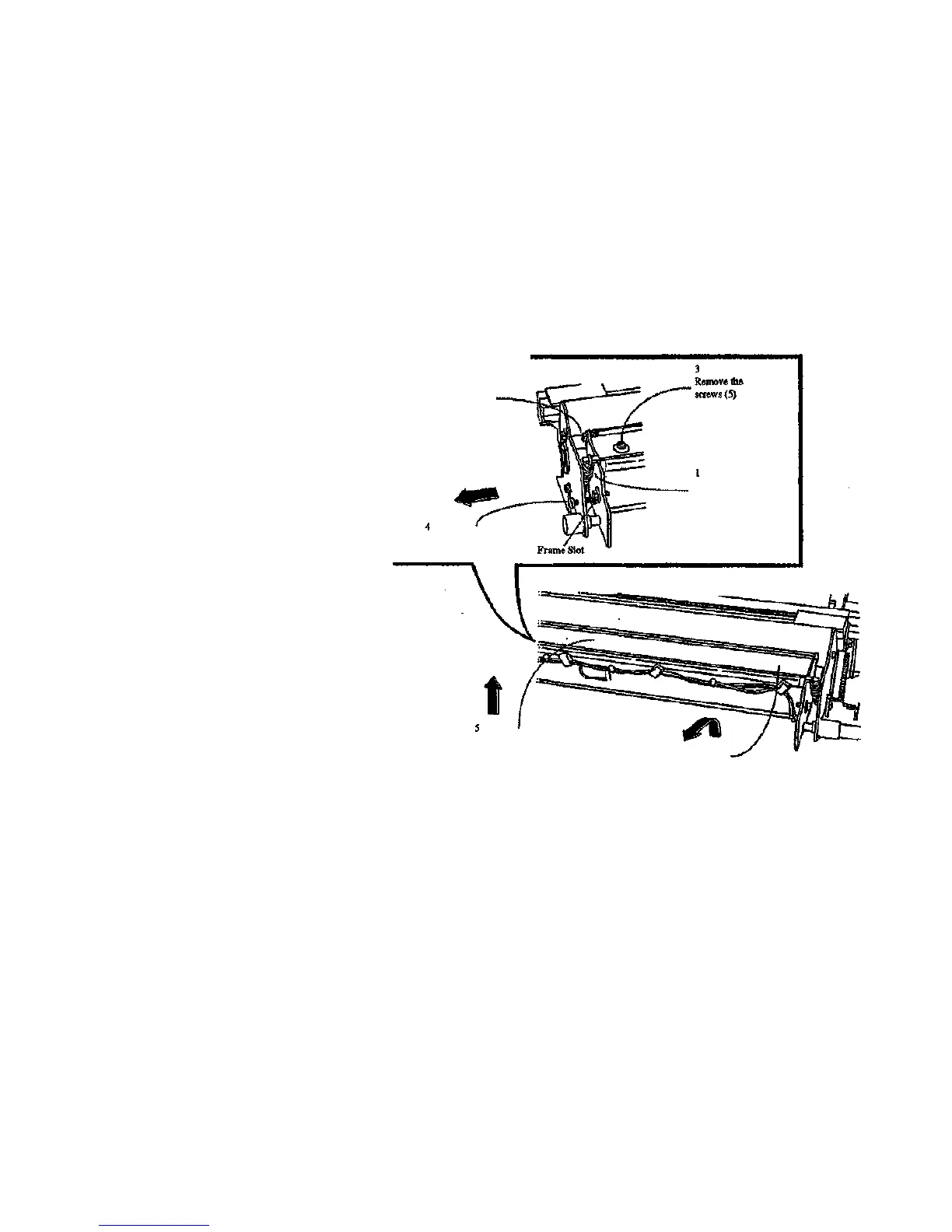

Figure 2. Removing the Baffle
1/98
4.41
REP 8.17
