Xerox 8830 Service Manual

4. (Figure 2): Remove the Registration Pinch Rolls.
4
Remove the two
retainers (one
each end)
1
Remove the two E-rings (one
each end)
5
Remove the two rolls
(one each end)
Remove the Registration Pinch Roll
Assembly
Remove the two
bearings (one
each end)

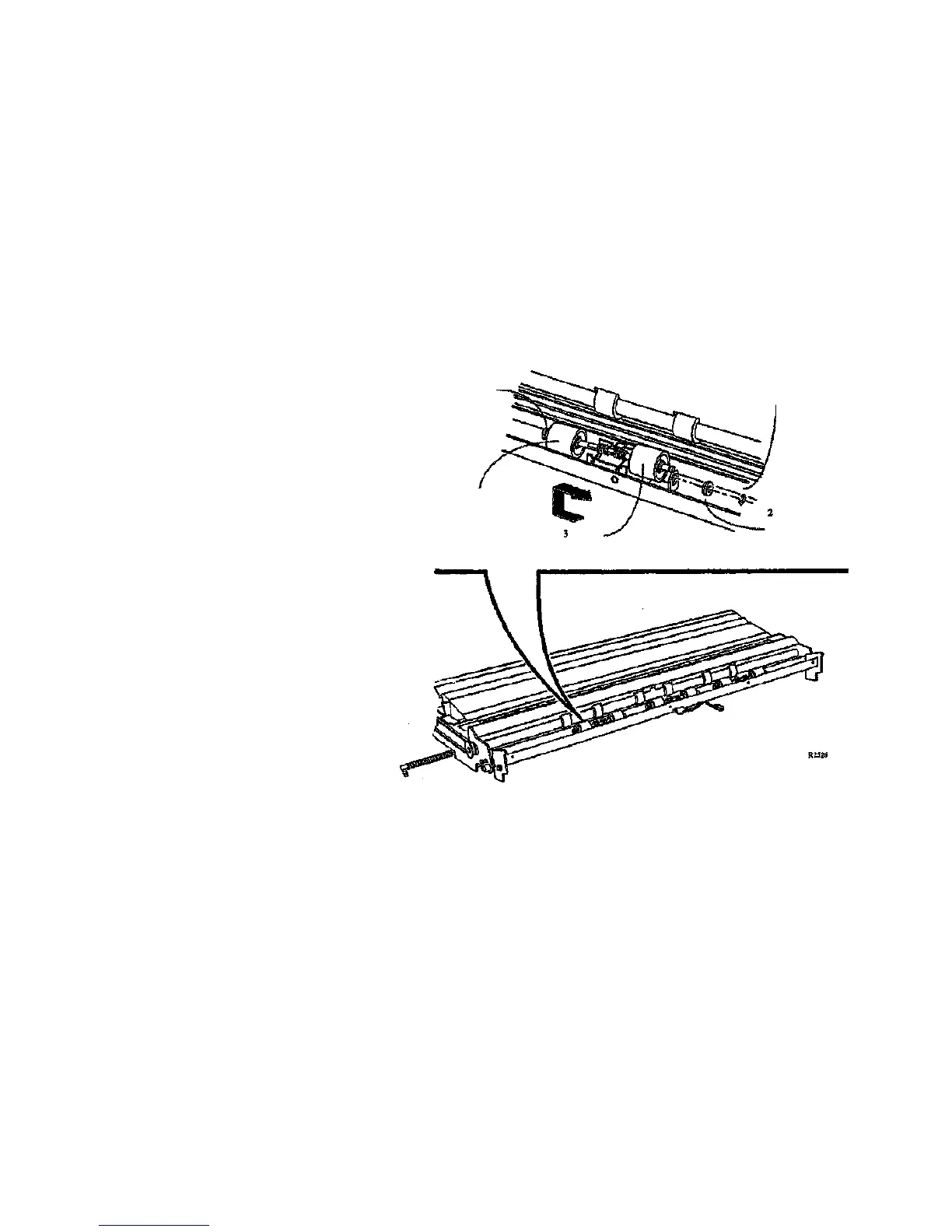

Figure 2. Removing the Registration Pinch Rolls
REP 8.12
1/98
4-34
8830
