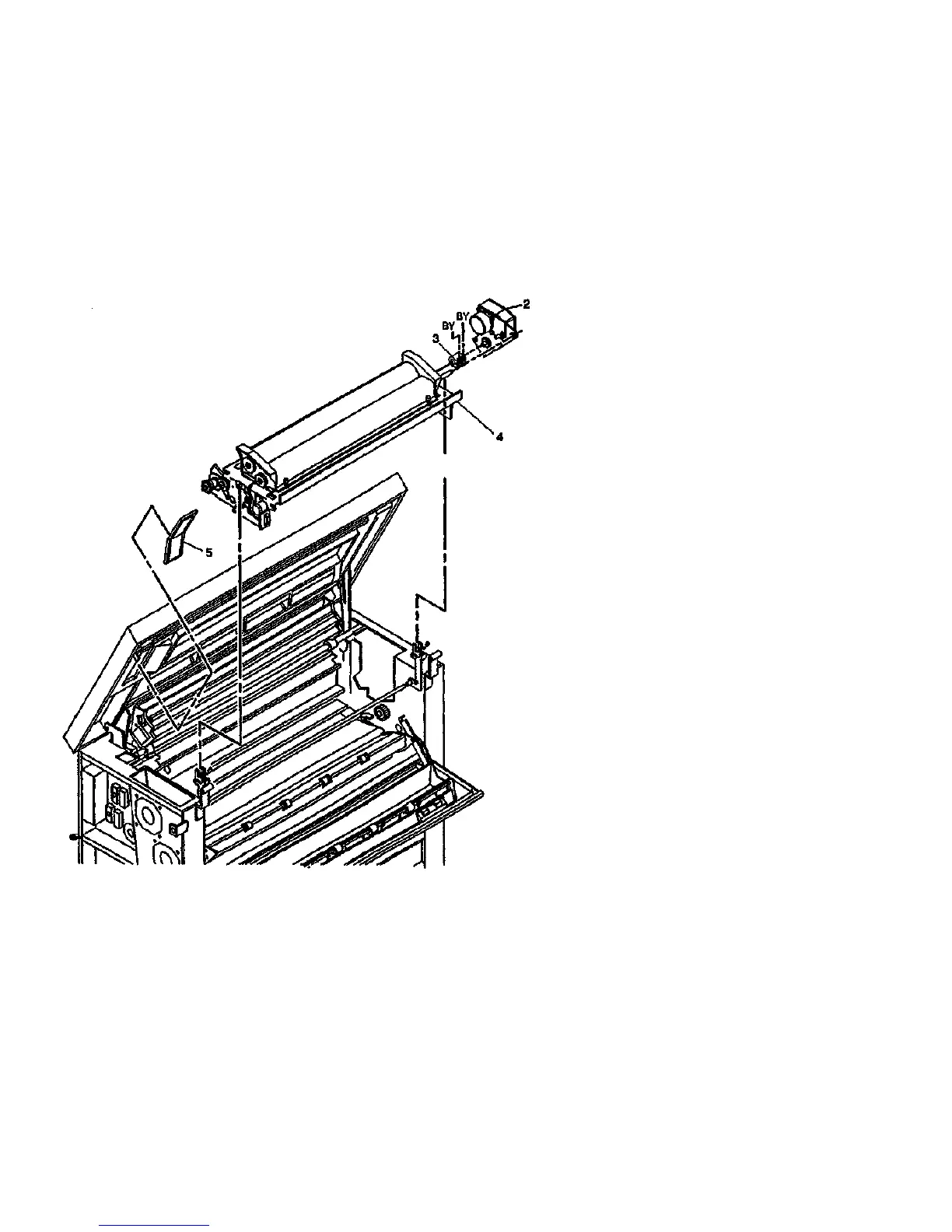

PL 9.1 XEROGRAPHIC MODULE ASSEMBLY
(EXPLODED ON
PL9.2, ITEM1
PL9.3, ITEM 1
PL9.5A, ITEM 1
PL9.5B, ITEM 1
PL9.6, ITEM 1)
1{2,3
ITEM
1
2
3
4
.
5
PART
127K17882
SK41S1
126K5992
128K7152
S3E4750
DESCRIPTION
PHOTORECEPTOR DRIVE
ASSEMBLY
PHOTORECEPTOR DRIVE
(P/O ITEM 1)
COUPLING
XEROGRAPHIC MODULE
ASSEMBLY (60HZ)
(REP 9.1)
XEROGRAPHIC MODULE
ASSEMBLY (50HZ)
(REP 9.1)
OZONE FILTER
0000OI8A-RNO
PARTS LIST SECTION
PL 9.1
9/97
5-20
8830
