Xerox 8830 Service Manual

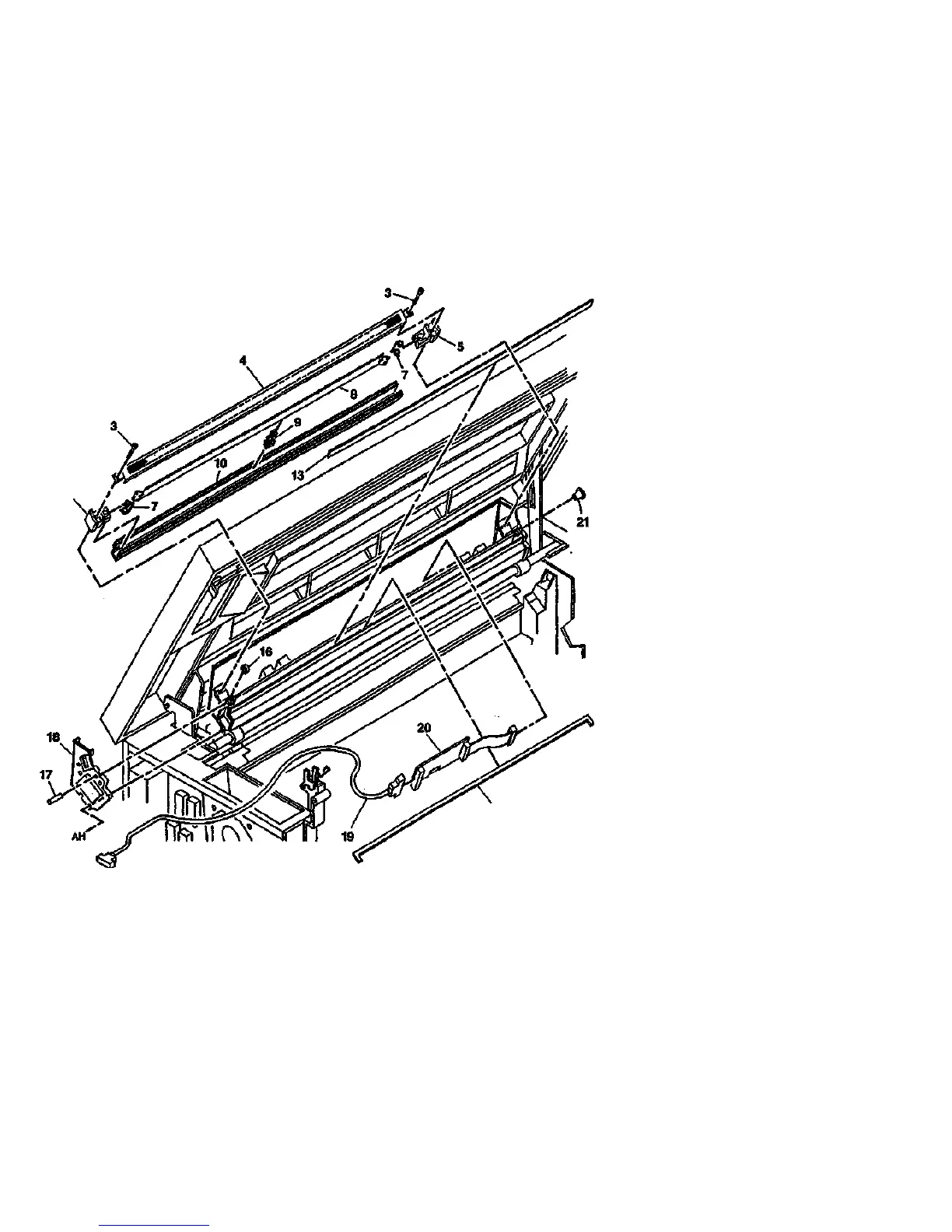

PL 9.3 IMAGE MODULE ASSEMBLY
1(2,13
2{ 3-5, 9,10
6(7,8
11(12
14( 15,18-20
15(16,17
12
22
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PART
125K2220
26E576S0
62E8051
600K58750
--
--
--
600K58730
35E41210
60QK58760
600K58740
-
—
—
—
160K30980
21E7680
35E37240
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL9.1 ITEM 4)
SCOROTRON ASSEMBLY
SCREW (M4 X 30)
SCREEN (P/O ITEM 2)
RIGHT END BLOCK
(P/O ITEM 2)
PIN ARRAY KIT
(REP 9.8)
SPRING (P/O ITEM 6)
PIN ARRAY (P/O ITEM 6)
CENTER SUPPORT
(P/O ITEM 2)
SCOROTRON EXTRUSION
(P/O ITEM 2)
LEFT END BLOCK KIT
LEFT END BLOCK
(P/O ITEM 11)
SEAL
IMAGE MODULE
ASSEMBLY KIT
ROLLER KIT
ROLLER (P/O ITEM 15)
PIN (P/O ITEM 15)
COVER (P/O ITEM 14)
HARNESS (P/O ITEM 14)
CIRCUIT BOARD
CAP PLUG
GASKET
0000005A RNO
PARTS LIST SECTION
PL 9.3
2/97
5-22
8830
