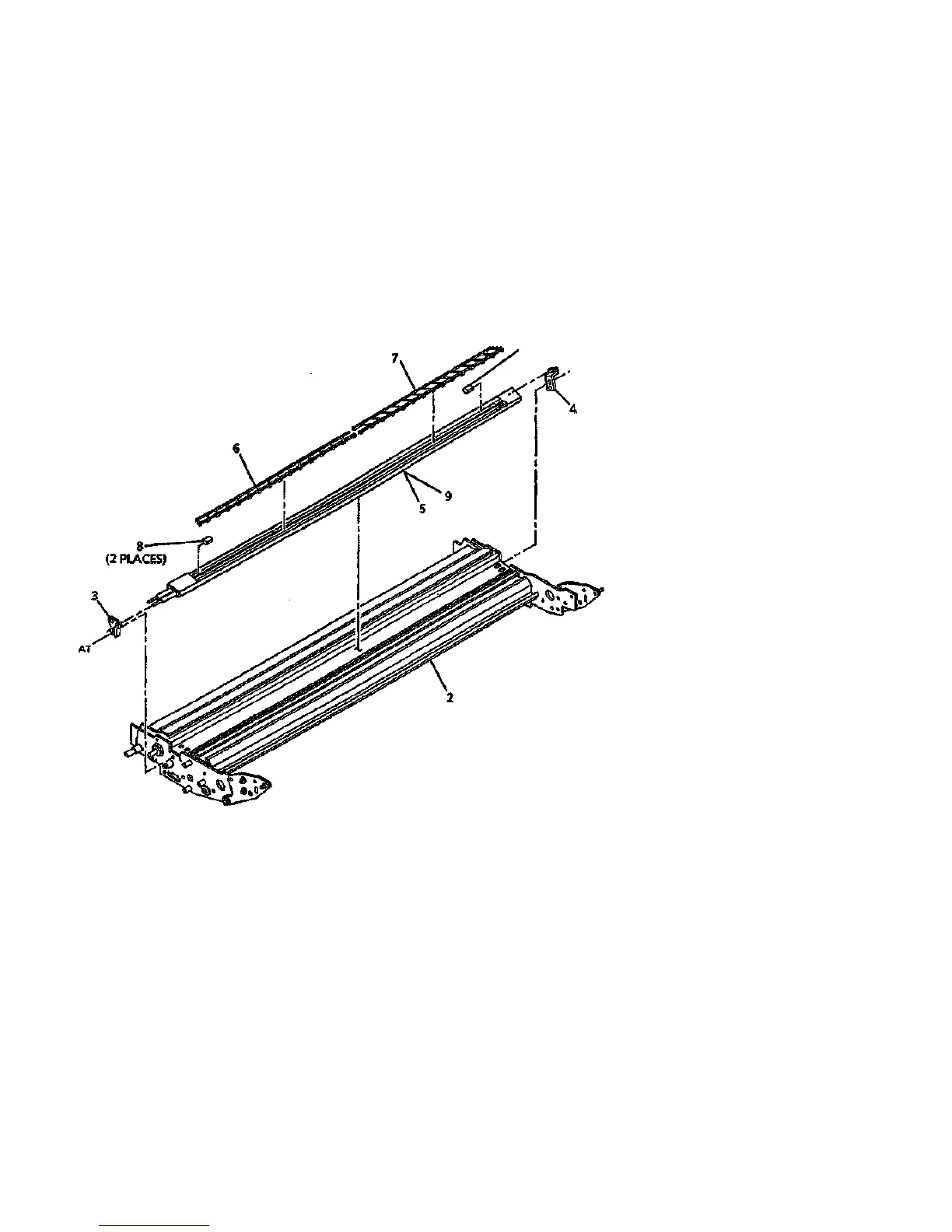

PL 9.4 TRANSFER/DETACH COROTRON
1(2-4
8 (2 PLACES)
X
(FOR LOCATION
REF: PL8.1, ITEM 4)
ITEM
1
2
3
4
5
6
7
8
9
PART
19E16080
19E19971
125K25B0
38E6610
38E6620
4E502
600K37740
DESCRIPTION
PART OF MEDIA
TRANSPORT ASSEMBLY
(REF: PL8.1 ITEM 4)
TRANSPORT FRAME
(P/O ITEM 1)
LEFT COROTRON CLAMP
RIGHT COROTRON CLAMP
TRANSFER/DETACK
COROTRON (REP 9.9)
REAR DETACK
COROTRON SHIELD
FRONT DETACK
COROTRON SHIELD
FOAM DAMPER
COROTRON REPAIR KIT
0000022A-RNO
8830
9/97
5-23
PARTS LIST SECTION
PL 9.4
