Xerox 8830 Service Manual

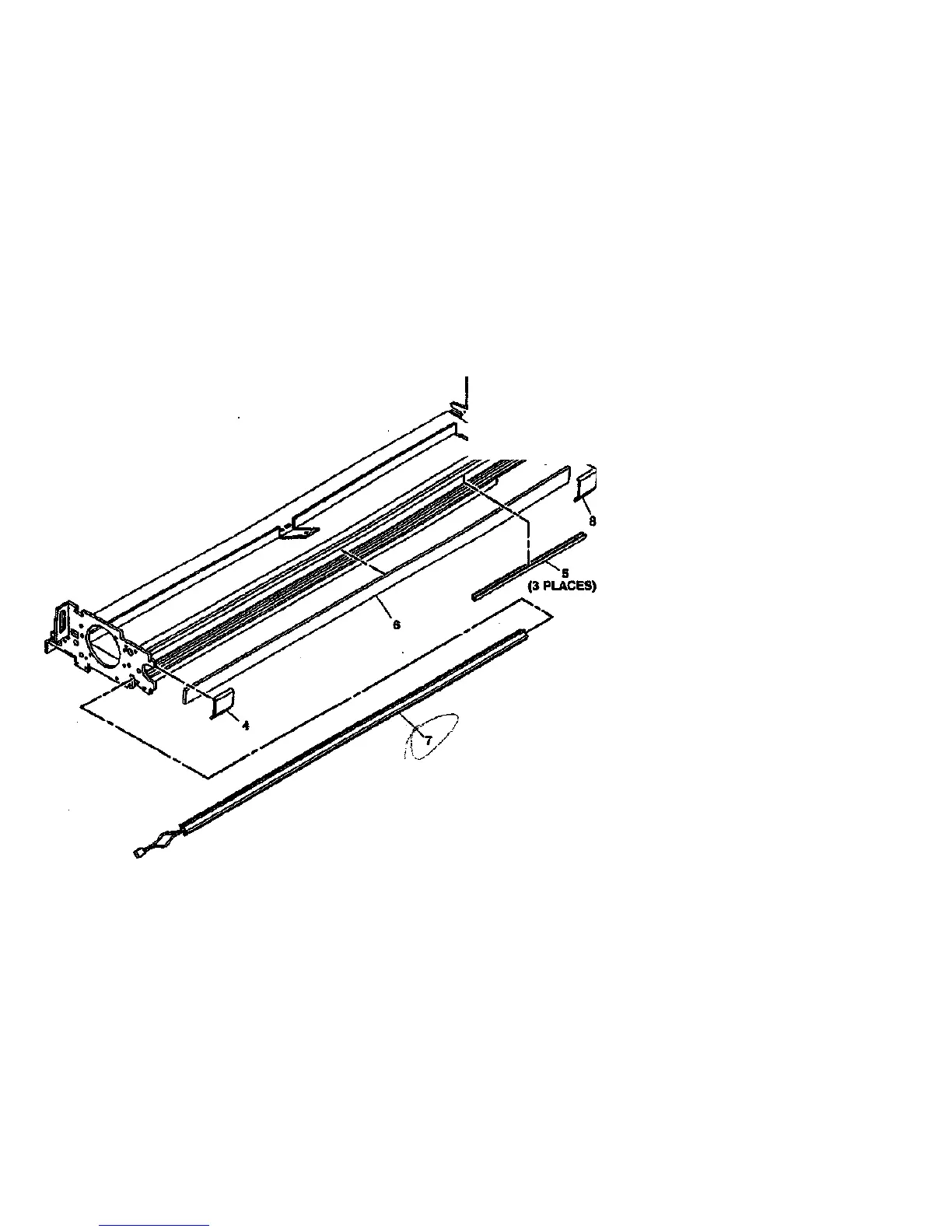

PL 9.5A DRUM CLEANING (PART 1 OP 3)
ITEM
1
2
3
4
5
6
7
8
PART
600K59060
--
..
..
101K25780
—
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL9.1 ITEM 4)
XEROGRAPHIC FRAME
(P/O ITEM 1)
CLEANING BLADE KIT
(REP 9.4)
BLADE SEAL (P/O ITEM 3)
CLEANER BLADE RETAINER
(P/O ITEM 3)
CLEANER BLADE
(P/O ITEM 3)
DISCHARGE LED
BLADE SEAL (P/O ITEM 3)
(REAR VIEW
ROTATED 180*)
0000021B-RNO
PARTS LIST SECTION
PL 9.5A
9/97
5-24
8830
1{2,7
3{ 4-6, BAND
ITEM 7 ON PL9.5B
