Xerox 8830 Service Manual

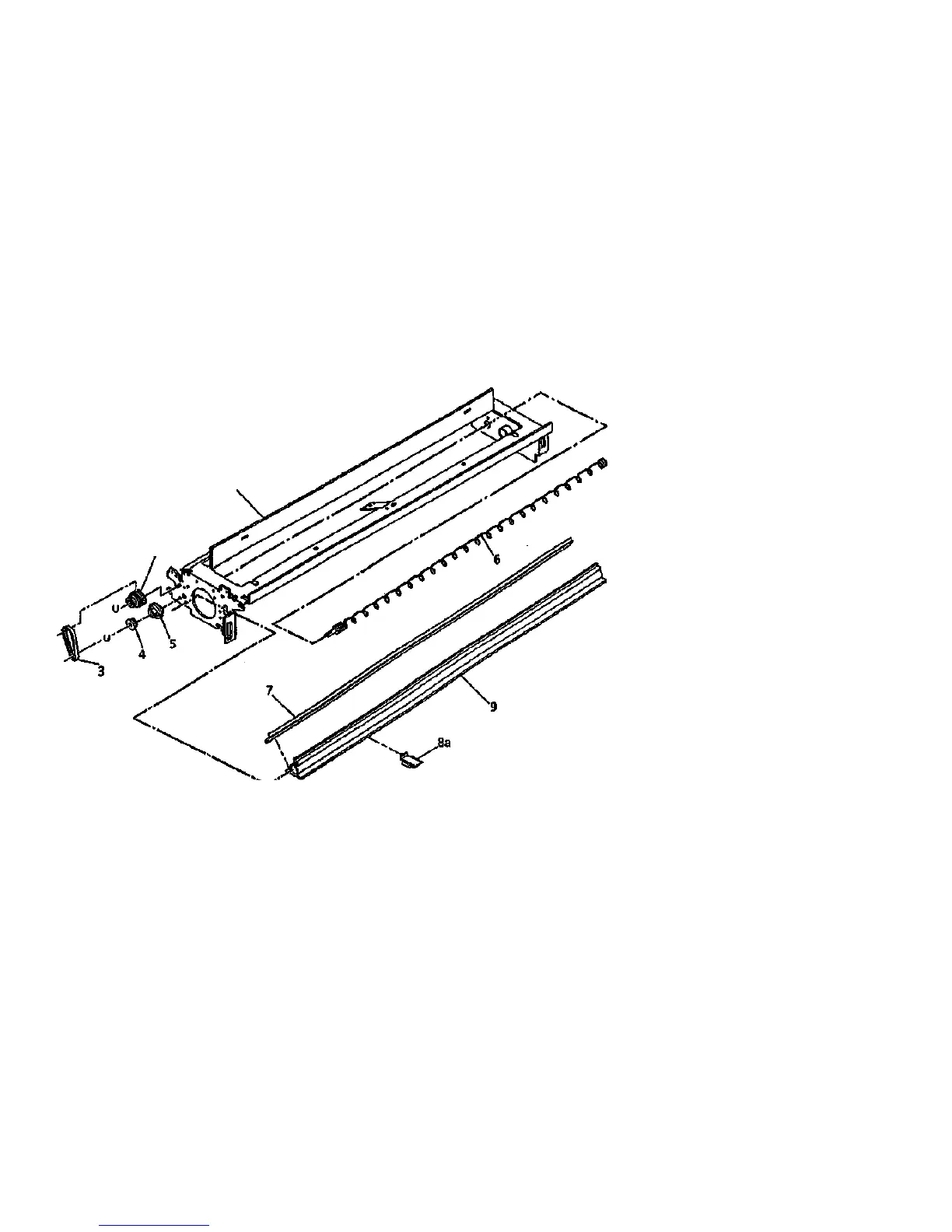

PL 9.5B DRUM CLEANING (PART 2 OF 3)
1(2-6,9,10
P/O KIT
REF: PL9.5A, ITEM 3
8{8a
ITEM PART
1
10,
(TO PL9.2 , ITEM 11)
8
8a
9
10
2 7E5221
3 23E1620
4 20E4350
5 13E803
6 94K85
7 35K5790
600K8481
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL9.1 ITEM 4)
AUGER GEAR PULLEY
AUGER DRIVE BELT
AUGER PULLEY
AUGER BEARING
WASTE TONER AUGER
PHOTORECEPTOR SEAL
(P/O CLEANING BLADE
KIT, REF: PL9.5A
ITEM 3) (REP 9.17)
MEDIA DEFLECTOR
KIT (7/KIT)
MEDIA GUIDE
HOUSING (P/O ITEM 1)
XEROGRAPHIC FRAME
(P/O ITEM 1)
0000023A-RNO
8830
9/97
5-25
PARTS LIST SECTION
PL 9.5B
7{
