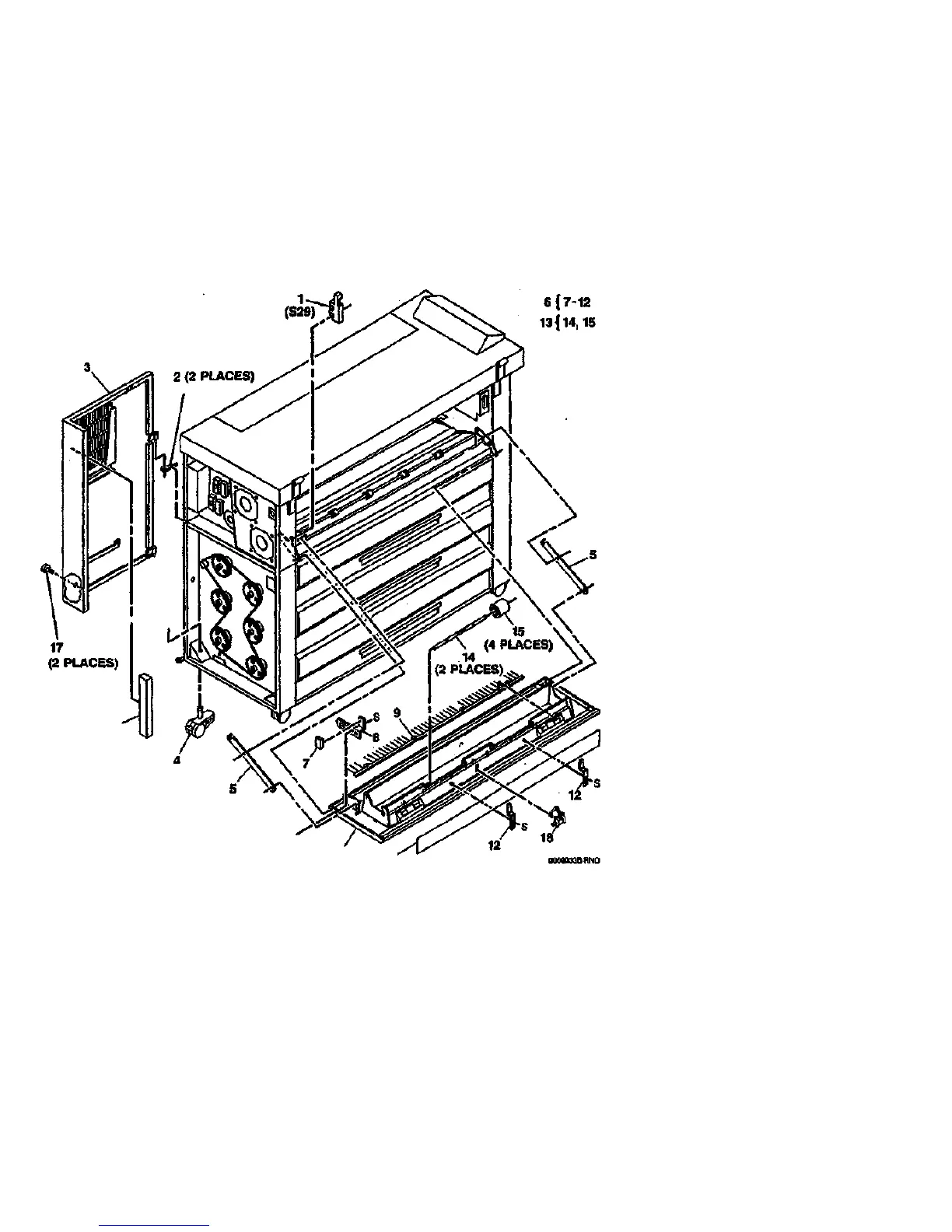

PL 14.1 TRANSPORT LATCHING COVER AND REAR DOOR
ITEM
1
2
3
4
5
6
7
8
a
10
11
12
13
14
15
16
17
18
PART
130E2271
14E20541
48K47700
17K1120
30K55630
121E7680
19E33441
115E1410
--
96E72590
809E2290
600K59260
—
..
35E41160
29E28060
110K9430
DESCRIPTION
FEED SHELF INTERLOCK
SWITCH (S29)
LEFT HINGE SPACER
REAR DOOR
CASTER
BRACKET (NOT SPARED)
TRANSPORT LATCHING
COVER ASSEMBLY
MAGNET
GROUND RETAINER
STATIC BRUSH
TRANSPORT LATCHING
COVER (P/O ITEM 6)
LABEL
SHAFT SPRING
EXIT IDLER ROLL KIT
SHAFT (P/O ITEM 13}
ROLL (P/O ITEM 13)
GASKET
FASTENER
SWITCH
16
(4 PLACES)
BU
10 11
PARTS LIST SECTION
PL 14.1
9/97
5-36
8830
