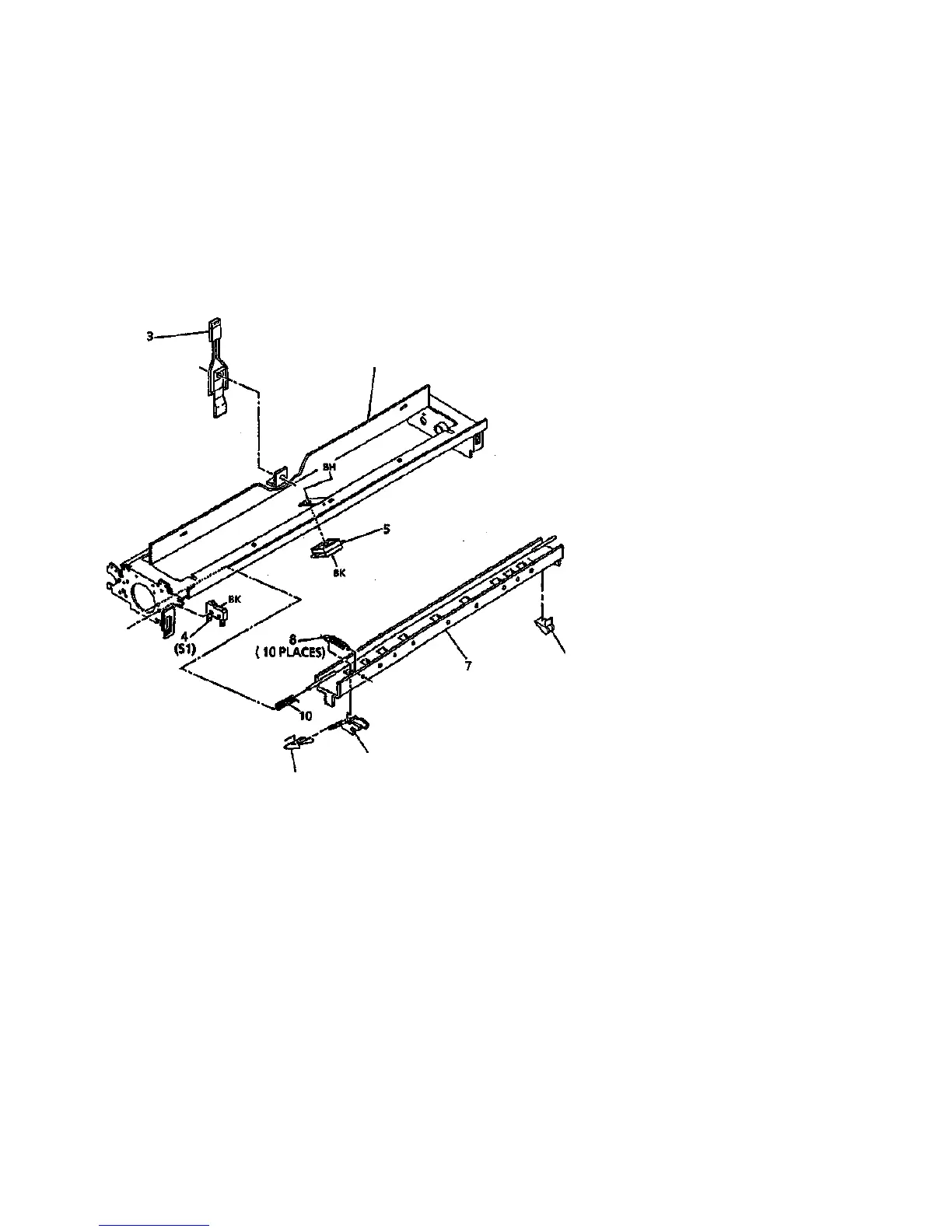

PL 10.4 FUSER HEAT CONTROL AND STRIPPER FINGERS

1 {2,3,4,5,6

6 {7,8,10,11,12

{9a

(5 PLACES)

(10 PLACES)

ITEM

PART

130K54730

110E5500

130K54841

30K55720

9E61600

600K35880

—

9E38060

6BE38113

38K11070

DESCRIPTION

PART OF XEROGRAPHIC

MODULE ASSEMBLY

(REF: PL10.1 ITEM 1)

XEROGRAPHIC FRAME

(P/O ITEM 1)

THERMISTOR

STRIPPER FINGER JAM

SWITCH (S1)

THERMAL FUSE

STRIPPER BRACKET

ASSEMBLY

STRIPPER FINGER SUPPORT

(P/O ITEM 6)

SPRING

STRIPPER FINGER

SPARE KIT

STRIPPER FINGER

(REP 10.8)

SPRING

STRIPPER FINGER BRACKET

PAPER GUIDE

0000031B-RNO

8830

9/97

5-35

PARTS LIST SECTION

PL 10.4
