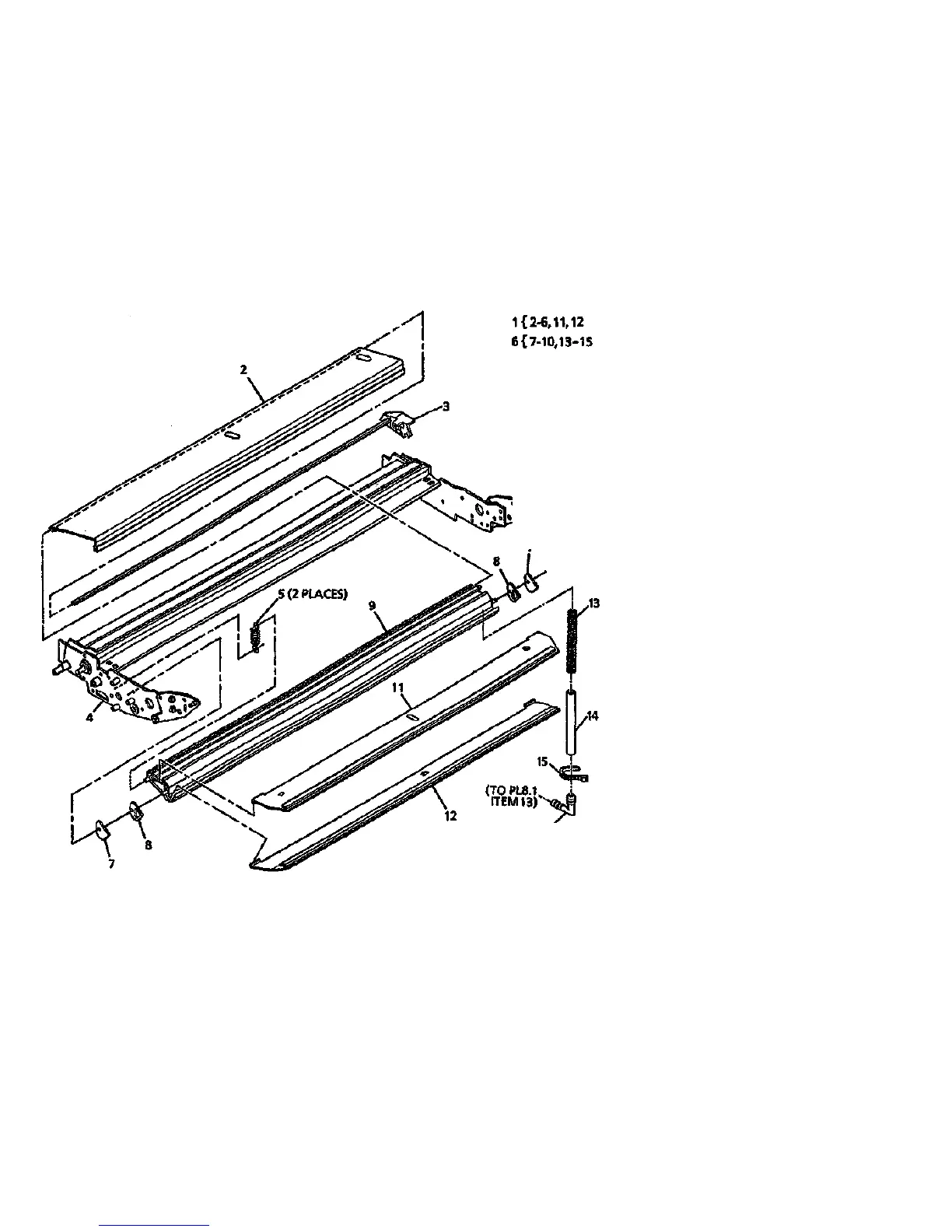

PL 10.3 FUSER PRESSURE COMPONENTS AND MOISTURE COL-
LECTION
(FOR LOCATION
REF:
PL8.1
ITEM 4)
ITEM
1
2
3
4
S
6
7
8
9
10
11
12
13
14
15
PART
23K942
3K9130
9E32490
—
-
--
33K2430
33K2040
9E46870
52E7900
420W10201
DESCRIPTION
PART OF MEDIA
TRANSPORT ASSEMBLY
(REF: PL8.1 ITEM 4)
FABRIC GUIDE (REP 8.9)
FABRIC GUIDE
RETAINER HANDLE
TRANSPORT FRAME
(P/O ITEM 1)
SPRING
HOUSING ASSEMBLY
(P/O ITEM 1)
END CAP (P/O ITEM 8)
GASKET (P/O ITEM 6)
HOUSING (P/O ITEM 6)
ADAPTER (P/O ITEM 6)
PRESSURE PLATE A
(REP 8.5)
PRESSURE PLATE B
(REP 8.5)
DRAIN TUBE SPRING
MOISTURE DRAIN TUBE
CABLE TIE
10
00000308-RNO
PARTS LIST SECTION
PL 10.3
9/97
5-34
8830
