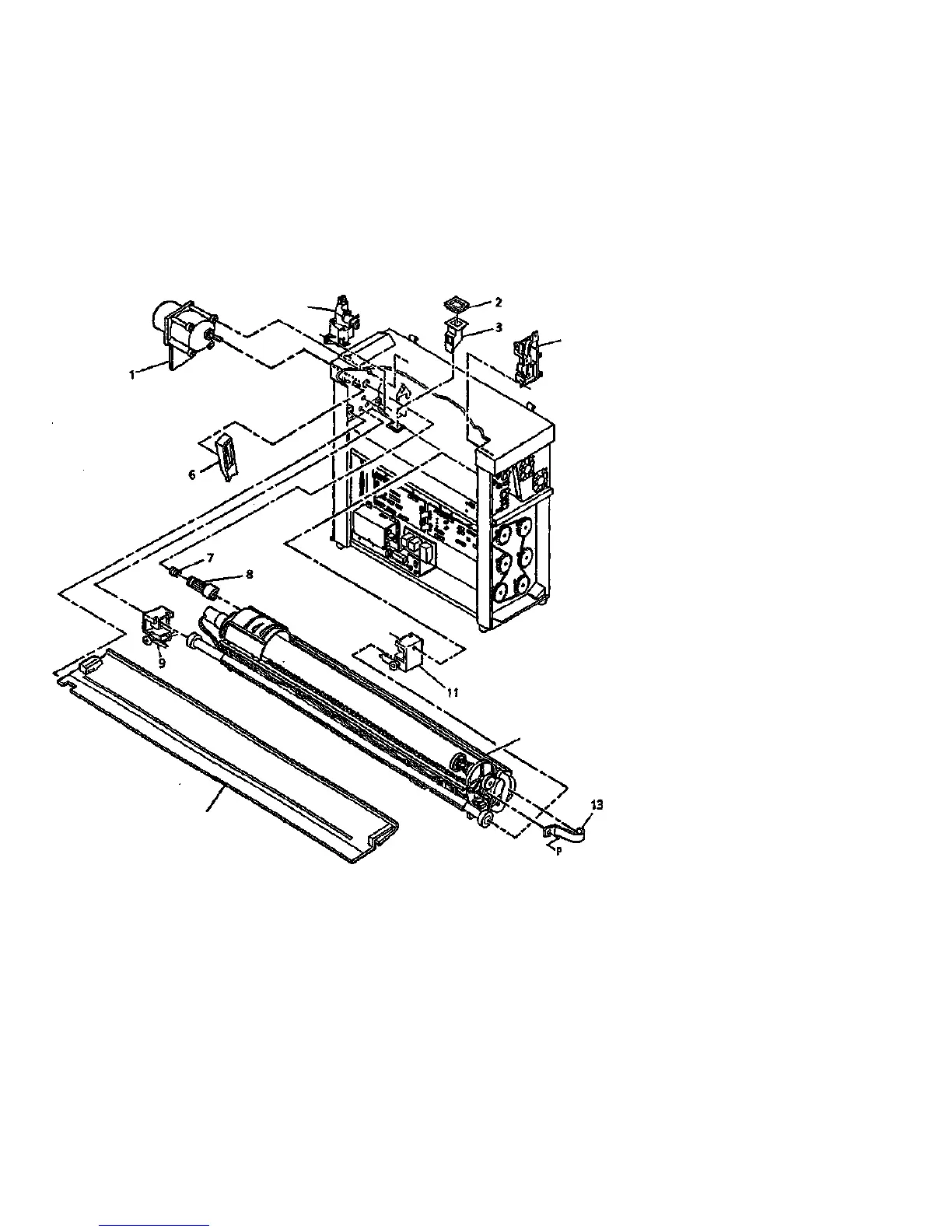

PL 9.8 DEVELOPER MODULE ASSEMBLY
4
12
(EXPLODED ON
PL9.9, ITEM 1
PL9.10, ITEM 1)
10
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
PART
127E10341
35K5900
10E4190
14K4740
14K4730
28E7771
9E41251
7E15351
30K56160
50E12851
30K56150
121K10422
19E21480
DESCRIPTION
DRUM/DEVELOPER
DRIVE MOTOR
GASKET
TRICKLE SLIDE
DEVELOPER SUPPORT
(DRIVE SIDE)
DEVELOPER SUPPORT
RETAINER
COUPLING SPRING
DRIVE GEAR/COUPLING
DEVELOPER SUPPORT
(DRIVE SIDE)
DEVELOPER BAFFLE
DEVELOPER SUPPORT
DEVELOPER MODULE
ASSEMBLY (REP 9.5)
CLIP
0000025A.RNO
8830
2/97
S-29
PARTS LIST SECTION
PL 9.8
