Caution
Support the Power Supply while performing the following
step.
3. (Figure 2): Remove:
• 4 screws
• Power Supply.
01043A-COB
1039A-COB

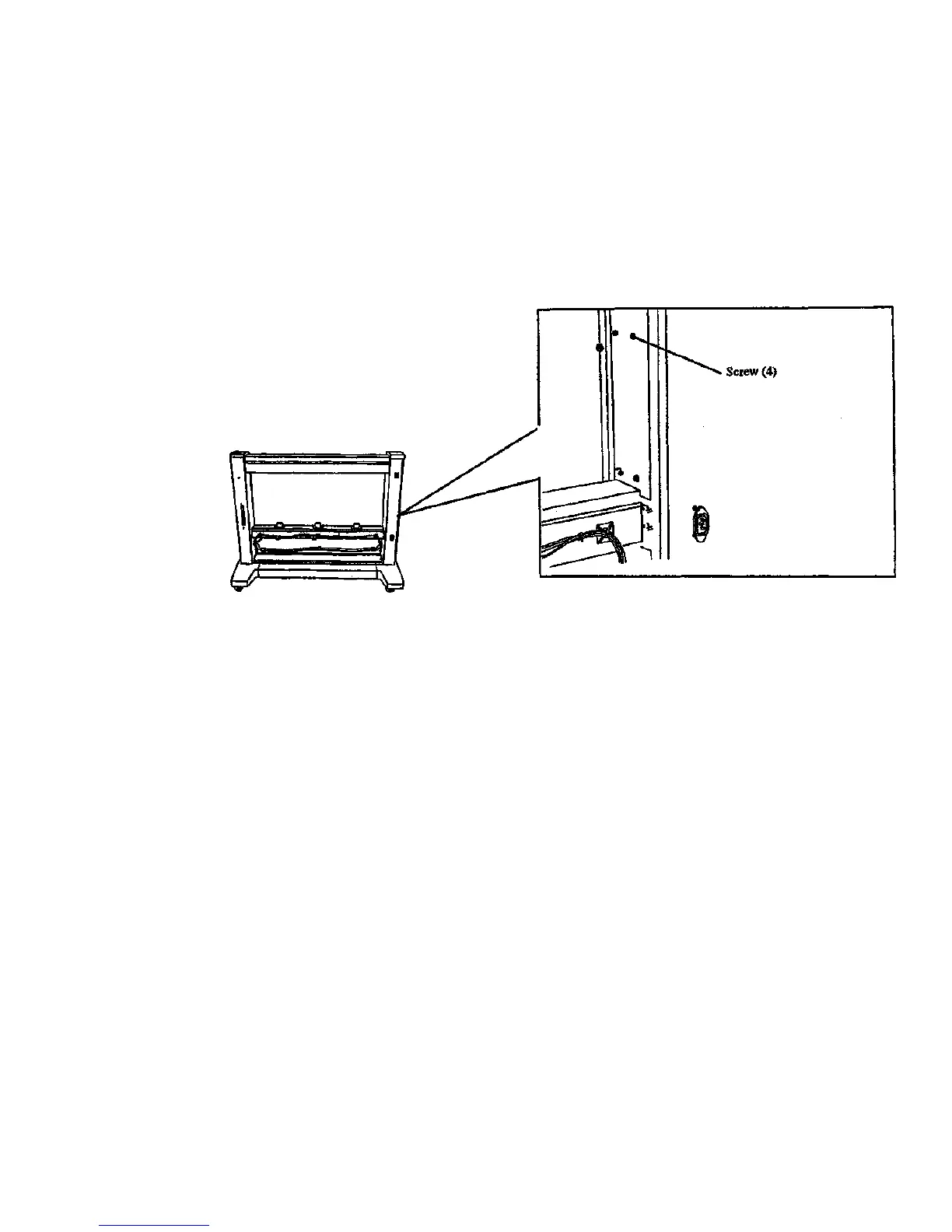

Figure 2. 4 Screws Attaching the Power Supply
7356 SCANNER
4/97
4-27
REP 4.1.17
