Xerox 8830 Service Manual

Adjustment

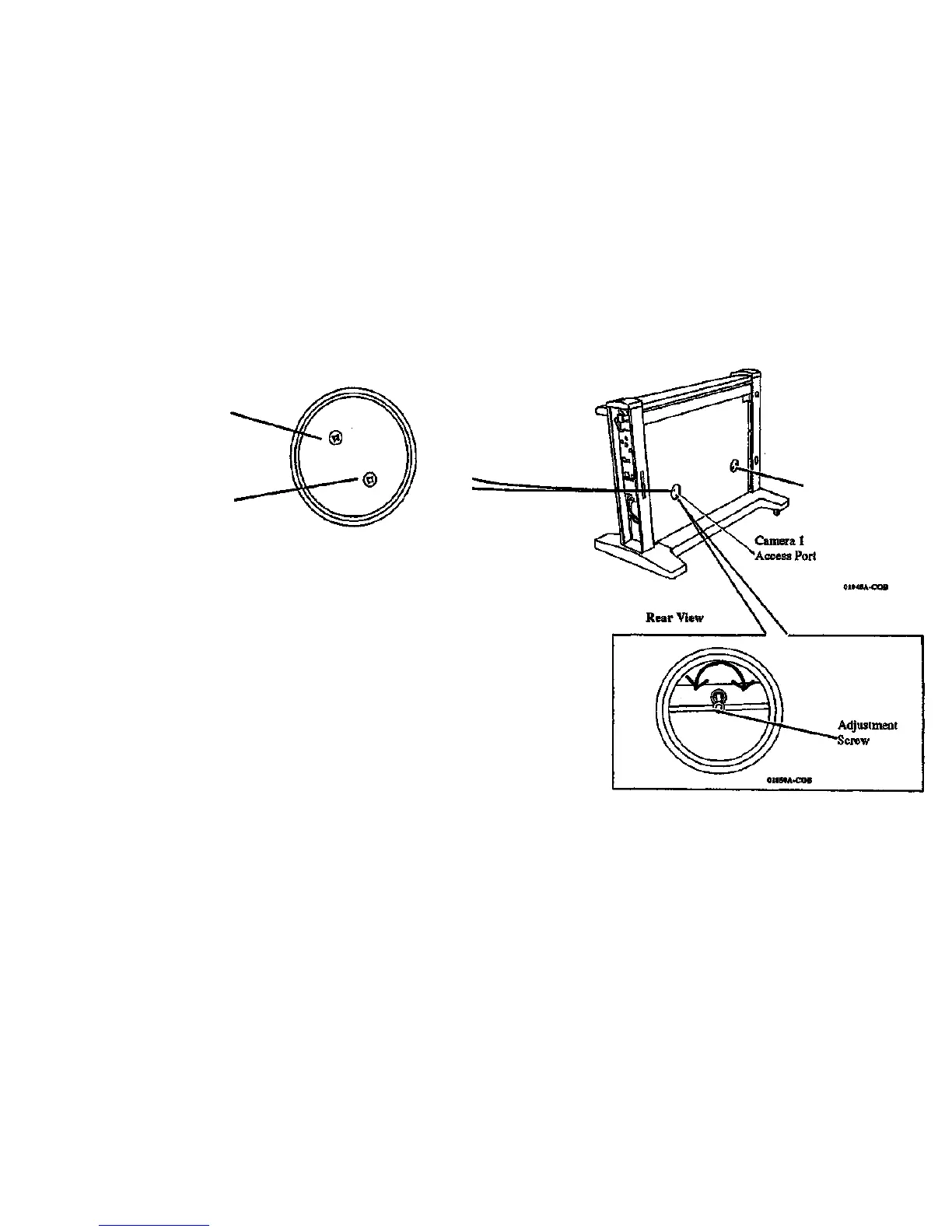

1. (Figure 2): Remove the access cover.
B
Remove the
Access Cover
A
Loosen the 2
captive screws
Figure 2. Access Cover
2. (Figure 3): Adjust the screw until the Gap value is zero.
3. Select the Stop button.
4. Select the Camera 3 button.
5. Select the Begin button.
6. Adjust the Camera 3 Adjustment Screw until the Gap value is zero.
7. Install the Access Covers and tighten the captive screws.
Camera 3
Access Port
Figure 3. Adjustment Screw
7356 SCANNER
4/97
4-41
ADJ 4.1.3
