YASKAWA Z1000 User Manual

6.3 Connecting Peripheral Devices

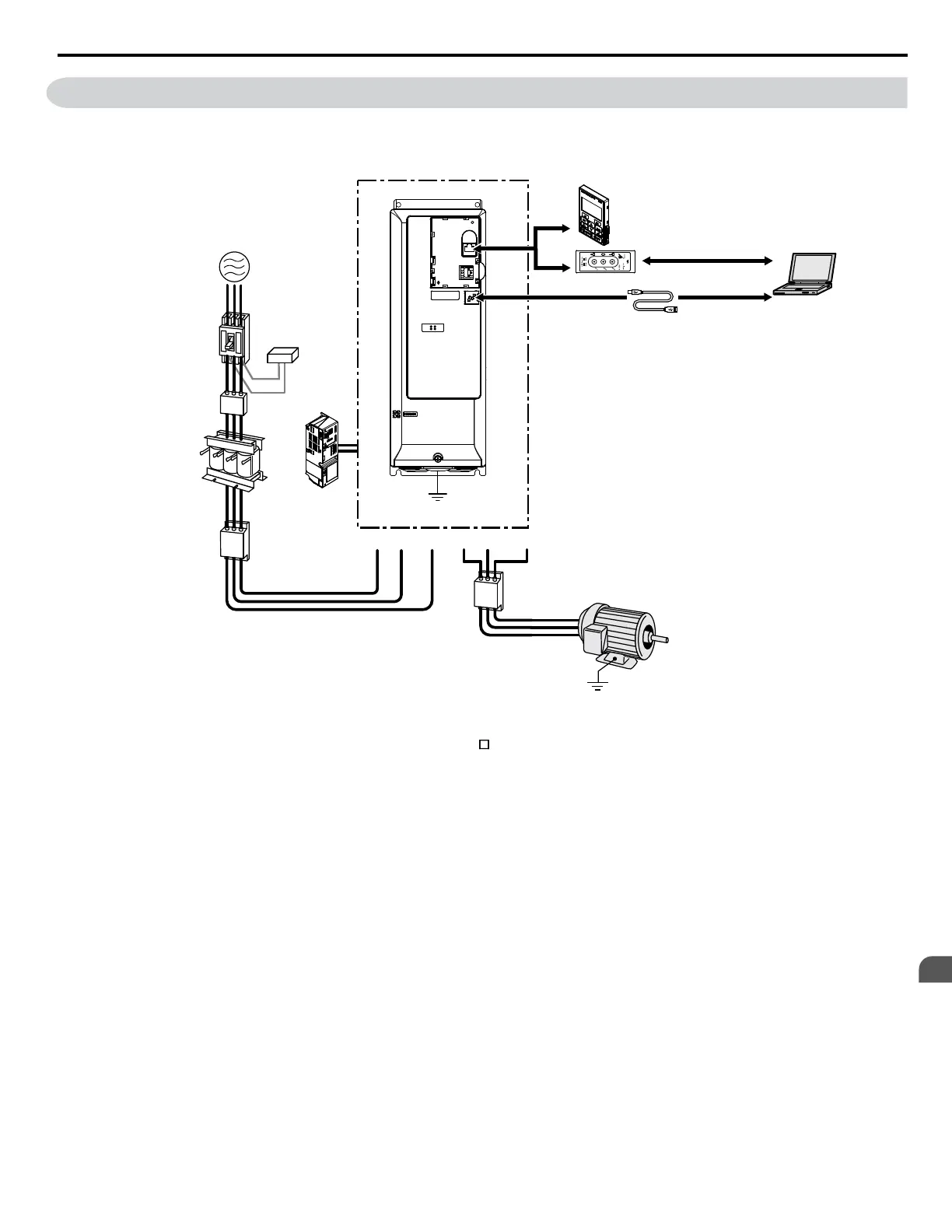

Figure 6.1 illustrates how to configure the drive and motor to operate with various peripheral devices.
Refer to the specific manual for the devices shown below for more detailed installation instructions.
PC
Power
Supply
Line
Breaker
(MCCB)
or
Leakage
Breaker
Surge
Absorber
Input Side
Noise Filter
<1>
Ground
Drive
Motor
U/T1 V/T2 W/T3R/L1S/L2 T/L3
Ground
USB Copy Unit
USB Cable
(Type-AB, sold separately)
HOA Keypad
USB Cable (Type-AB)
24 V Power
Supply Unit
AC Reactor
<1> An input side noise filter is built into models CIMR-ZШ2A0011 to 2A0273 and 4A0005 to 4A0302.
Fuses
Figure 6.1 Connecting Peripheral Devices
Note: If the drive is set to trigger a fault output when the fault restart function is activated (L5-02 = 1), then a sequence to interrupt power when
a fault occurs will turn off the power to the drive while the drive attempts to restart. The default setting for L5-02 is 0 (fault output active
during restart).
6.3 Connecting Peripheral Devices
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
249
6
Peripheral Devices & Options

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
