YASKAWA Z1000 User Manual

3.6 HOA Keypad and Front Cover
Detach the HOA keypad from the drive for remote operation or when opening the front cover to install an option card.
NOTICE: Be sure to remove the HOA keypad prior to opening or reattaching the front cover. Leaving the HOA keypad plugged into the drive
when removing the front cover can result in erroneous operation caused by a poor connection. Firmly fasten the front cover back into place
before reattaching the HOA keypad.
u
Removing/Reattaching the HOA Keypad
n
Removing the HOA Keypad
While pressing on the tab located on the right side of the HOA keypad, pull the HOA keypad forward to remove it from the
drive.

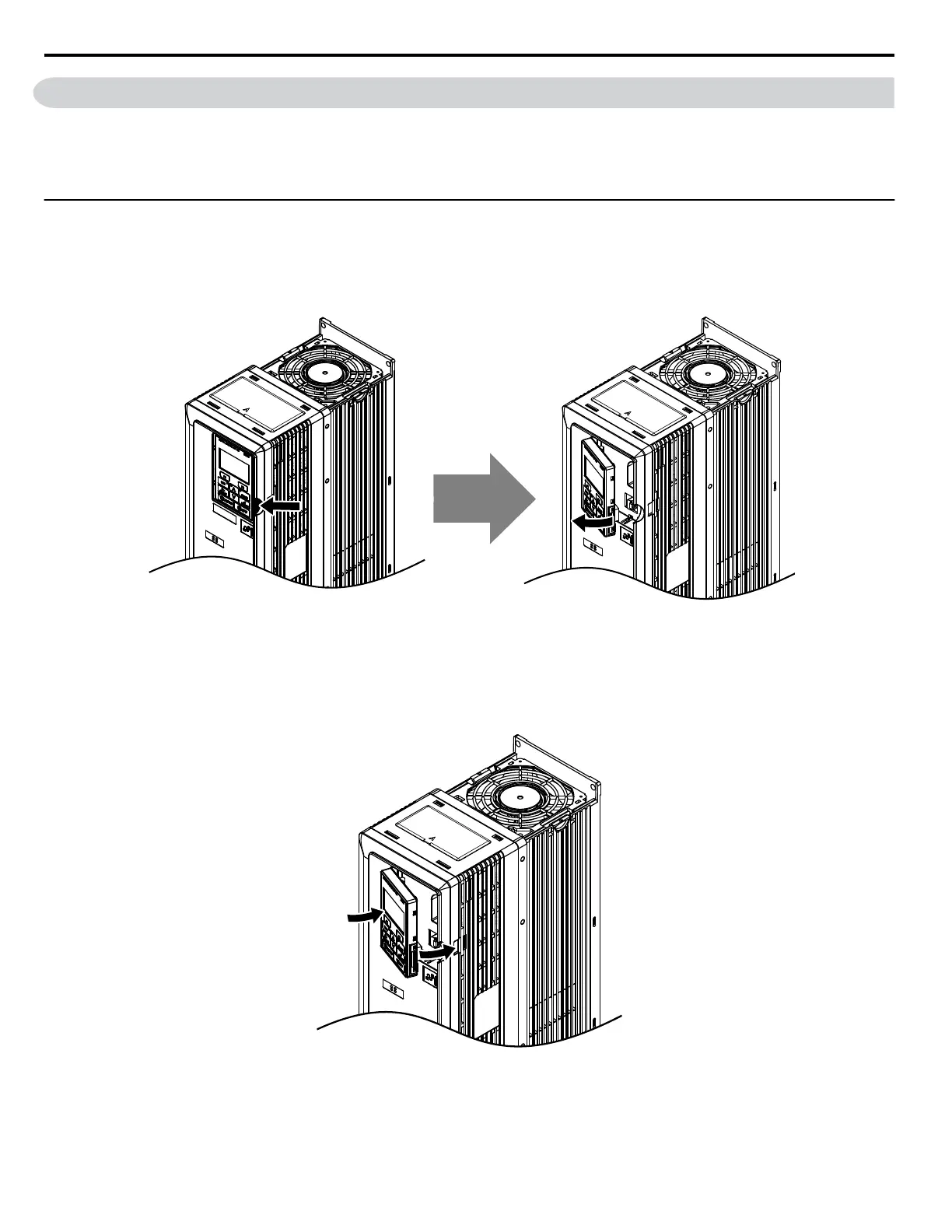

Figure 3.14 Removing the HOA Keypad
n
Reattaching the HOA Keypad
Insert the HOA keypad into the opening in the top cover while aligning it with the notches on the left side of the opening.
Next, press gently on the right side of the keypad until it clicks into place.
Figure 3.15 Reattaching the HOA Keypad
3.6 HOA Keypad and Front Cover
72
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
