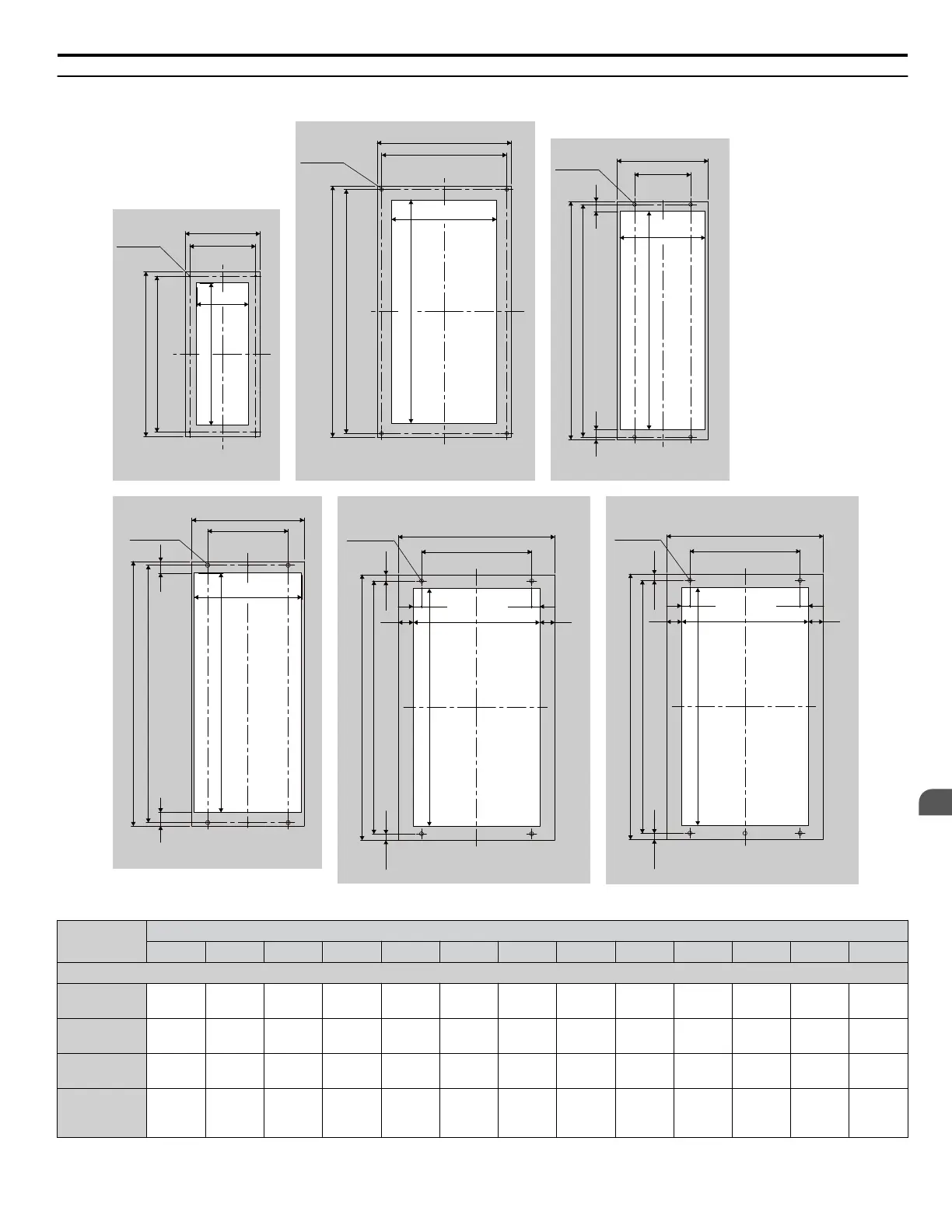

Panel Cut-Out Dimensions
4-M5 Tap
W1
H
H1
B
W
Figure 1
A
4-M6 Tap
W1
A
H
H1
B
W
Figure 2
4-M8 Tap
W1
A
H
H1
H4 H2 H3H5
B
W
Figure 3
4-M10 Tap
W1
H
H1
H4 H2 H3H5
W
Figure 4
A
B
4-M12 Tap
H2 H3H5 H4
W1
W
W3W3
W2 W2
B
A
H1
H
Figure 5
6-M12 Tap
H2 H3H5 H4
W1
W
W3W3
W2 W2
B
A
H1
H
Figure 6
Table 2.2 Panel Cut-Out Dimensions
Drive Model
Dimensions (in)
Figure W H W1 W2 W3 H1 H2 H3 H4 H5 A B
200 V Class
2A0011
2A0017
1 6.7 14.8 5.9 – – 14 – – – – 4.6 12.8
2A0024
2A0031
1 6.7 18.3 5.9 – – 17.5 – – – – 4.6 16.3
2A0046
2A0059
2 7.9 21.1 5.1 – – 20.5 – – – – 7.6 18.6
2A0075
2A0088
2A0114
2 12 22.5 11.2 – – 21.9 – – – – 9.4 20
2.2 Mechanical Installation
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
45
2
Mechanical Installation
