3.7 Top Protective Cover
Drive models 2A0011 to 2A0273 and 4A0011 to 4A0302 are designed to IP20/NEMA 1, UL Type 1 specifications with a
protective cover on the top. Removing this top protective cover voids the NEMA Type 1 protection while maintaining IP20
conformity; removing the bottom conduit bracket voids the NEMA Type 1 protection and IP20 conformity.
u
Removing the Top Protective Cover
n
Removing the Top Protective Cover: 2A0011 to 2A0114 and 4A0005 to 4A0096
Insert the tip of a straight-edge screwdriver into the small opening located on the front edge of the top protective cover. Gently
apply pressure as shown in the figure below to free the cover from the drive.

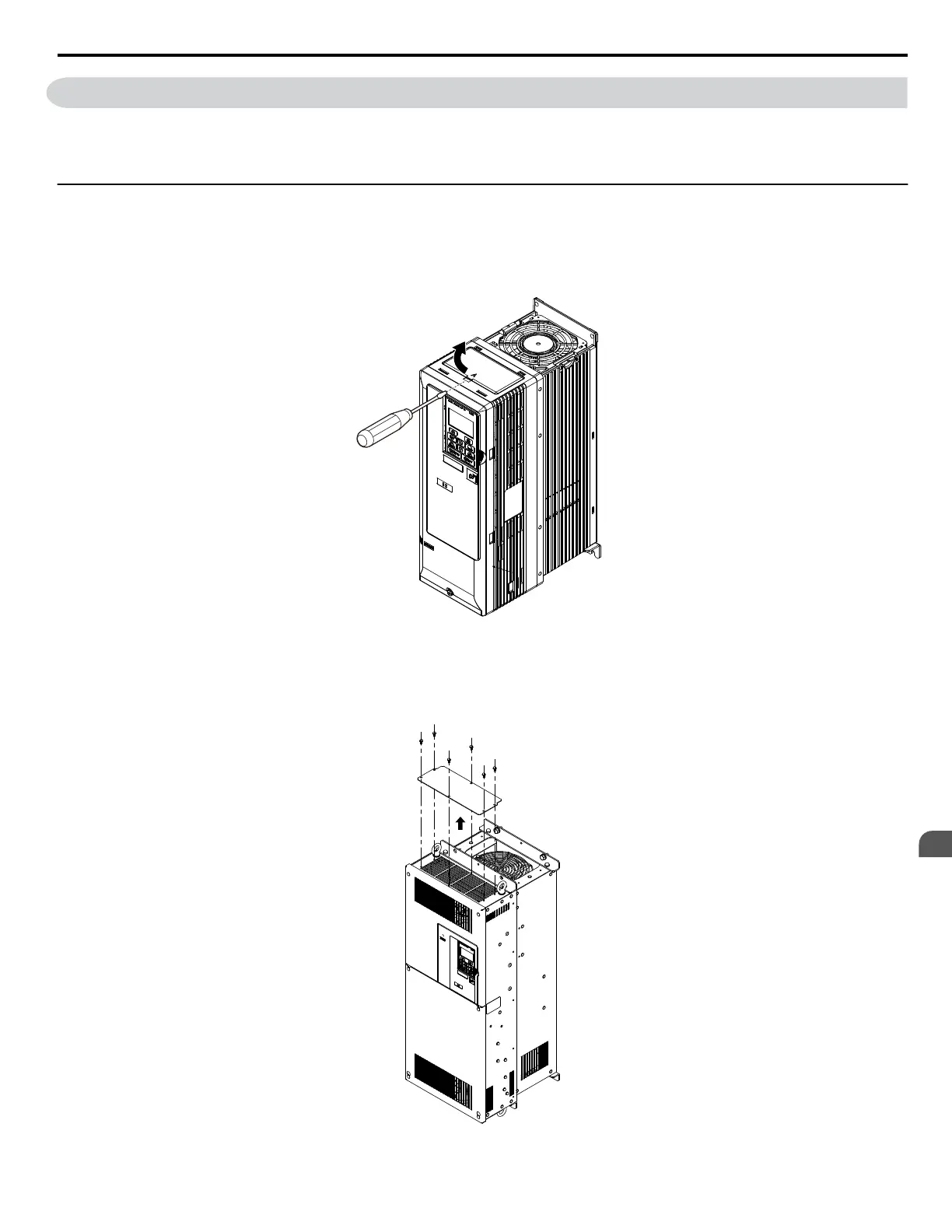

Figure 3.25 Remove the Top Protective Cover (2A0011 to 2A0114 and 4A0005 to 4A0096)
n
Removing the Top Protective Cover: 2A0143 to 2A0273 and 4A0124 to 4A0302
Remove the bolts to remove the top protective cover from the drive.
Figure 3.26 Remove the Top Protective Cover (2A0143 to 2A0273 and 4A0124 to 4A0302)
3.7 Top Protective Cover
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
79
3
Electrical Installation

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
