Wiring to –/+1 Terminals (2A0343 to 2A0396 and 4A0361 to 4A0590)
Wire directly to the –/+1 terminals.
n
Connection Diagrams
Motor
U/T1
W/T3
V/T2
+M
-M

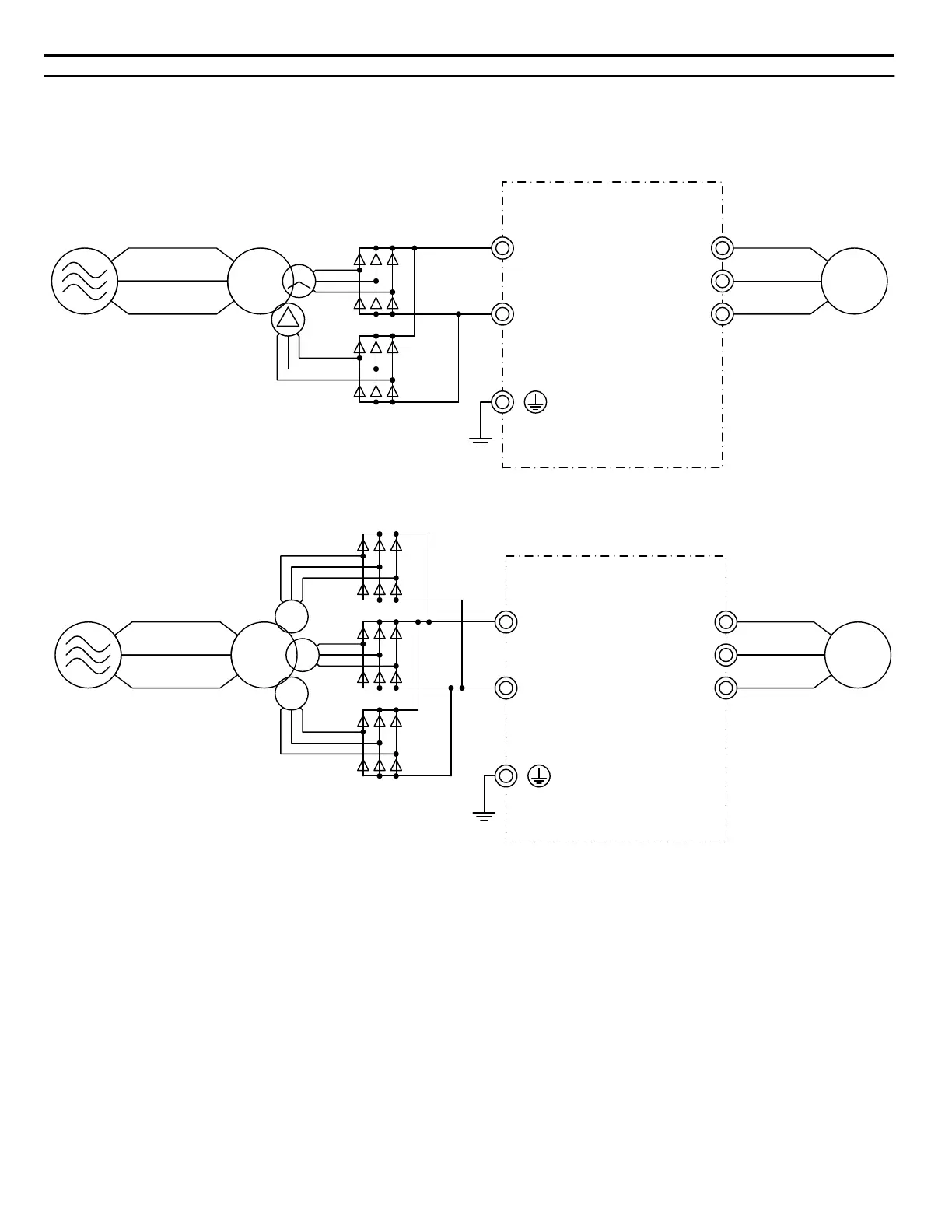

Figure 3.5 12-Pulse Connection Diagram (2A0011 to 2A0273 and 4A0005 to 4A0302)
Motor
U/T1
W/T3
V/T2
+M
-M
0゜
-20゜
+20゜
Figure 3.6 18-Pulse Connection Diagram (2A0011 to 2A0273 and 4A0005 to 4A0302)
3.3 Main Circuit Connection Diagram
