YASKAWA Z1000 User Manual

120 (4.72)
45 (1.77)
59 (2.32)
+0.5 (0.02)
0
89 (3.5)
+0.5 (0.02) 0
Unit : mm (in)

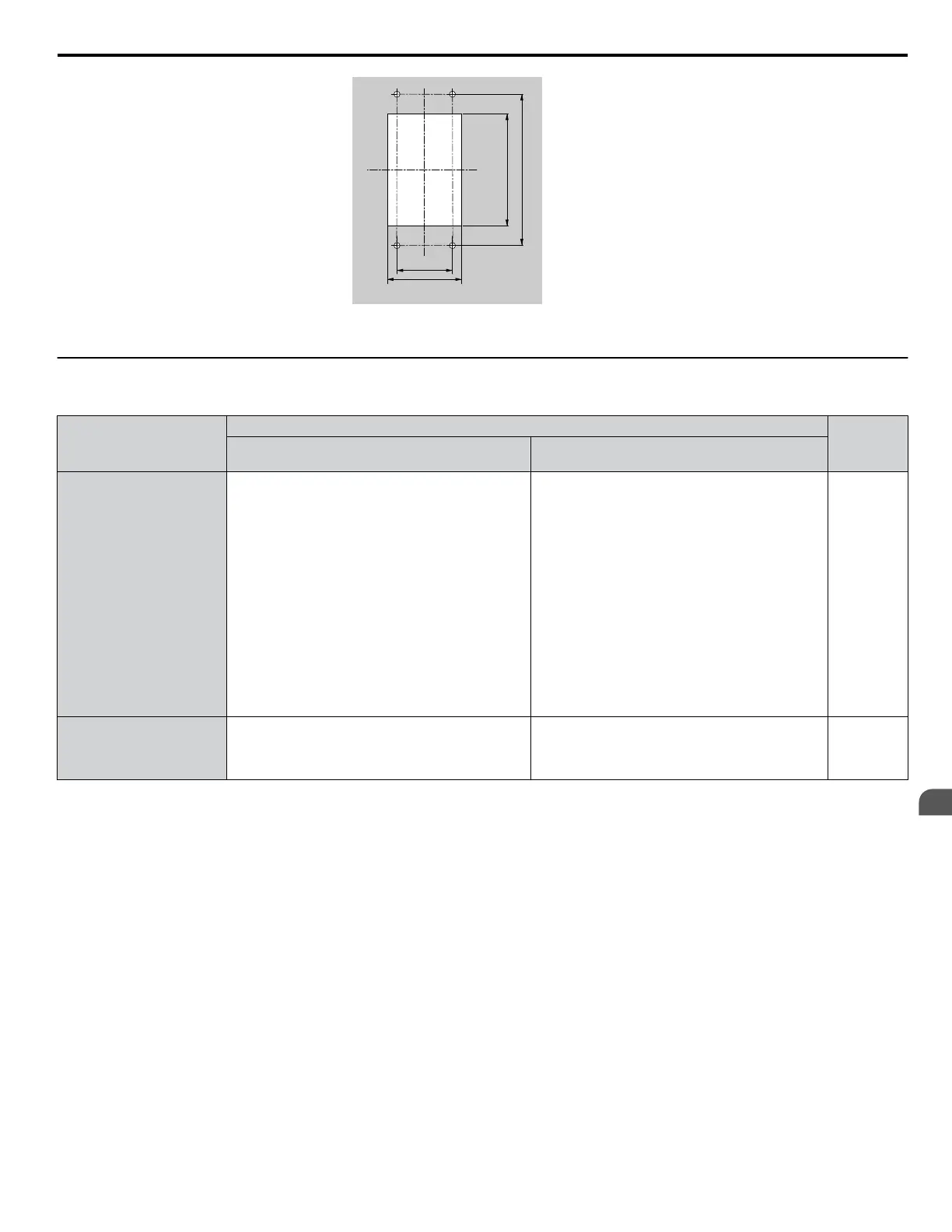

Figure 2.11 Panel Cut-Out Dimensions (Internal/Flush-Mount Installation)
u
Exterior and Mounting Dimensions
Table 2.4 Drive Models and Types
Protective Design
Drive Model
Page
Three-Phase
200 V Class
Three-Phase
400 V Class
IP20/NEMA 1, UL Type 1
Enclosure
2A0011F
2A0017F
2A0024F
2A0031F
2A0046F
2A0059F
2A0075F
2A0088F
2A0114F
2A0143F
2A0169F
2A0211F
2A0273F
4A0005F
4A0008F
4A0011F
4A0014F
4A0021F
4A0027F
4A0034F
4A0040F
4A0052F
4A0065F
4A0077F
4A0096F
4A0124F
4A0156F
4A0180F
4A0240F
4A0302F
50
IP00/Open-Type Enclosure
2A0343A
2A0396A
4A0361A
4A0414A
4A0480A
4A0590A
57
2.2 Mechanical Installation
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
49
2
Mechanical Installation

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
