YASKAWA Z1000 User Manual

u
Wiring Diagram for Multiple Connections
This section explains proper wiring for multiple connections using BACnet communication.
n
RS-485 Interface
Note: The isolated ground (IG) connection is optional but strongly recommended to improve network immunity to electrical interference.
Drive
Drive
Drive
S2
S2
S2
S–
S+
R–
R+
IG
S–
S+
R–
R+
IG
S–
S+
R–
R+
IG
OFF
OFF
ON
R–
R+
S–
S+
IG
Controller

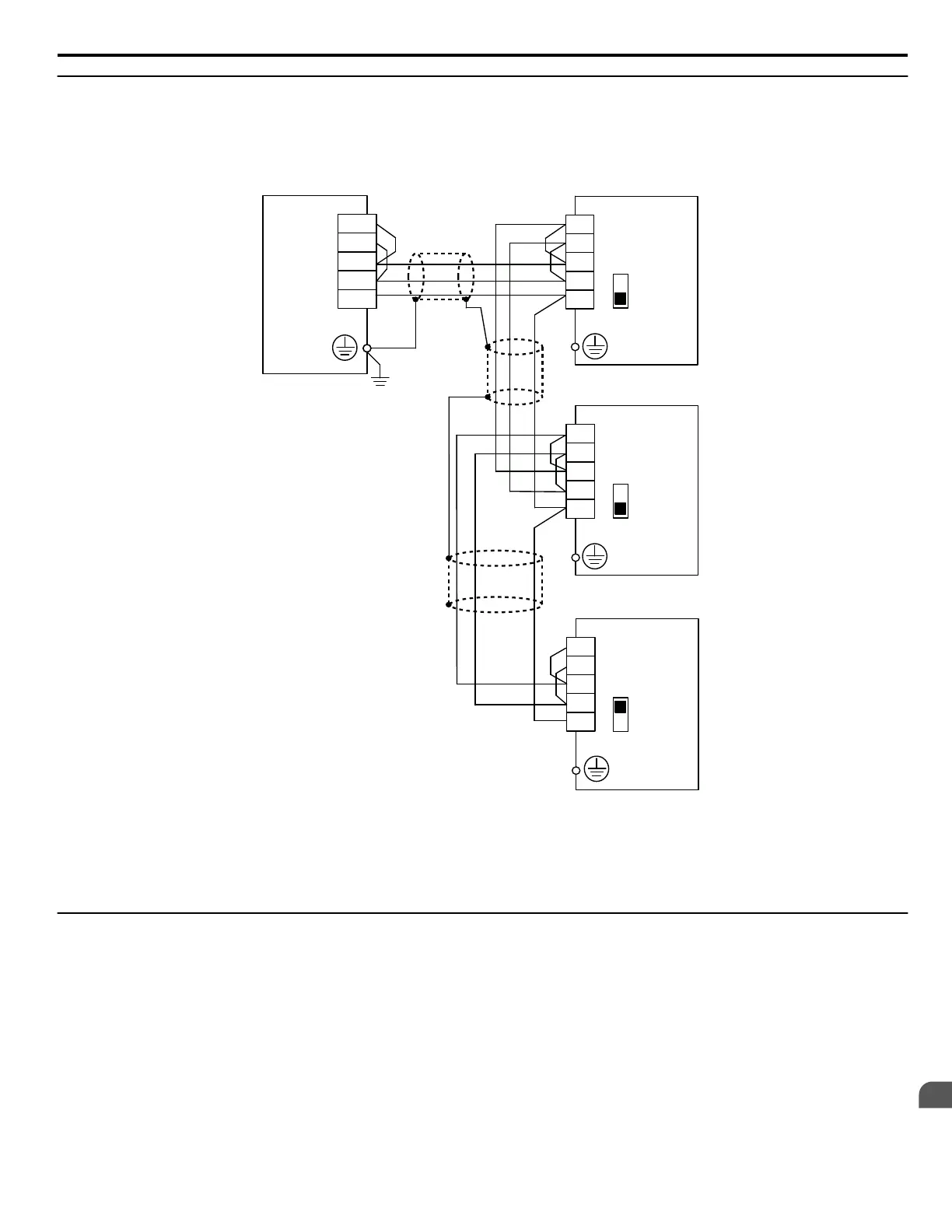

Figure C.3 RS-485 Interface
Note: 1. Set DIP switch S2 to the ON position on the drive located at the end of the network. Set DIP switch S2 to the OFF positions on all other
slave devices.
2. Set H5-07 to 1 when using the RS-485 interface.
u
Network Termination
The two ends of the BACnet network line have to be terminated. The drive has a built in termination resistor that can be enabled
or disabled using DIP switch S2. If a drive is located at the end of a network line, enable the termination resistor by setting
DIP switch S2 to the ON position. Disable the termination resistor on all slaves that are not located at the network line end.
C.3 Connecting to a Network
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
345
C
BACnet Communications

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
