YASKAWA Z1000 User Manual

1.3 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
u
Drive Nameplate
H
G
F
E
B
A
PRG:
IND.CONT.EQ.
7J48
YASKAWA ELECTRIC CORPORATION Assembled in USA
: CIMR-Z
PASS
MODEL
INPUT
OUTPUT
MASS
O / N
S / N
REV :
: AC3PH 200-240V 50/60Hz 10.6A
: AC3PH 0-240V 0-240Hz 10.6A
: 5.6 kg
: 6W3050-2-100 VAJ123456
: J0073D207410100
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
D
□□□□
FRONT = IP20 AND TYPE1 FILE NO: E131457
BACKSIDE = IP20 AND TYPE12
C
C/C : CIMR-Z
A – Software version
B –
Address
<1>
C – Enclosure type
D – Serial number
E – Lot number
F – Output specifications
G – Input specifications
H – AC drive model

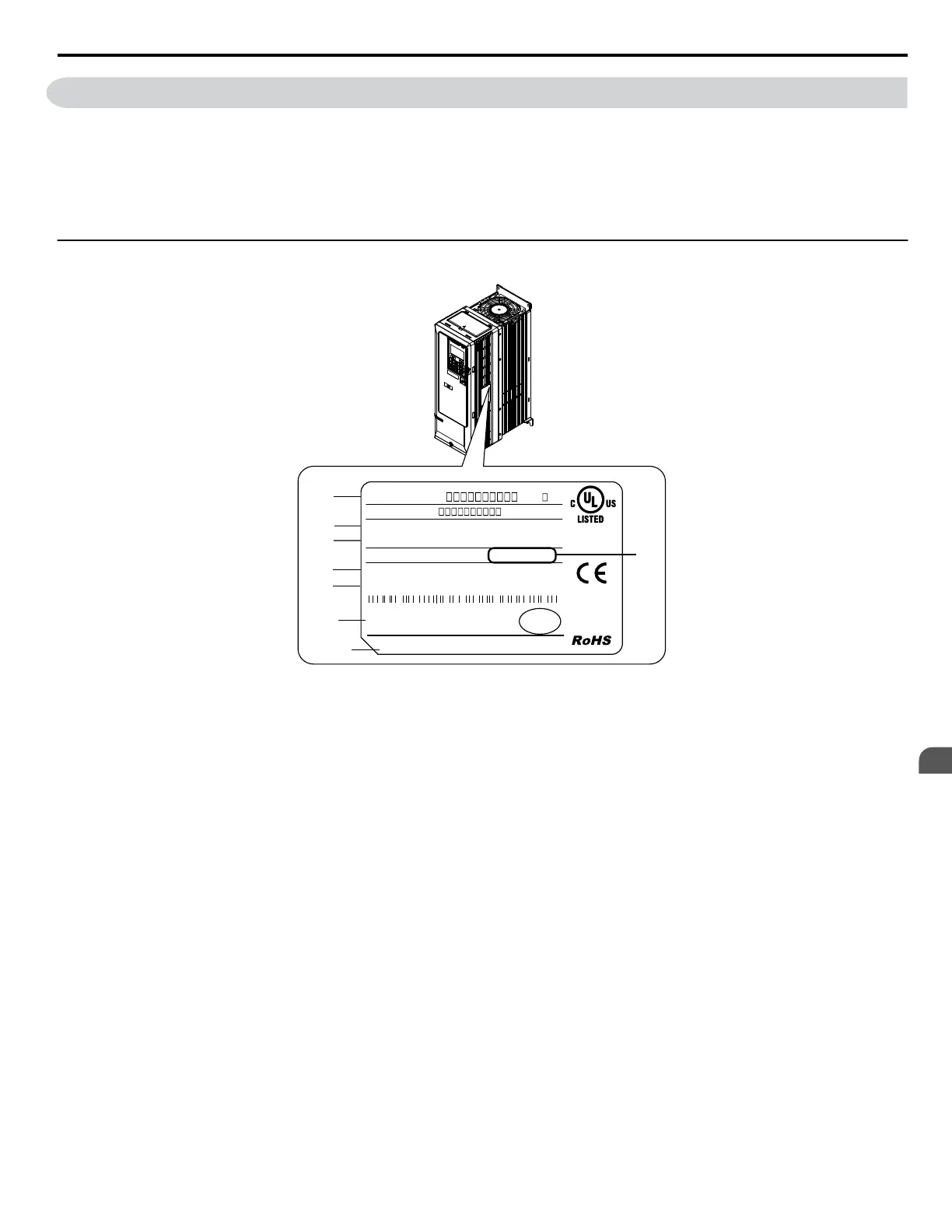

Figure 1.1 Drive Nameplate Information Example
<1> The address of the head office of Yaskawa Electric Corporation (responsible for product liability) is shown on the nameplate.
1.3 Model Number and Nameplate Check
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
27
1
Receiving

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
