Reattaching the Terminal Cover
After wiring the terminal board and other devices, double-check connections and reattach the terminal cover. Refer to Wiring
the Main Circuit Terminal on page 90 and Wiring the Control Circuit Terminal on page 95 for details on wiring.

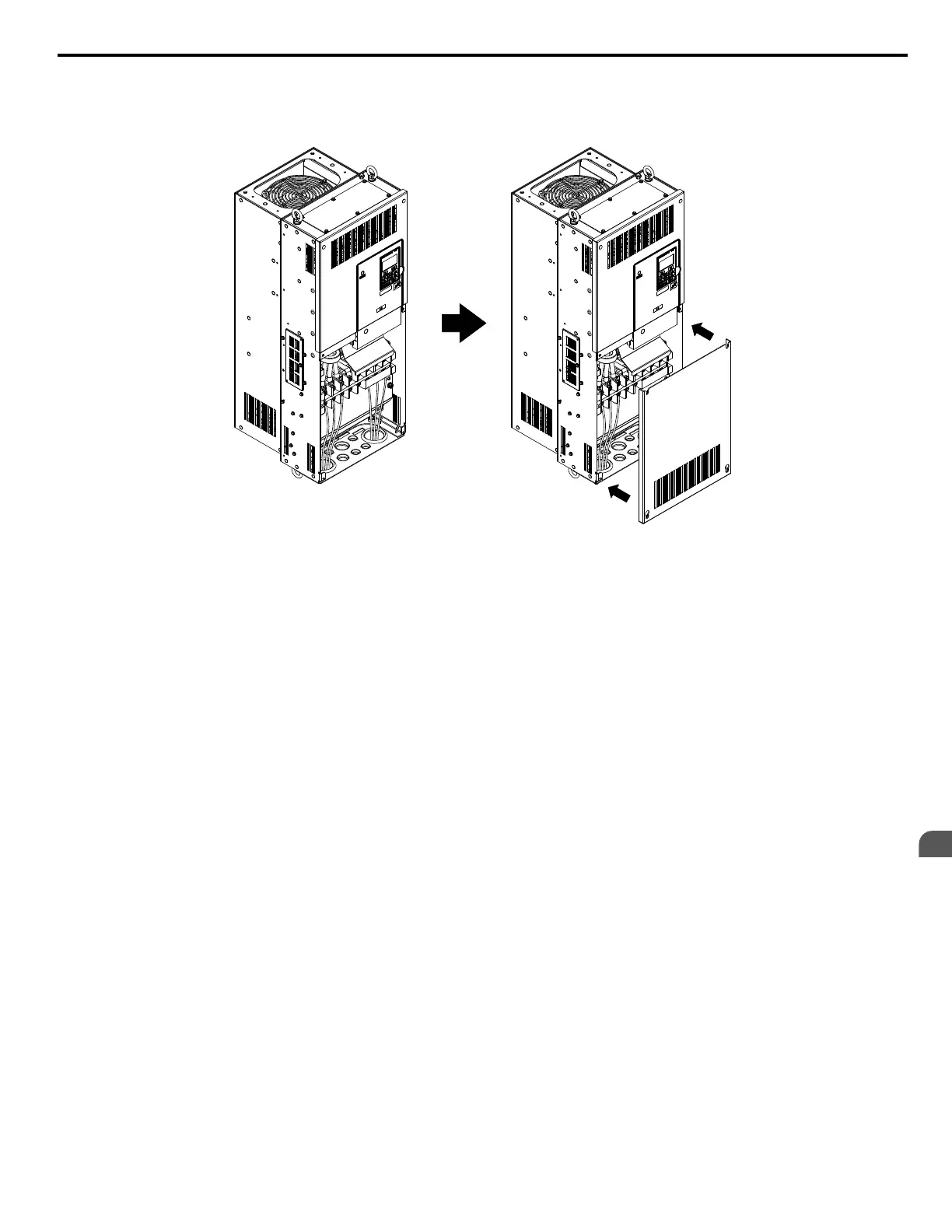

Figure 3.13 Reattaching the Terminal Cover
Note: Connect the ground wiring first, then the main circuit wiring, and finally the control circuit wiring.
3.5 Terminal Cover
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual
71
3
Electrical Installation
