YASKAWA Z1000 User Manual

3.
Insert the CN5 connector on the option card (B) into the matching CN5 connector on the drive (I), then fasten it into
place using one of the screws (C) included with the option card.
I
B
C

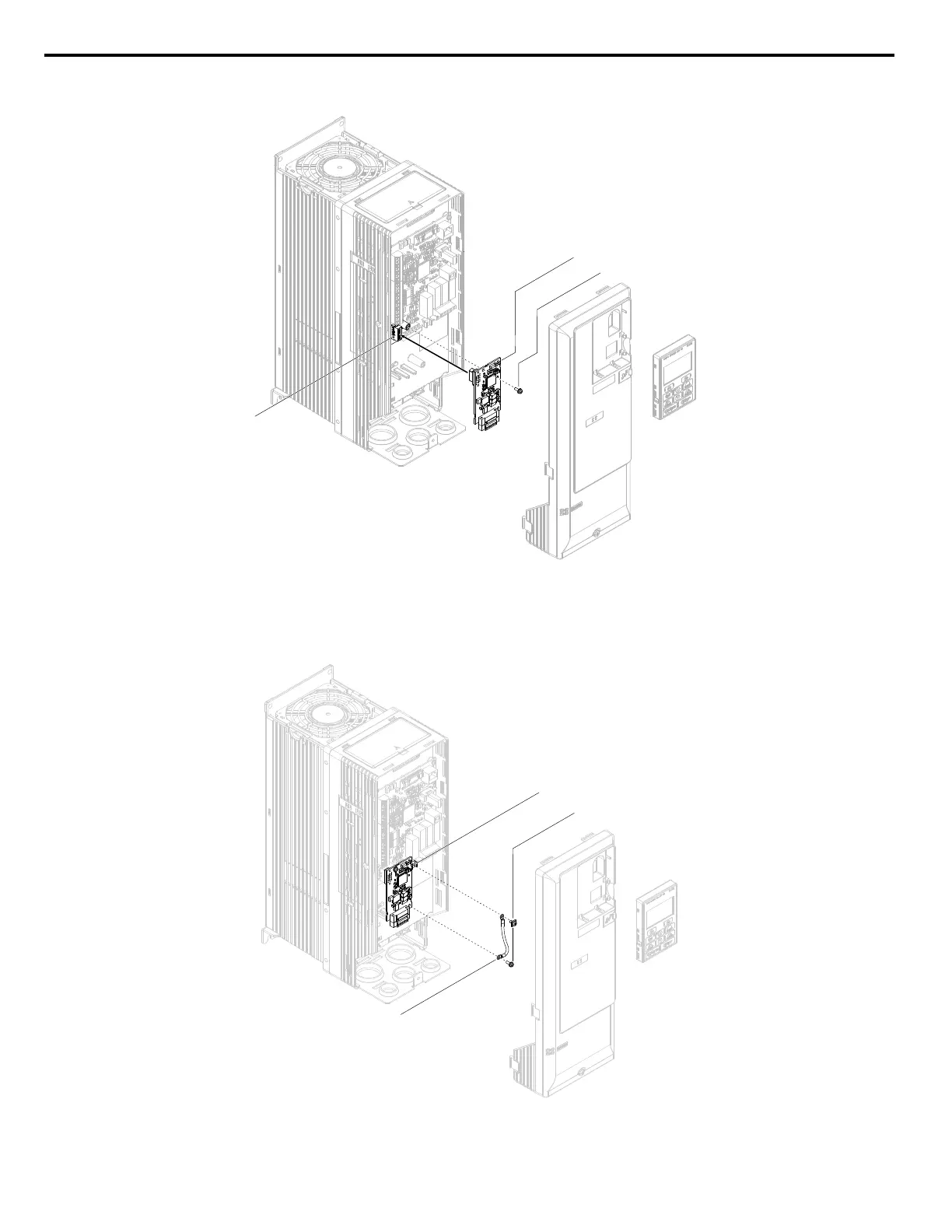

Figure 6.5 Insert the Option Card
4.
Connect the ground wire (G) to the ground terminal (A) using one of the remaining provided screws (C). Connect the
other end of the ground wire (G) to the ground terminal and installation hole on the option using the last remaining
provided screw (C).
G
C
A
Figure 6.6 Connect the Ground Wire
6.4 Option Installation
252
YASKAWA ELECTRIC TOEP C710616 45F YASKAWA AC Drive – Z1000 User Manual

YASKAWA Z1000 Specifications

General

Model	Z1000
Category	Controller
Humidity	95% RH or less (non-condensing)
Control Method	V/F Control
Frequency Range	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 meters without derating
Cooling Method	Forced Air
Enclosure Rating	IP20
Voltage Class	200V, 400V
