Chapter 3 PERFORMING MEASUREMENTS
3-57

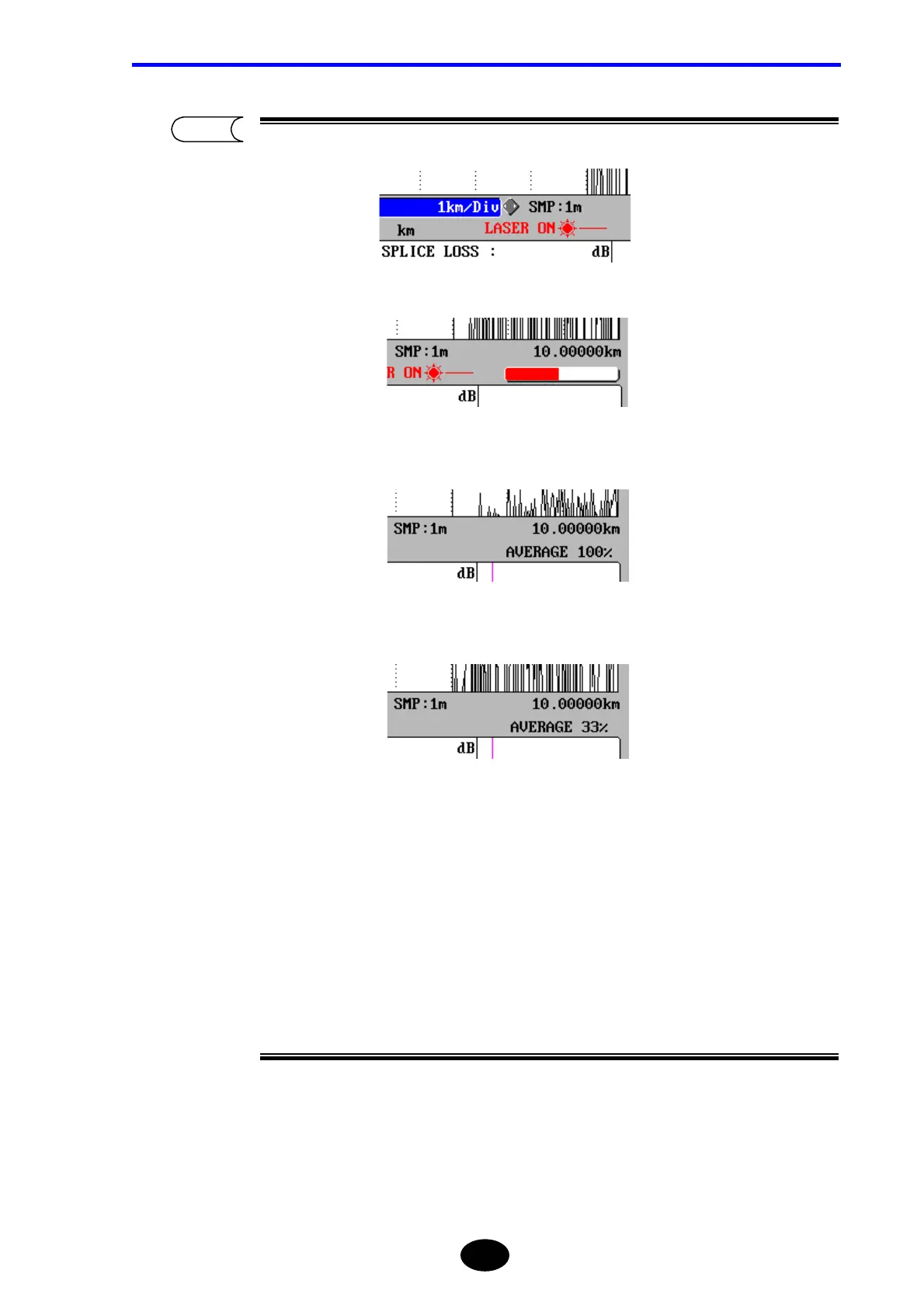

•A message “LASER ON” is displayed during measurement.
•The following bar showing progress will appear during measurement.
•Average measurement will end automatically, and “100%” will be displayed when it
is completed successfully.
•If [AVE] is pressed during measurement, measurement will stop and the progress
of averaging performed so far will be displayed.
•Time required up to the end of measurement varies with measurement conditions
(distance range, average time).
•Information such as label and operator’s name can be added to the trace during
measurement.
•If the event search function has been set to AUTO, an event search is performed
when a measurement is successfully completed.
•If the measured data auto saving function has been set to ON, the measured data
is saved in a selected storage media when a measurement is successfully
completed.
TIP
