YOKOGAWA UT55A User Manual

10-3
IM 05P01C31-01EN
Output(ControlandRetransmission)Functions
10
Two-positionTwo-levelControlOutput
Two-position Two-level Control is equipped only with Heating/cooling type (Suffix code:
Type1=-2).
► Two-position two-level control output: 8.1.1 Single-loop Control, Single-loop Heating/cooling
Control, Single-loop Position Proportional Control, and Single-loop Two-position Two-level
Control
► Two-position two-level control: 8.2.4 Two-position Two-level Control
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
OT
Output type
selection
EASY
Control output or Heating-side
control output (Lower two digits)
00: OFF
01: OUT terminals (voltage pulse)
02: OUT terminals (current)
03: OUT terminals (relay/triac)
04: OUT2 terminals (voltage
pulse)
05: OUT2 terminals (current)
06: OUT2 terminals (relay/triac)
Cooling-side control output (Upper
two digits)
00: OFF
01: OUT terminals (voltage pulse)
02: OUT terminals (current)
03: OUT terminals (relay/triac)
04: OUT2 terminals (voltage
pulse)
05: OUT2 terminals (current)
06: OUT2 terminals (relay/triac)
OUT
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
 CAUTION
No output is generated even if the terminal which is not provided is selected.
Confirm that the terminal to be selected is provided.
For each output terminal number, see 17.4, “Wiring.”
Set a control mode, control type, and an input type before setting an output type.
► Controlmode:8.1SettingControlMode(CTLM)
► Controltype:8.2SettingControlType(CNT)
► Inputtype:7.1.1SettingInputType,Unit,Range,Scale,andDecimalPointPosition
ControlOutput(PIDControl,ON/OFFControl,SamplePIControl,BatchPID
Control,orFeedforwardControl)ofStandardtype

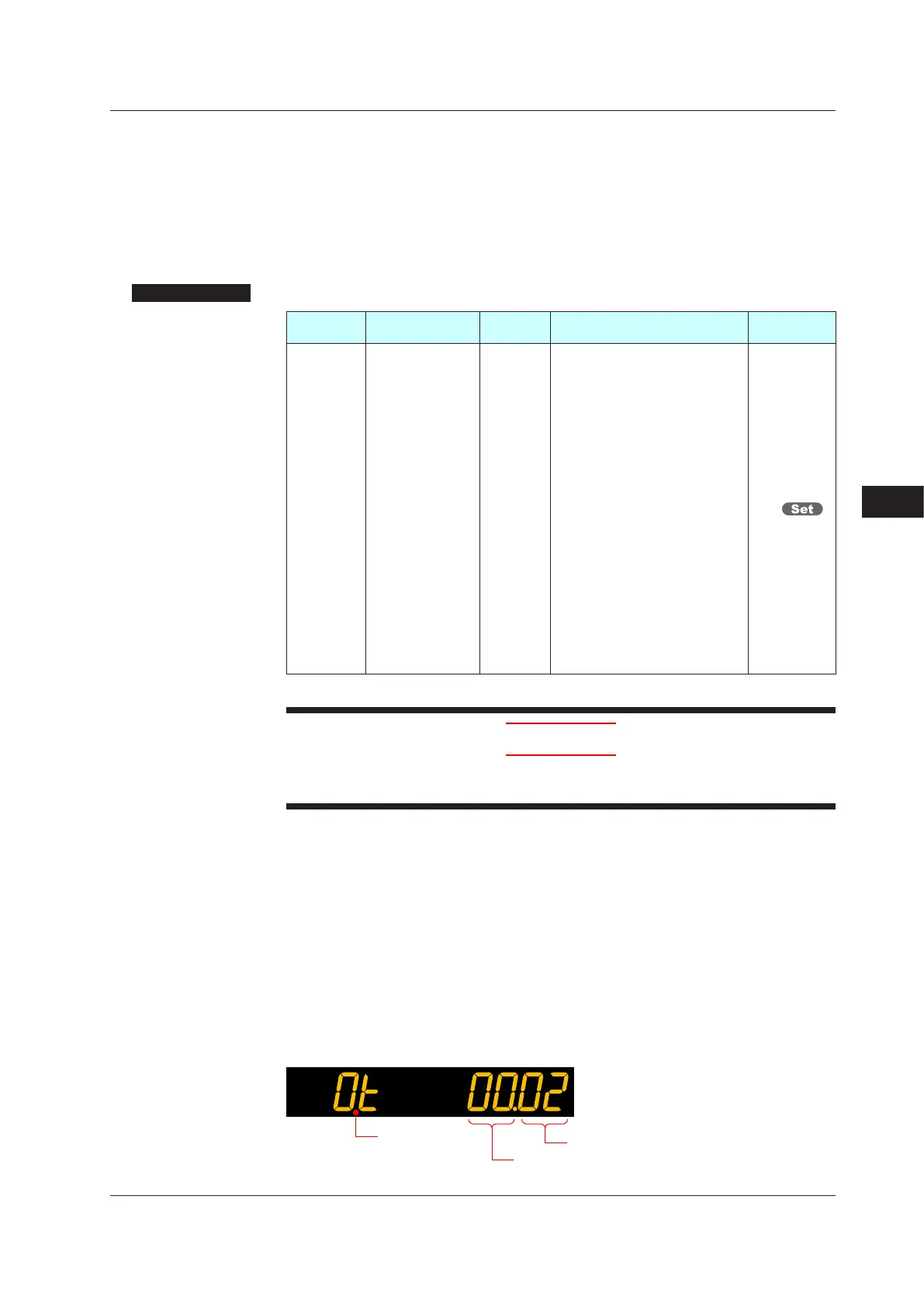

The figure below shows an example of setting the current output of the OUT terminal to
the control output terminal and type. Set “02” to lower two digits and “00” to upper two
digits.
Control output terminal and type
00
Symbol
10.1SettingControlOutputType
