Imaging Preferences 5 - 11
Crop to Pixel Addresses
Parameter # 315 (SSI # F4h F0h 3Bh) (Top)
Parameter # 316 (SSI # F4h F0h 3Ch) (Left)
Parameter # 317 (SSI # F4h F0h 3Dh) (Bottom)
Parameter # 318 (SSI # F4h F0h 3Eh) (Right)
If you selected Enable Image Cropping, set the pixel addresses from (0,0) to (1279 x 799) to crop to.
Columns are numbered from 0 to 1279, rows from 0 to 799. Specify four values for Top, Left, Bottom, and
Right, where Top and Bottom correspond to row pixel addresses, and Left and Right correspond to column
pixel addresses. For example, for a 4 row x 8 column image in the extreme bottom-right section of the image
set the following values:
Top = 796, Bottom = 799, Left = 1272, Right = 1279
To set the crop to pixel address, scan each pixel address bar code below followed by four numeric bar codes
representing the value. Leading zeros are required. For example, to crop the top pixel address to 3, scan 0, 0,
0, 3. See Appendix G, Numeric Bar Codes for numeric bar codes. The defaults are:
Top = 0, Bottom = 799, Left = 0, Right = 1279
NOTE The digital scanner has a cropping resolution of 4 pixels. Setting the cropping area to less than 4 pixels
(after resolution adjustment, see Image Size (Number of Pixels) on page 5-12) transfers the entire image.

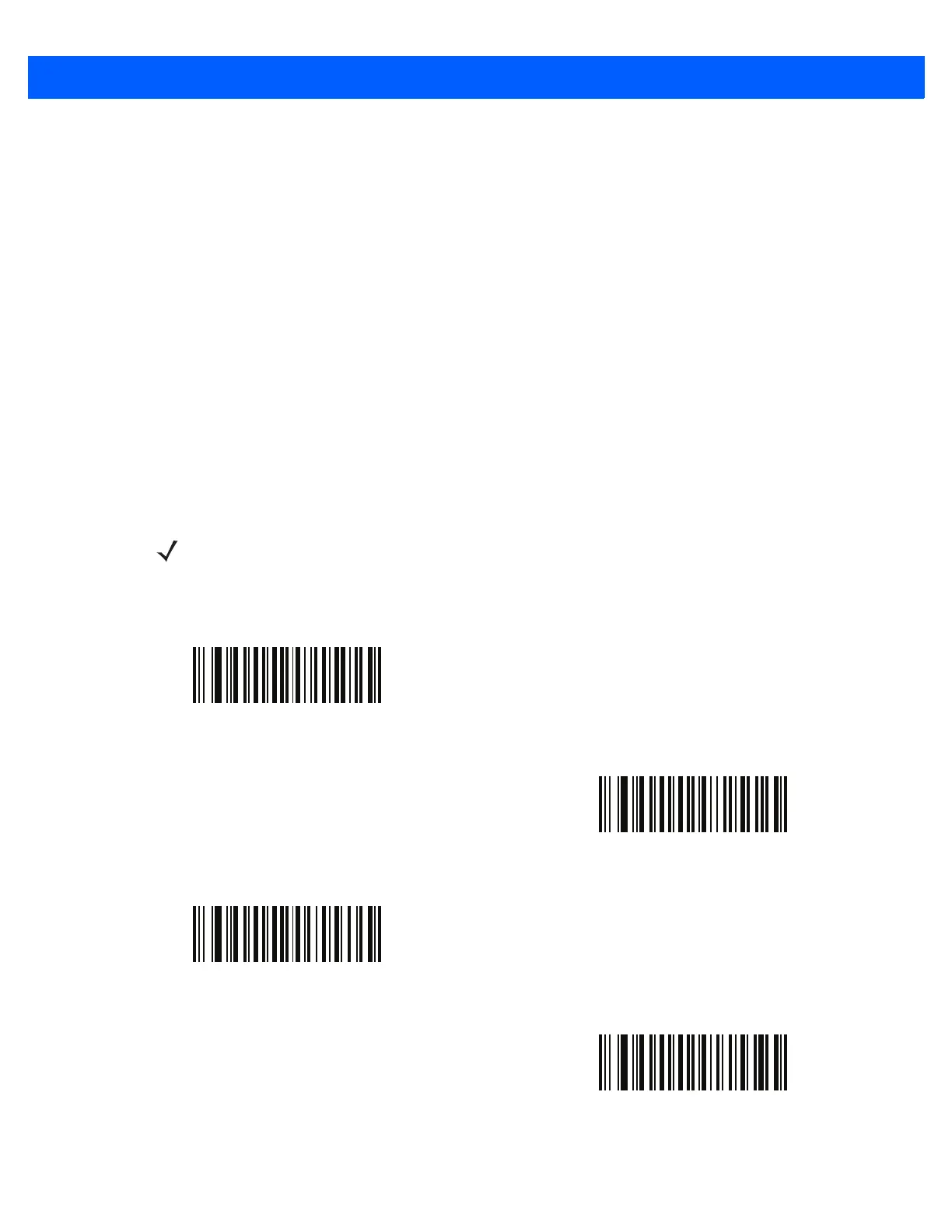

Top Pixel Address
(0 - 799 Decimal)
Left Pixel Address
(0 - 1279 Decimal)
Bottom Pixel Address
(0 - 799 Decimal)
Right Pixel Address
(0 - 1279 Decimal)
To Next Page
