Zebra DS4308 - Video Mode Format Selector; Video View Finder

To Next Page

To Previous Page

Imaging Preferences 5 - 23

Video Mode Format Selector

Parameter # 916 (SSI # F2h 94h)

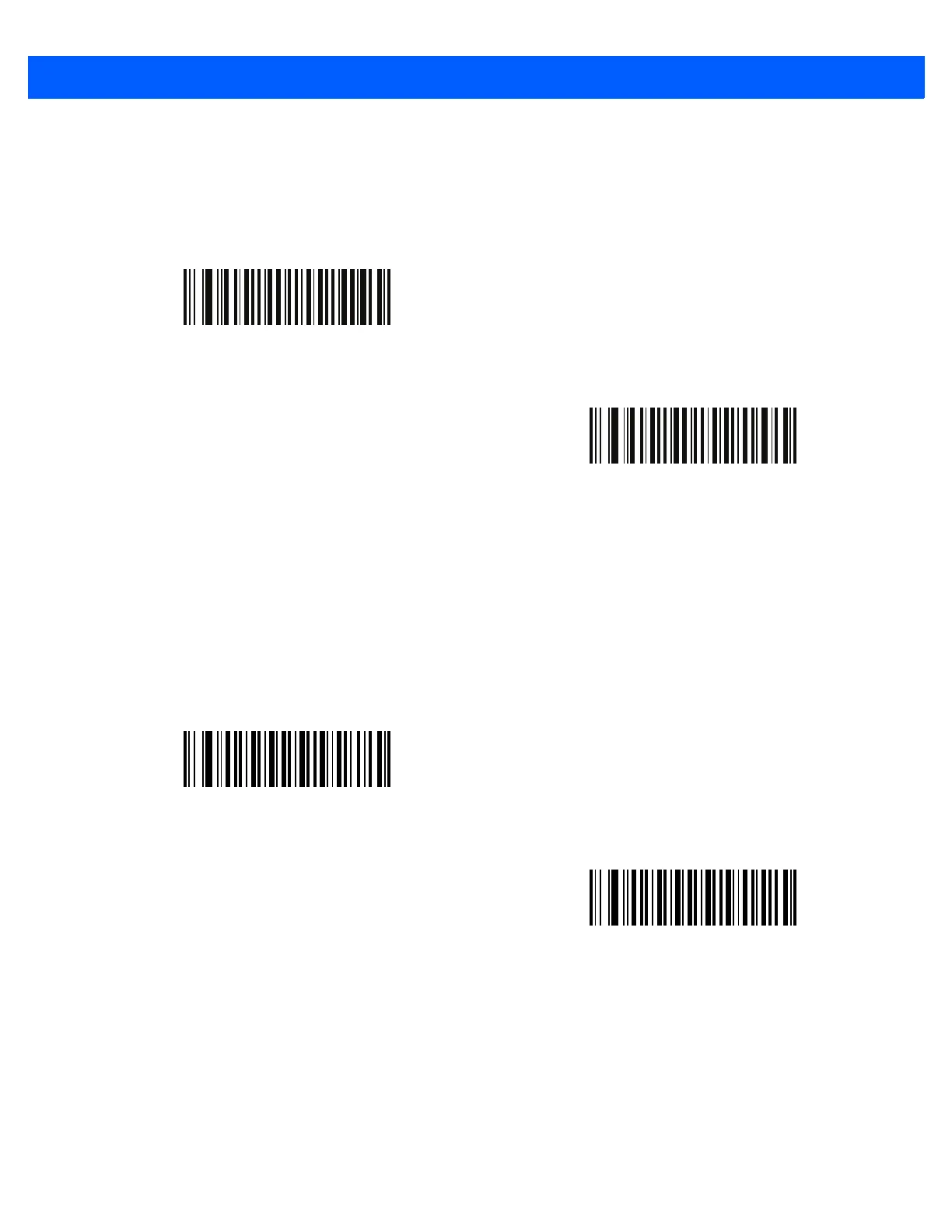

When the digital imager scanner is in Video Mode, select whether to send data in BMP or JPEG format.

Video View Finder

Parameter # 324 (SSI # F0h 44h)

Select Enable Video View Finder to project the video view finder while in Video Mode, or Disable Video View

Finder to turn the video view finder off.

BMP File Format

(3)

*JPEG File Format

(1)

*Disable Video View Finder

(0)

Enable Video View Finder

(1)
