Symbologies 11 - 67

Korean 3 of 5

Enable/Disable Korean 3 of 5

Parameter # 581 (SSI # F1h 45h)

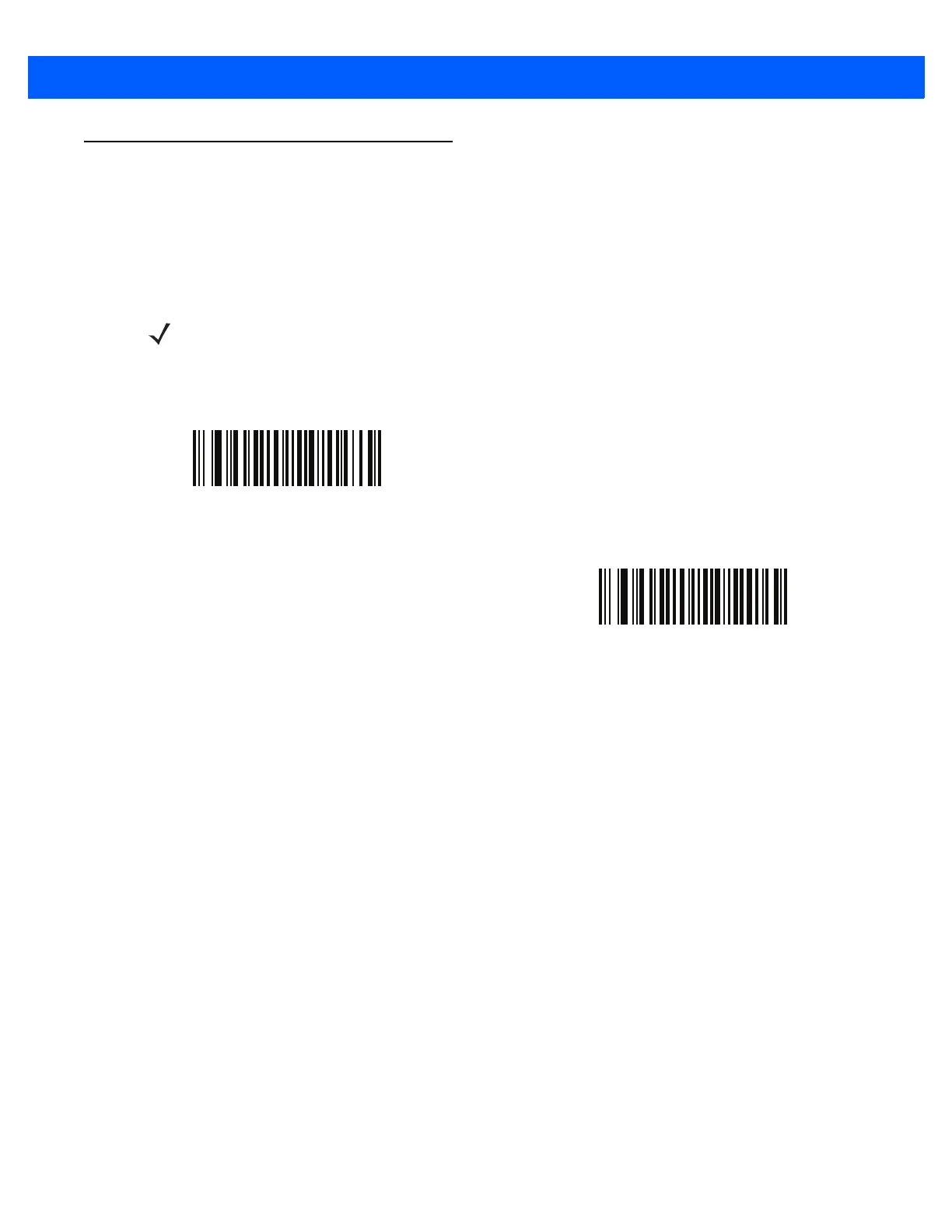

To enable or disable Korean 3 of 5, scan the appropriate bar code below.

NOTE The length for Korean 3 of 5 is fixed at 6.

Enable Korean 3 of 5

(1)

*Disable Korean 3 of 5

(0)

DS4308/DS4308P Product Reference Guide1
