5 - 22 DS4308/DS4308P Digital Scanner Product Reference Guide
Signature Capture Width
Parameter # 366 (SSI # F4h F0h 6Eh)
The aspect ratio of the Signature Capture Width and Signature Capture Height parameters must match that of
the signature capture area. For example, a 4 x 1 inch signature capture area would require a 4 to 1 aspect ratio
of width to height.
To set the width of the signature capture box, scan the Signature Capture Width bar code, followed by 4 bar
codes from Appendix G, Numeric Bar Codes corresponding to a value in the range of 001 to 1280 decimal.
Signature Capture Height
Parameter # 367 (SSI # F4h F0h 6Fh)
To set the height of the signature capture box, scan the Signature Capture Height bar code, followed by 3 bar
codes from Appendix G, Numeric Bar Codes corresponding to a value in the range of 001 to 800 decimal.
Signature Capture JPEG Quality
Parameter # 421 (SSI # F0h A5h)
Scan the JPEG Quality Value bar code followed by 3 bar codes from Appendix G, Numeric Bar Codes
corresponding to a value from 005 to 100, where 100 represents the highest quality image.

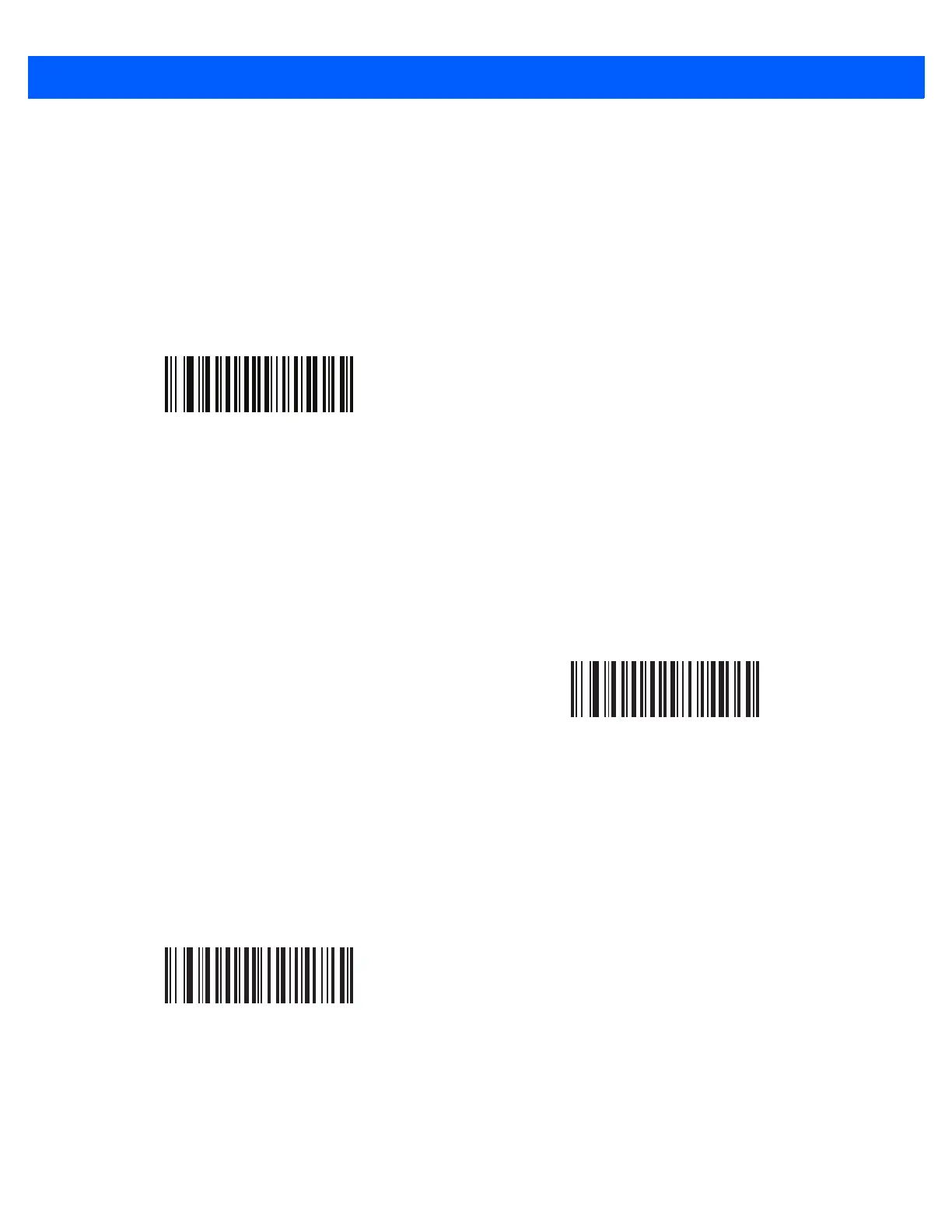

Signature Capture Width
(Default: 400)
(001 - 1280 Decimal)
Signature Capture Height (Default: 100)
(001 - 800 Decimal)
JPEG Quality Value (Default: 065)
(5 - 100 Decimal)
To Next Page
