11 - 68 DS4308/DS4308P Digital Scanner Product Reference Guide

Inverse 1D

Parameter # 586 (SSI # F1h 4Ah)

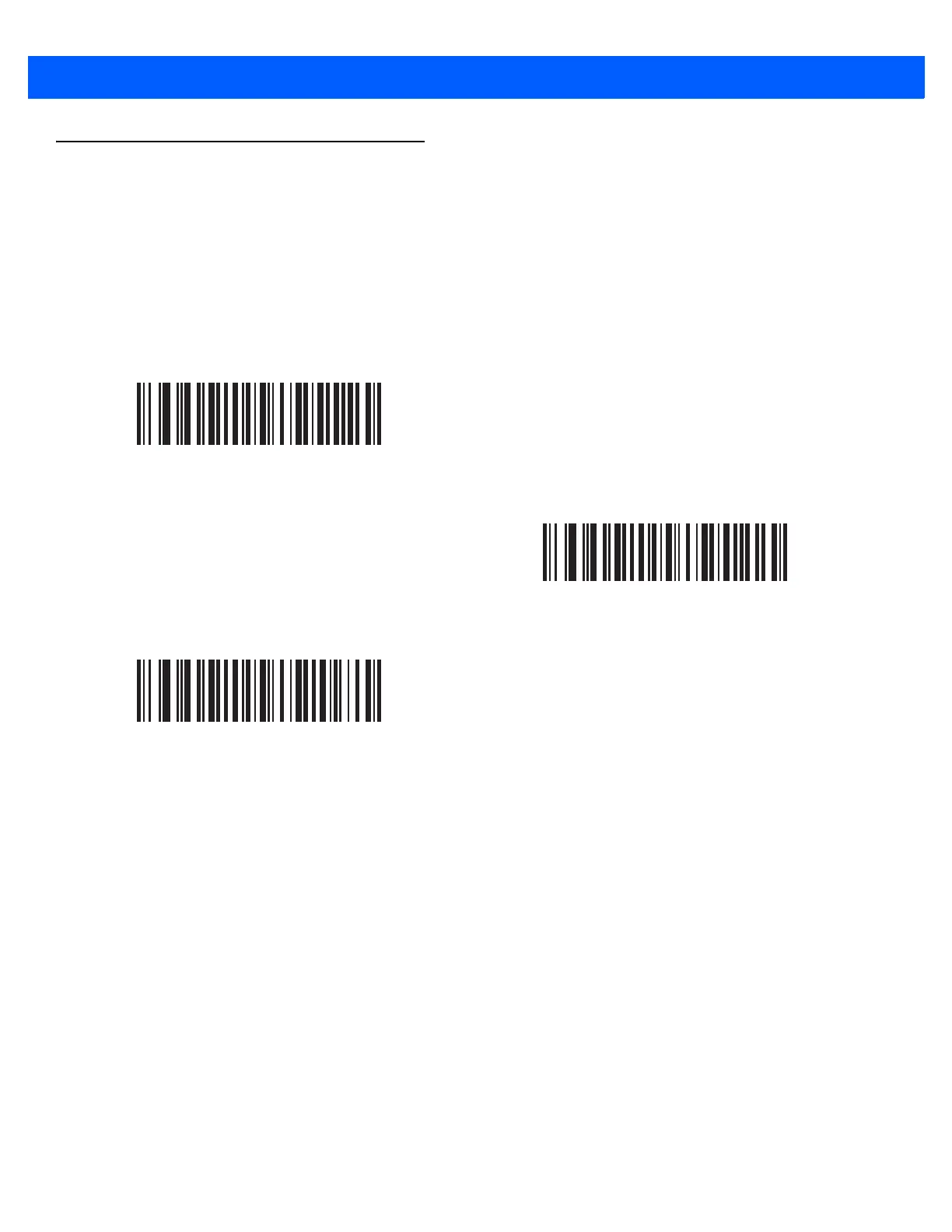

This parameter sets the 1D inverse decoder setting. Options are:

•

Regular Only - the digital scanner decodes regular 1D bar codes only.

•

Inverse Only - the digital scanner decodes inverse 1D bar codes only.

•

Inverse Autodetect - the digital scanner decodes both regular and inverse 1D bar codes.

*Regular

(0)

Inverse Only

(1)

Inverse Autodetect

(2)
