1 - 4 DS4308/DS4308P Digital Scanner Product Reference Guide
Removing the Interface Cable
1. Press the cable’s modular connector clip through the access slot in the digital scanner’s base. For the
DS4308P, tip the scanner forward in its base to best access the slot.

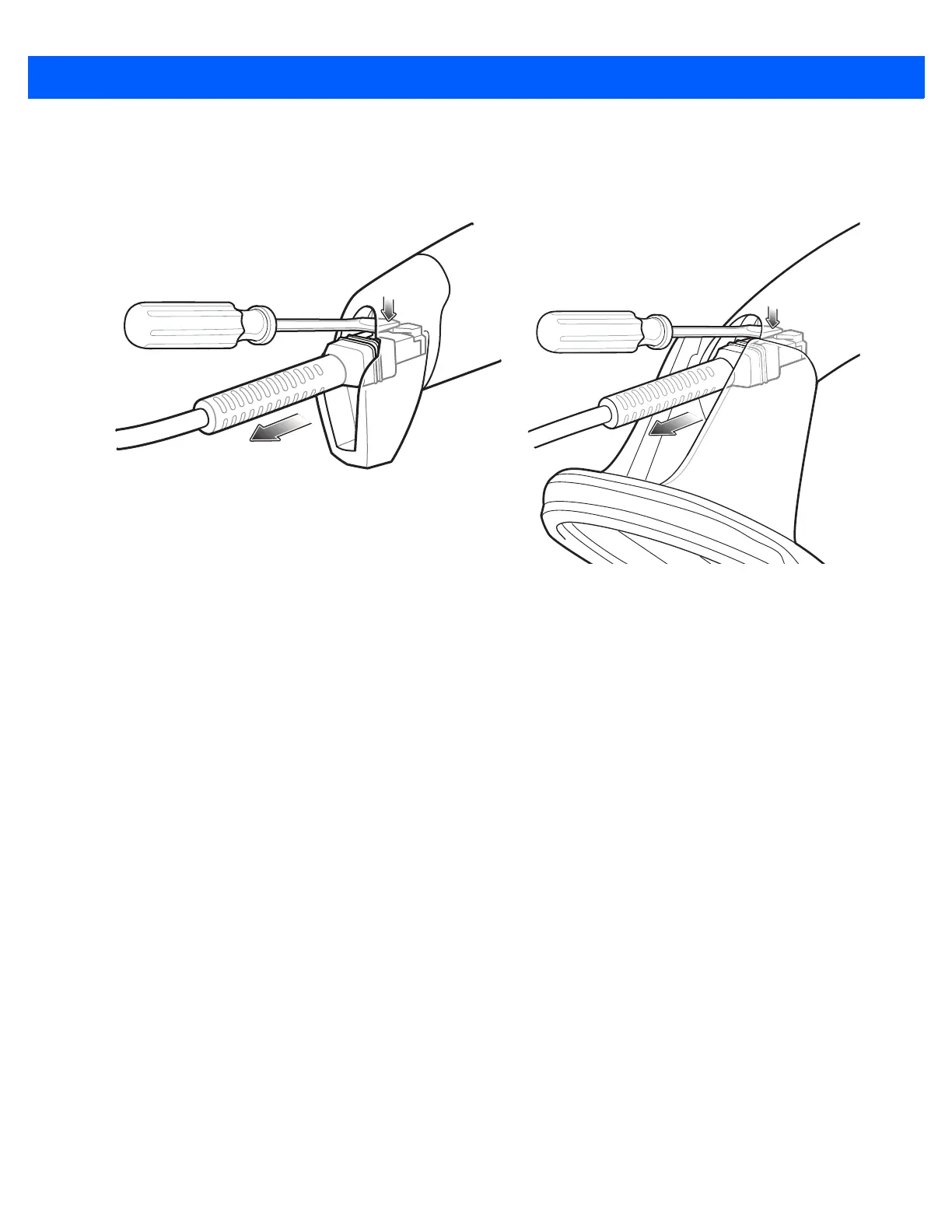

Figure 1-3 Removing the Cable - DS4308 and DS4308P
2. Carefully slide out the cable.
3. Follow the steps for Installing the Interface Cable to connect a new cable.
Connecting Power (if required)
If the host does not provide power to the digital scanner, connect an external power supply.
1. Plug the power supply into the power jack on the interface cable.
2. Plug the other end of the power supply into an AC outlet.
Configuring the Digital Scanner
To configure the digital scanner use the bar codes included in this manual, or use the 123Scan
2
configuration
program. See Chapter 4, User Preferences & Miscellaneous Options, and Chapter 11, Symbologies for
information about programming the digital scanner using bar code menus. See Chapter 15, 123Scan2 for
information on using this configuration program. Also see each host-specific chapter to set up connection to a
specific host type.

Zebra DS4308 Specifications

General

Sealing	IP42
Connectivity	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Decode Capability	1D, 2D, PDF417
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Operating Temperature	32° to 104° F/0° to 40° C
Storage Temperature	-40° to 158° F/-40° to 70° C
Humidity	5% to 95% (non-condensing)
Weight	5.7 oz./161.9 g
Dimensions	6.5 in. H x 2.6 in. W x 3.6 in. D 16.5 cm H x 6.6 cm W x 9.1 cm D
