11 - 62 DS4308/DS4308P Digital Scanner Product Reference Guide

MSI Check Digit Algorithm

Parameter # 51 (SSI # 33h)

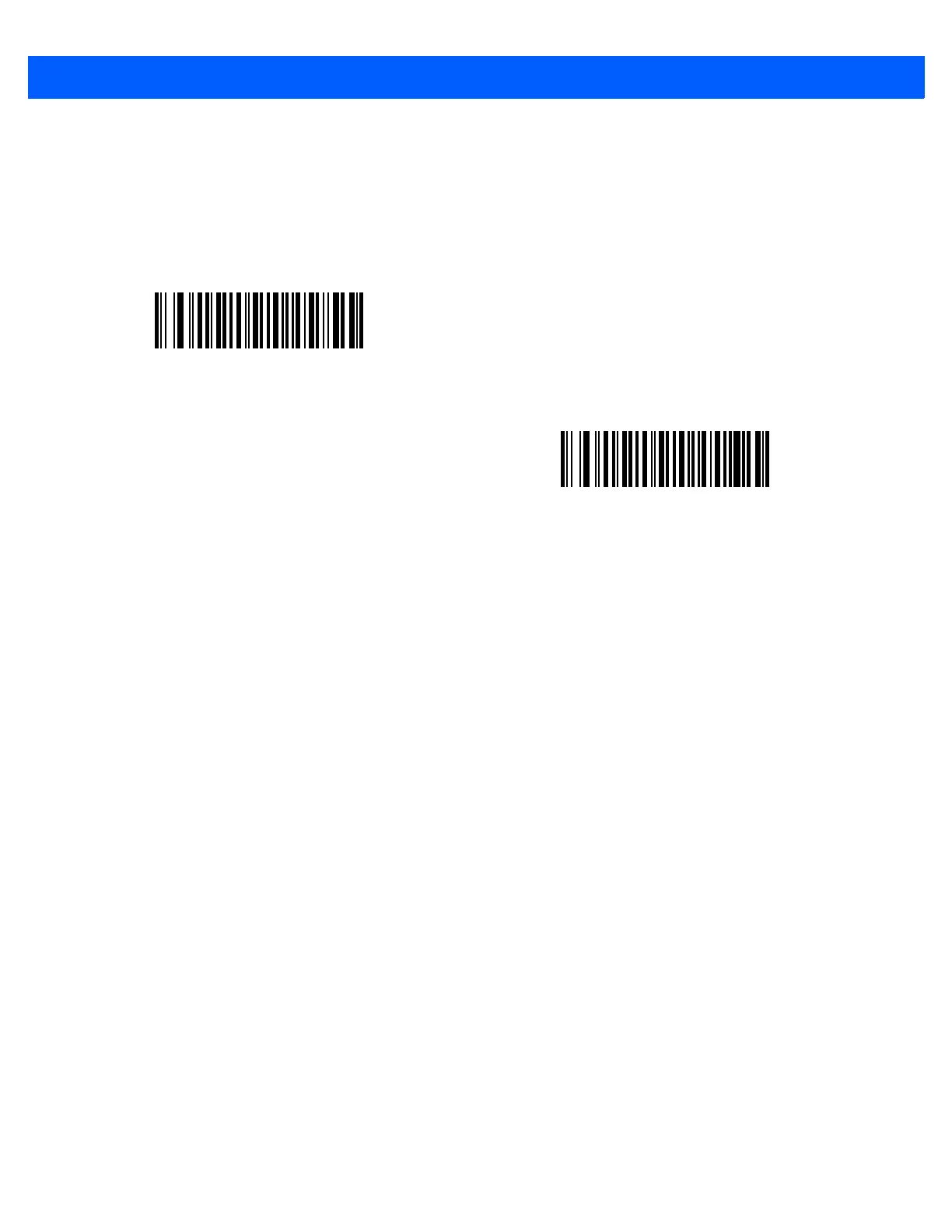

Two algorithms are possible for the verification of the second MSI check digit. Select the bar code below

corresponding to the algorithm used to encode the check digit.

MOD 10/MOD 11

(0)

*MOD 10/MOD 10

(1)
