Symbologies 11 - 29

Enable/Disable GS1-128 (formerly UCC/EAN-128)

Parameter # 14 (SSI # 0Eh)

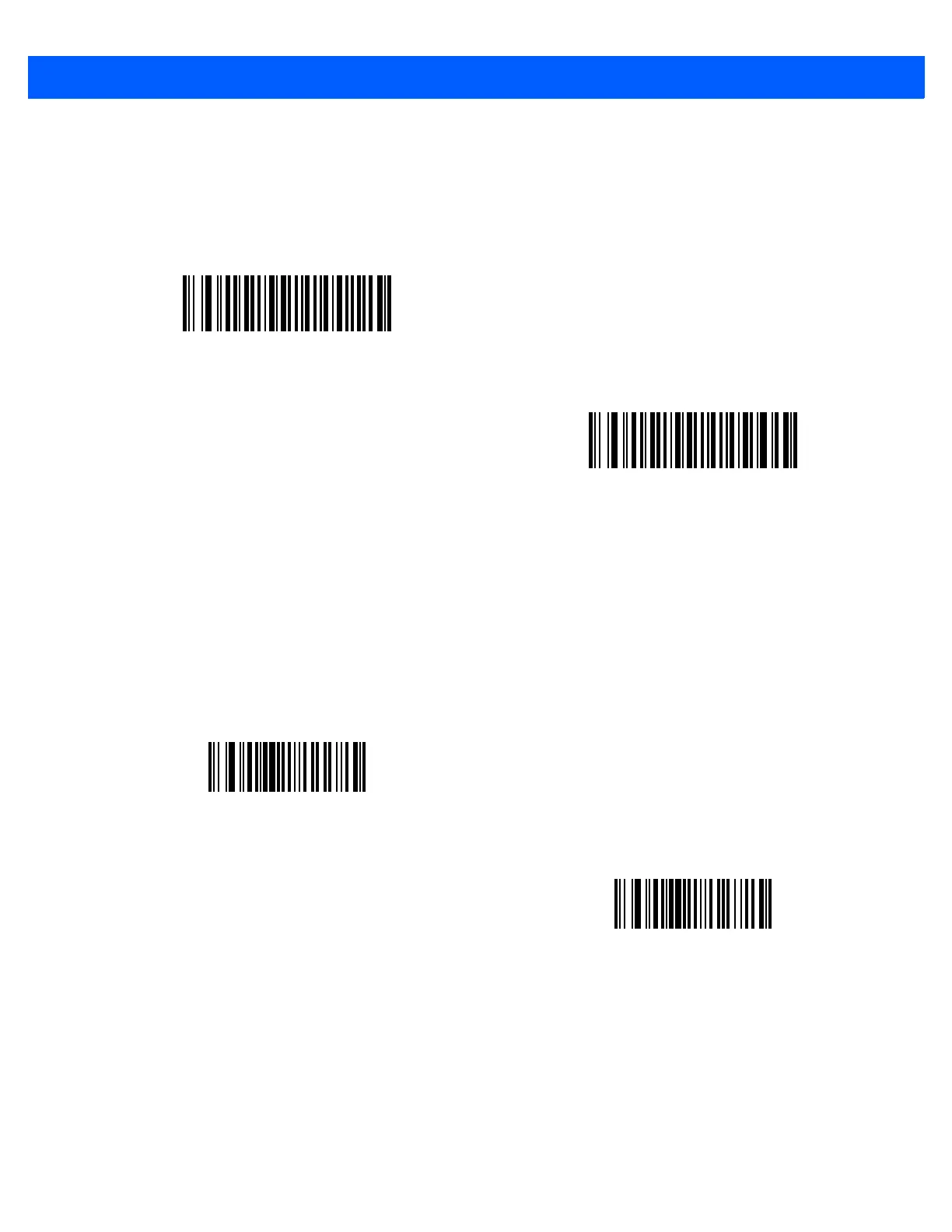

To enable or disable GS1-128, scan the appropriate bar code below.

Enable/Disable ISBT 128

Parameter # 84 (SSI # 54h)

ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a bar code below to enable or disable

ISBT 128. If necessary, the host must perform concatenation of the ISBT data.

*Enable GS1-128

(1)

Disable GS1-128

(0)

*Enable ISBT 128

(1)

Disable ISBT 128

(0)
