Zebra DS4308 Product Reference Guide

Intelligent Document Capture 12 - 19
Linked Mode Demo
Set IDC Operating Mode to Linked.
The examples from Free-Form mode also work in Linked mode except that the last one (with the bar code
covered) does not decode the bar code or capture an image.
What this demonstrates:
The Intelligent Document Capture Linked mode captures an image whose size and position are
determined by a rectangular border on the page. The IDC firmware requires that a bar code is present in
order to capture an image, decodes it, and uses it to adjust the image to the upright orientation
Other Suggestions
Hold the decoder at an angle (up/down or side to side) to the page instead of perpendicular to it. The IDC
firmware de-skews and adjusts the brightness (enabled by default) to produce a quality image when the
decoder is held at less than ideal conditions.

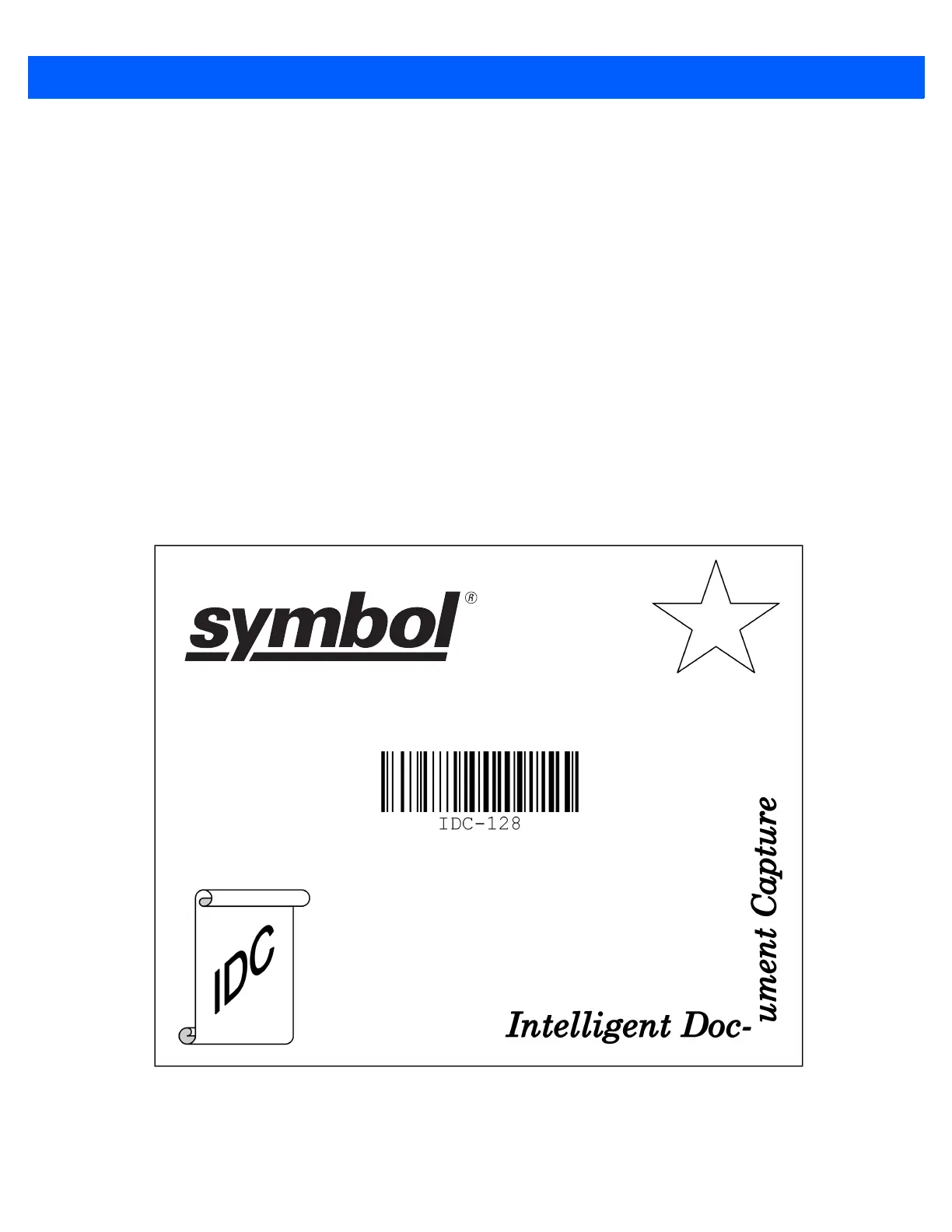

Quick Start Form
Figure 12-1 Quick Start Form

Zebra DS4308 Specifications

General

Brand	Zebra
Model	DS4308
Category	Barcode Reader
Language	English
